Product Details
| Place of Origin: | Shanghai, China | Brand Name: | LUHENG | Model Number: | JDC-1 |
Product Description

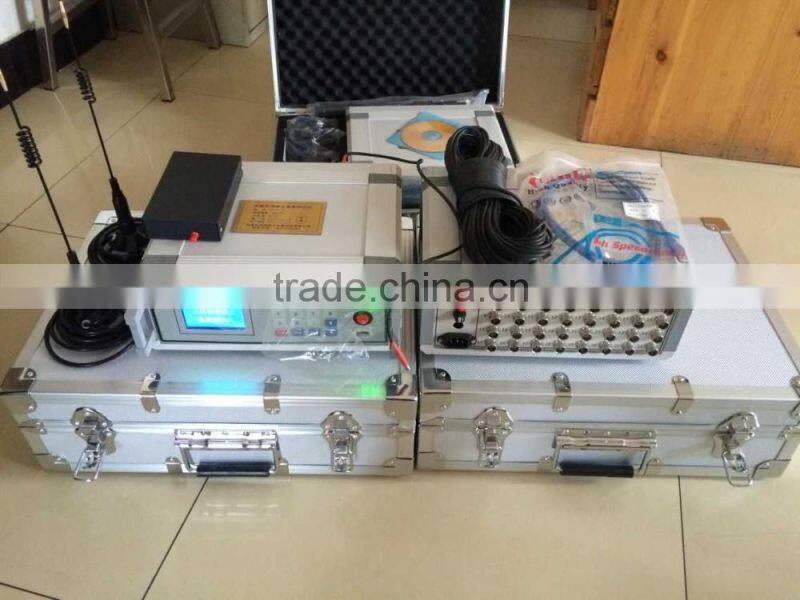

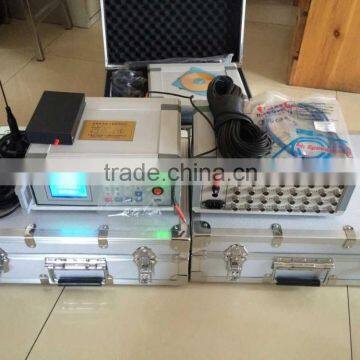

Mass Concrete Wireless Temperature Monitoring System Model JDC-1
This equipment is used to monitor the mass concrete temperature in real time. Wireless communication enable long distance real time monitor, one equipment can connect with up to 32 thermo sensors in a same time. One computer can connect with up to 10sets equipments in a same time, thus can monitor 320 units temperature data in a same time.
Technical specifications:
| Temperature measuring range | -50℃-120℃ |
| Operation ambient temperature | 20-60℃ |
| Temperature measuring channel number | 32 |
| Sensor cable max length | 50m |
| Power supply | AC 220v, 50Hz, spare power DC 5V |
| Communication mode | Wireless LAN communication |
| Monitoring frequency | 1-99min, free set |
| Temperature accuracy | 0.5 |
| Wireless communication distance | 2km-8km |
Standard Configuration
1.Wireless monitoring Main machine
2.Transmitter
3.Receiver
4.Thermo-couple wire sensor
5.English application software
puter(self-contained)
Mass Concrete Wireless Temperature Monitoring System / Concrete Thermometer / Beton Temperature Meter / Concrete Temperature Detector / Concrete Test Apparatus / Concrete Tester
1.Outside packeg: Wooden case
2.Inside package: strength film and foams
