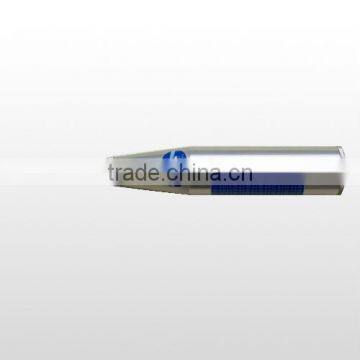

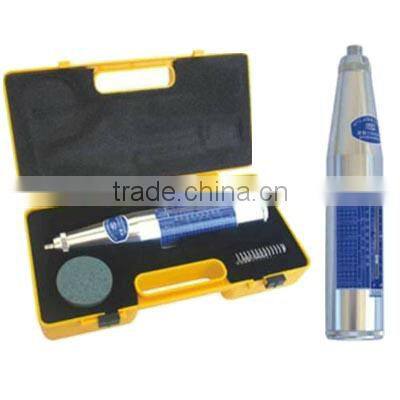

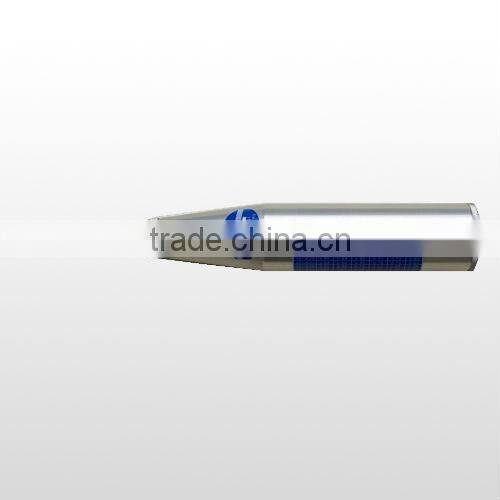

Concrete Test Hammer/Concrete Resiliometer
US$ 1 - 100
MOQ: 10 Sets
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
LH
Model Number:
ZC3-A
Payment & Shipping
Payment Methods:
Port of Shipment:
any port in China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Strength Resiliometer/ Concrete Test HammerUS$ 1 - 200MOQ: 50 Sets -
Slump Cone Test Sets(stainless Steel)US$ 50 - 200MOQ: 50 Sets
-
Plastic Slump ConeNegotiableMOQ: 1 Unit
-
Digital Concrete Vibro Consistometer(VeBe Consistometer)US$ 200 - 400MOQ: 1 Set
-
Concrete Compaction Factor Test ApparatusUS$ 100 - 200MOQ: 1 Set
Place of Origin
Shanghai, China
Brand Name
LH
Model Number
ZC3-A
Power
Electronic
Usage
Other, concrete test hammer
Specifications
Concrete Test Hammer is used for detecting the concrete compressive strength within the range of 10-60Mpa.
ZC3-A Concrete Test Hammer
Summary:
The meter is in accordance with technical regulation of JGJ/T23-2001,used for testing of concrete compressive strengthwithin the scope of 10-60Mpa,with the system standard energy of 2.207J,and value indicating system of pointer direct reading.Supervises the manufacturing process.
Characteristics:
Light (save 2/3 of labor compared with similar products), flexible, cheap, without power supply, easy to master, buttons difficult to fall off due to pulling process, pointer convenient for adjusting friction force, the first choice of instrument suitable for on-site nondestructive testing.
Main Technical Parameters:
Length of pointer: 20.0±0.2(mm)
Friction force of pointer: 0.65±0.15(N)
Spherical radius of bounce rod end: 25±1.0(mm)
Stiffness of bounce tension spring: 785.0±40.0(N/m)
Decoupling position of bounce hammer: “100” on scale line
Working length of bounce tension spring: 61.5.0±0.3(mm)
Impact length of bounce hammer: 75±0.3
Takeoff position of bounce hammer: “0” on graduated scale
Fixed value of steel anvil: 80±2 (80-81 for our delivery products)
Stable performance, best price, good quality , good after-sales service
Usage field: Concrete Testing Machine
Product name: ZC3-A Concrete Test Hammer, China test hammer
