Specifications
Wax penetrometer1. Measuring range:(0~600) penetration
2. Resolution: 0.01mm

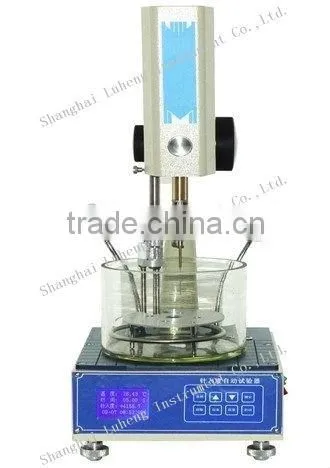

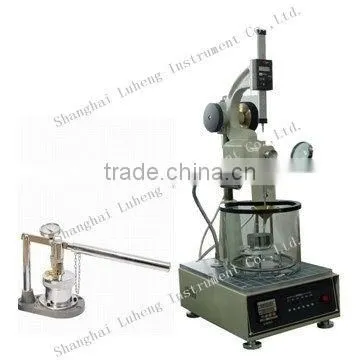

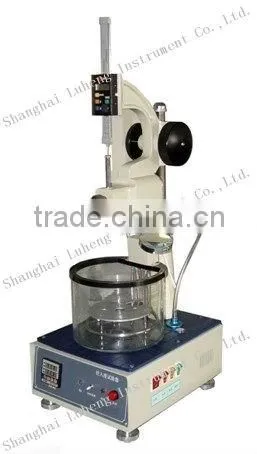

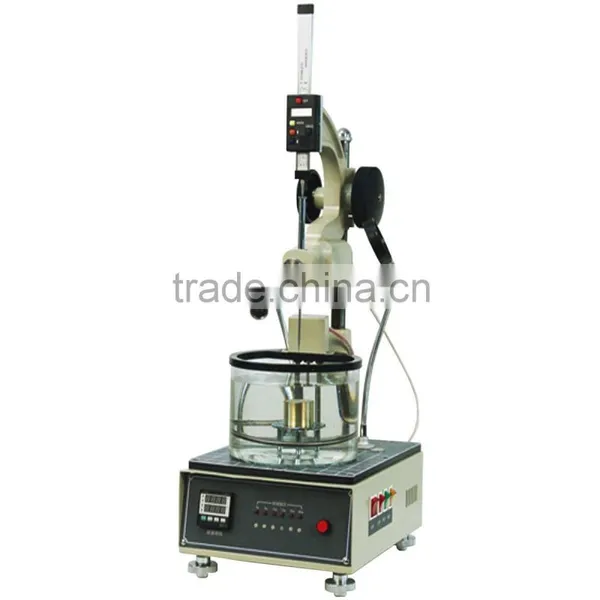

Wax Penetration Apparatus Model: SLH -2801G
Summary
This instrument is designed and made as per GB/T 4985-2010 Standard Penetration Test for Petroleum Waxes. It is used to determine the penetration of petroleum waxes. It can also be used to determine solid fine particle, powder, colloid and raw-food materials such as cheese, glycine, butter, cream and leavening. It can be widely used in food industry, highway engineering and other industrial fields.
I. Main technical features
1. It adopts digital display to show penetration value. Easy to observe.
2. It adopts 6 grades of timing control. Operator can choose it according to requirement.
3. It has functions for both coarse and fine adjustment to make needle penetrate into sample accurately.
II. Main technical specifications
1. Measuring range: (0~600) penetration
2. Timing control: 5s, 8s, 10s, 12s, 30s, 60s can be selected. The bias is within ±0.1s.
3. Resolution: 0.01mm
4. Penetration precision: ±1 penetration
5. Heating power: 200W
6. Temperature control precision: (25±0.1) degrees Celsius(Note:ambient temperature shall not over 20degrees Celsius)
7. Temperature control mode: High accuracy digital temperature controller
8. Constant temperature bath: Hard glass bath
9. Stirring: Automatically stirred by magnetic stirrer
10.Standard needle: (2.5±0.05)g
11.Needle holder: It can be adjusted roughly and finely without measurable frication to make the needle aim the sample conveniently.
12.Power supply: AC(220±10%)V,50Hz,maximum power ≤300W
13.Dimension: 280mm×350mm×700mm
14.Others: Equipped with cold light source. Easy to operate
III. Optional accessories
1. Grease worker: Used to determine lubricating grease(Or petrolatum)
2. Other cones: 1/2 scale cone,1/4 scale cone
3. Sample cup: Cup for lubricating grease
Asphalt Penetration Apparatus / Bitumen Needle Penetration Test Device / Asphalt Penetrometer / Asphalt Tester / Bitumen Test Appratus / Asphalt Tester
SLH-2801C penetrometer
SLH-2801E Asphalt/ Bitumen penetrometer
SLH-2801E1 Asphalt/ Bitumen penetrometer
SLH-2801F Low-Temperature Asphalt/ Bitumen penetrometer
SLH-2801I Automatic Asphalt/ Bitumen penetrometer
SLH-2801G Penetrometer (for paraffin xax)
