25 Tons 50m3 Propane, LPG Gas Tank Trailer
- 300 Unit / Units per Month
- Shanghai Shandong any ports in China we can provide CIF service too
- T/T
You May Like
-
mini Lpg filling truck, lpg loading tanker truck manufacturer
-
lpg gas truck trailer tank,high capacity lpg tank trailer
-
liquid gas trailer tanker,3 axle lpg propane tank semi trailer,lpg semi trailer cylinder
-
gas powered truck,lpg gas vehicles,propane semi trailers trucks
-
100000 l lpg storage tank,100cbm lpg tank,100m3 lpg storage tank
-
25m3 lpg storage tank,40m3 lpg tanks,45m3 lpg tank
Product Details
Condition | New | Place of Origin | Hubei, China | |
Brand Name | CLW | Model Number | CLW9043X*** | |
Dimension(L*W*H) | 13000*2500*3970 mm | Capacity | 50m3, 60m3, 40m3, etc. | |
Weight | 15430 kg | After-sales Service Provided | Overseas third-party support available |
Product Description
Character of our 25 Tons 50m3 Propane, LPG Gas Tank Trailer
1). volume of our 25 Tons 50m3 Propane, LPG Gas Tank Trailer: 58.5 m3, 58.5 cubic meters, 13000 gallons, 58500 liters.
2). filling rito for 25 Tons 50m3 Propane, LPG Gas Tank Trailer: 420 kg/m3
3). capacity of 25 Tons 50m3 Propane, LPG Gas Tank Trailer: 24.5 tons
4). equipped with liquid Indicator, safety valve
5). we have our own manufacturing plant to ensure the quality and production period of trucks.
6). advanced technology in the pressure vessel field.
7). configuration: manny optional parts as your requierments
8). we just be awarded the "Top 500 of Chinese Manufacturing",we can ensure the quality and safety of our products. You are also welcomed to give a visit to our manufacturing plant at Suizhou, Hubei if possible.
Specification of the 25 Tons 50m3 Propane, LPG Gas Tank Trailer
Tank Data | G.V.W | 40000 kg |
Curb weight | 15430 kg | |
Loading weight | 24520 kg | |
Volume | 58.5 m3, 12870 gallons | |
Designing pressure | 1.77 Mpa | |
Working pressure | 1.61 Mpa | |
Designing temperature | -19oC~50oC | |
Stowage | LPG (propane) | |
Corrosion margin | 1.0 mm | |
Materials | Q345R, Q370R,16MnⅢ | |
Hydraulic test pressure | 2.22 Mpa | |
Gas tight test pressure | 1.77 Mpa | |
Cylinder thickness | 12 mm | |
Vessel type | Ⅲ | |
Service life | 10 year | |
Basic Data | Overall dimension (mm) | 13000*2500*3970 |
Wheel base (mm) | 7092+1310+1310 | |
Spring number | -/7/7/7 | |
Axles number | 3 pcs 13 tons BPW or FUWA | |
Tire specification | 12.00R22.5, 11.00R20 | |
Tire number | 12 | |
ABS type (optional) | CMFKX | |
Landing gear leg | JOST | |
Standard | GB150-1998 ”Pressure Vessels” “Safety Regulation of Pressure Vessel” | |
Production period | 25~30 days |

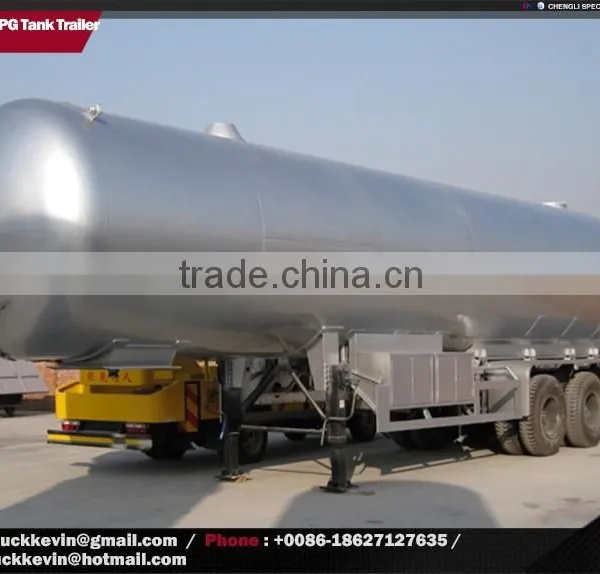

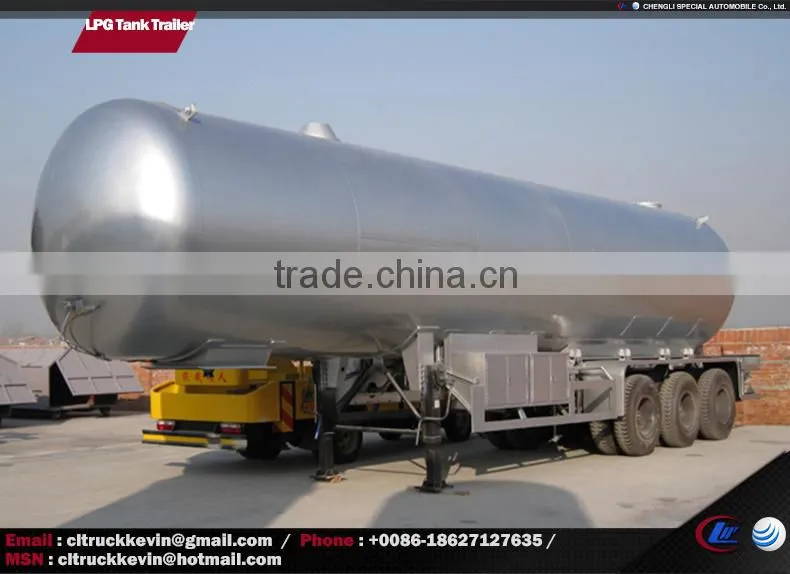

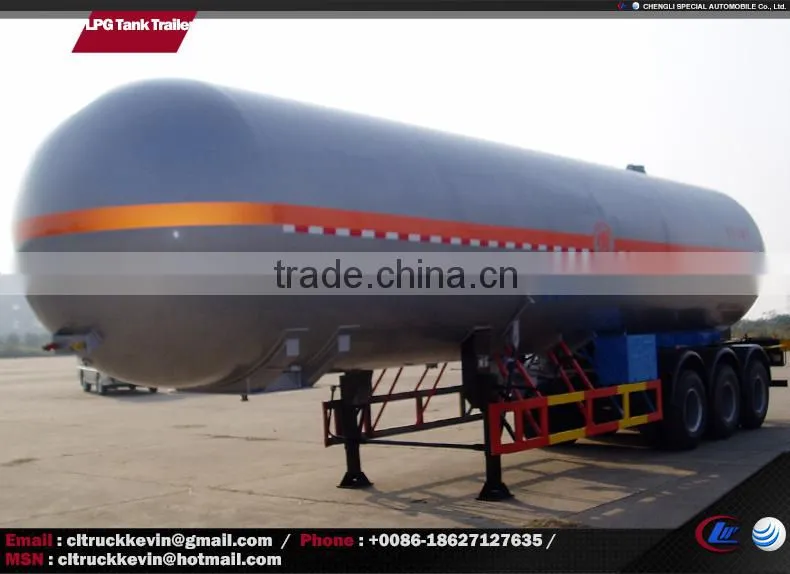

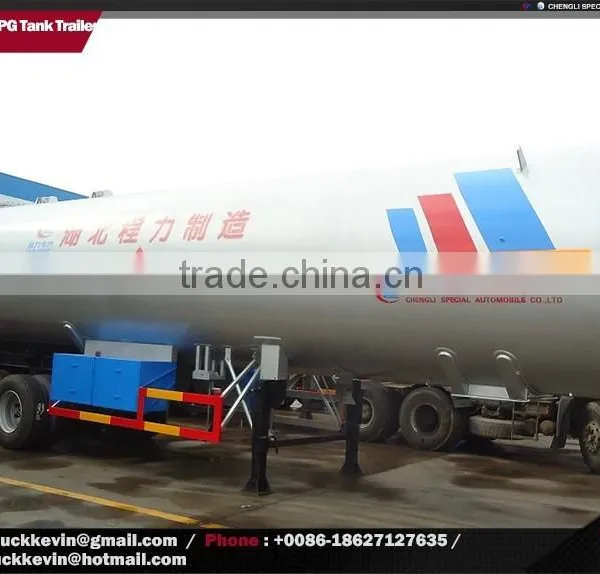

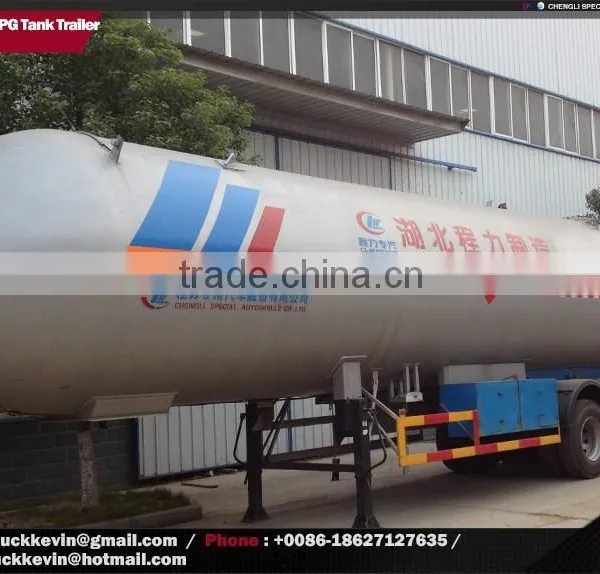

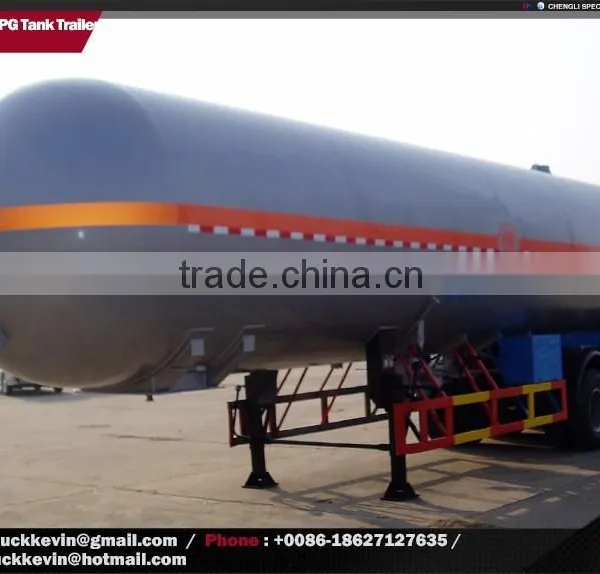

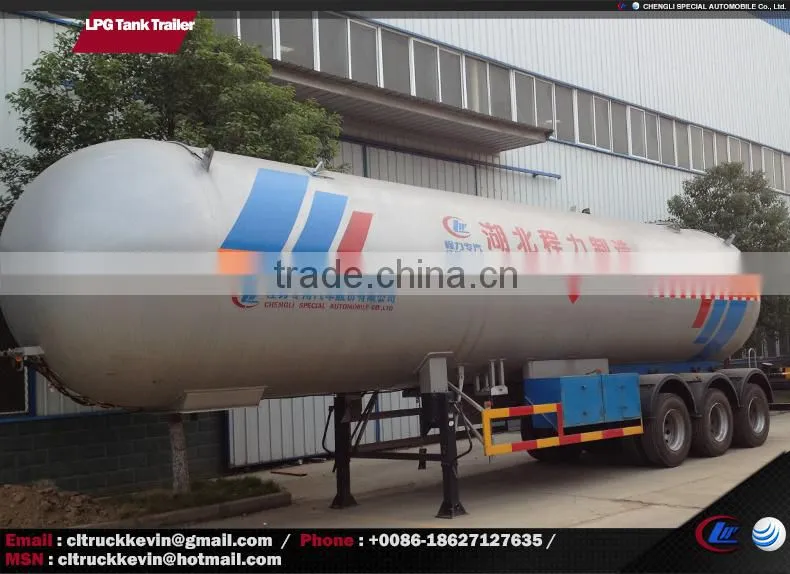

Here are some reference photos of 25 Tons 50m3 Propane, LPG Gas Tank Trailer:
Special Purpose of 25 Tons 50m3 Propane, LPG Gas Tank Trailer
LPG tank truck,also called LPG transportation truck, gas tank truck.Our company put full energy in producing various LPG container, LPG tank, LPG truck and LPG transformer.LPG transportation is high risk work, in order to keep the safety of LPG truck usage,we put our full energy to controll the quality strictly. As chinese well-known LPG equipment manufacturer and LPG equipment supplier, we can provide for more LPG tank technical specification and spare part service. PLS contact with us for more LPG truck,LPG tank price and pictures.
Our Service of 25 Tons 50m3 Propane, LPG Gas Tank Trailer
1. Factory Supply:
a. One of the biggest special purpose automobile manufacturers in China.
b. More than 300 kinds of special truck for your demands.
2. OEM Ability: We can produce according to your requirements, the material, size, color or logo are optional for you, they can be customized.
3. Good Quality:
a. We have solid technology, advanced equipments; reliant quality and flexible modes of operation also have strict quality control system.
b. We have passed the ISO9001-2008 and the CCC (China Compulsory Certification),
c. Our brand is china famous brand with good reputation in the market.
4. Good Service: 24-hour hotline and email.
5. Fast Delivery: 1-10 days after payment, safe and quick delivery.
Packing details & Transportation of 25 Tons 50m3 Propane, LPG Gas Tank Trailer
Packing details and transportation methods for 25 Tons 50m3 Propane, LPG Gas Tank Trailer:
standard and nude,
bulk ship and ro-ro ship,
we can do the waxing work for 25 Tons 50m3 Propane, LPG Gas Tank Trailer, in cae of the seawater or weathr damage during transportation.
Our factory information:
Hubei Chengli Special Automobile Co., Ltd., which is appointed by the Development and Reform Commission of China, is a professional manufacturer of special automobiles for landscaping, petrochemical, and environment cleanness.
Hubei Chengli Special Automobile is willing to serve for you, and is looking forward to your coming to visit our company.
Our Factory Supply Main Products:
1. Water Tanker Truck
2. Fuel Tanker Truck and Trailer.
3. Refrigerator Truck and Trailer.
4. Crane Mounted Truck.
5. LPG Tanker Truck and Trailer.
6. Chemical Tanker Truck and Trailer.
7. Garbage Truck.
8. Wrecker Truck.
9. Fire Truck.
10. Dump Truck.
11. Tractor Truck for Trailer USE.
12. Tanker, cargo box, flat-bed type Trailer.
13. Aerial working platform truck.
14. Asphalt/ bitumen synchronous chip sealer Truck
15. Bitumen Sprayer Truck.
16. Bulk Cement Tanker and Trailer.
....
