Product Details
Type: | Semi-Trailer | Material: | Steel | Certification: | Other, CCC, ISO |
Size: | 12515*2500*3951 | OEM No.: | 5626545 | Max Payload: | 25000 |
Place of Origin: | Hubei, China | Brand Name: | CLW | Model Number: | CLW |
Product Description

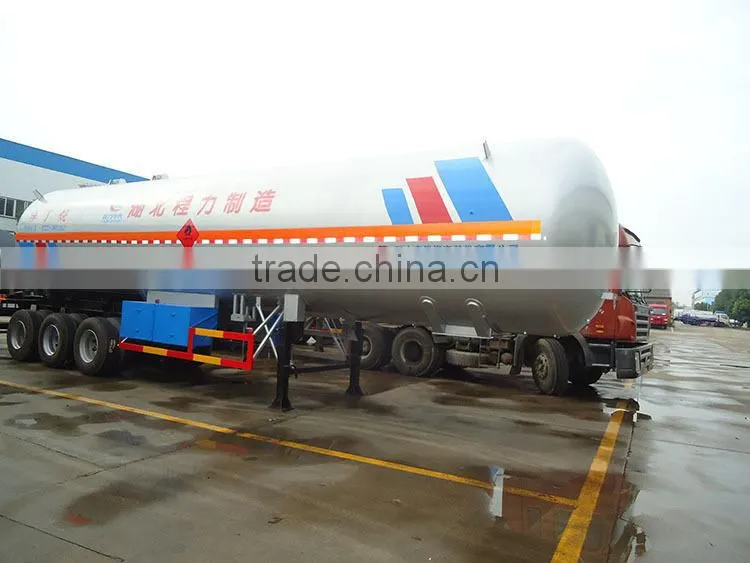

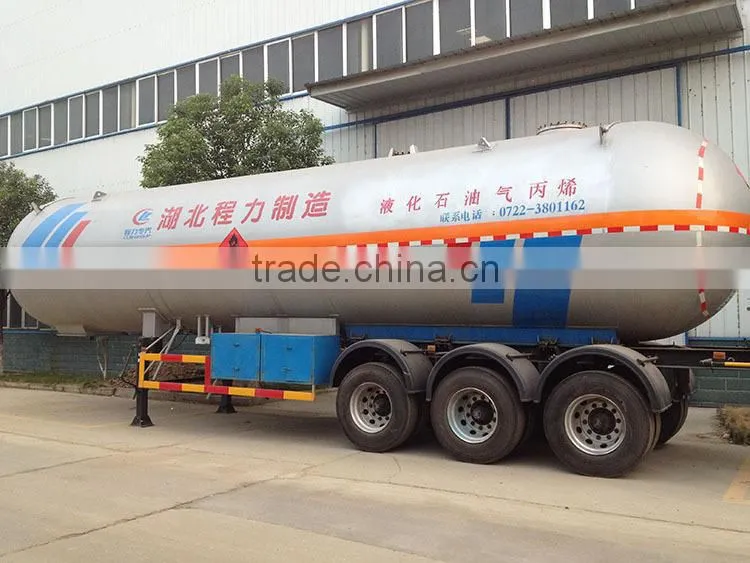

liquid gas trailer tanker,3 axle lpg propane tank semi trailer,lpg semi trailer cylinder
LPG,liquid pressure gas,which is made from oil.The main gas is propane,Isobutane.
Currently our company produce the lpg tank, lpg tank trailer,lpg tank truck to loading and transporting.
The LPG tank volume from 5~120 m3 for above ground, 5~100 m3 for underground.
The LPG tank trailer volume from 30~60 m3 with two axles or three axles.
The LPG tank truck with the volume from 5~35 m3.
As the production standard, Currently we mainly produce it according to the Chinese GB150.
However, we also could produce it according to the ASME standard.
liquid gas trailer tanker,3 axle lpg propane tank semi trailer,lpg semi trailer cylinder
Item | Unit | Parameter | ||||||||
Model | CLW9408GYQ~ Propane Gas | |||||||||
Volume | m3 | 56 cubic meter | ||||||||
Dimension | mm | 12515*2500*3951 | ||||||||
Tank dimension | mm | 12850*2396 | ||||||||
Curb Weight | Kg | 16480 | ||||||||
Axle Number | Unit | 3 Units | ||||||||
13 ton BPW Axles, | ||||||||||
Wheel Base | mm | 6880+1310+1311 | ||||||||
Tire / Number | Units | 12.00 R20 / 13 Units | ||||||||
Spring plate | Units | -7/7/7 | ||||||||
Saddle | 90# | |||||||||
Tank Material | mm | 16mm thick Q345R Or 370R | ||||||||
Designed Pressure | Pa | 1.77 Mpa | Designed Temperature | ~19~50 ℃ | ||||||
Corrosion | mm | 1mm | Loading parameter | 0.42 T/m3 | ||||||
Remark: | Equipment with Safety Valve, Liquid gage, Pressure gage, Temperature gage, Urgent cut off valve, Valve box, Fire extinguisher, plastic pipe of staticproof, Well-secured fenders and mudguards, Tire well-secured, fenders and mudguards. Tool box for two side. | |||||||||
Manufacturer Standard | China GB150-1998 Pressure vessel , Pressure vessel safety supervise law. | |||||||||
liquid gas trailer tanker,3 axle lpg propane tank semi trailer,lpg semi trailer cylinder
Chinese Standard manufactuere. photos showing of accessories.
More photo showing about our products and device.
