Specifications
1.ISO 9001 Certificate2.Speed:6-9pcs/min
3.Method:press & sieve
4.Power:18KW;Pressure:128T
5.Hydraulic & PLC Auto control

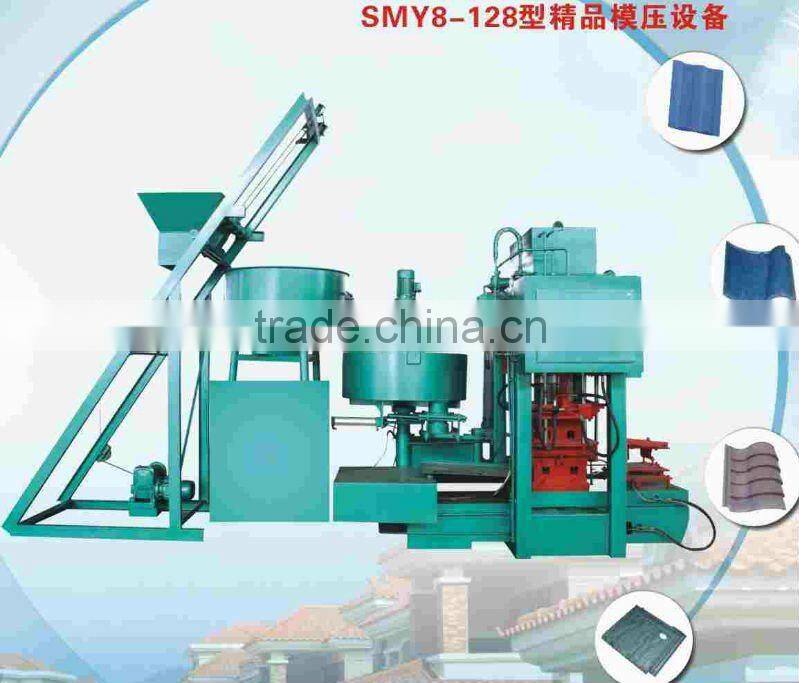

new cylinder shape mould pressing shaping machine
1. The new cylinder shape mould pressing shaping machine has many advantages such as: speedy in shapinglarge outputreliable. Adopts PLC (MITSUBISHI Tech), control automatically, full hydraulic & air operated, its producing speed can be 6-9 pcs/min, high yield, high cost performance.
2. Using semi-circle rail under its slide, which is more stable & abrasion proof than square types. Tetrastyle unity guides its main oil cylinder & mould; this makes the equipment more stable, and, increases its lifetime.
3. After shaping from the filter-press mould, its productions get artistic in structure, various in kind, high density, hard intensity, the exact size, etc. Fit for various buildings, and it is the competitive product in the field of concrete products.
4. One machine serves several purposes. Can produce various of main tiles & other matched ones through the way of changing its mould.
5. Its special film of the supporting plate designed by our company makes the cleaning & oiling work unneeded. It has been applied for a patent. Patent Number: ZL200820085797·X
Technical Parameter
Technical parameter | SMY8-128 |
Production capacity | 6-9 pieces / min |
Annual production capacity | 1,200,000pieces(based on 8 hours) |
Factory Area | 150 square meters |
Maintenance area | 60 square meters |
Total installed capacity | 18KW |
Manpower quota | 4 persons / class |
Product specification | 424×337mm2 |
Basic Scheme
No. | Name | Quantity | Unit |
1 | Forming host | 1 | set |
2 | Mixing System | 1 | set |
3 | Main mould of the tile | 1 | set |
4 | The pallet of the tile | 2000 | piece |
5 | Circle Ridge Pallet | 50 | piece |
6 | Cornices Pallet | 30 | piece |
7 | Circular ridge Manufacturing Machine | 1 | set |
8 | Eaves tile manufacturing machine | 1 | set |
9 | Drain tile mold | 10 | piece |
10 | TY Three-round ridge | Each1 | piece |
11 | Oblique ridge seal | 1 | piece |
12 | Circular ridge seal | 1 | piece |
13 | Cornice seal | 1 | piece |
14 | Four-way mode | 1 | piece |
15 | plastic diaphragm rupport plate | 2000 | piece |
