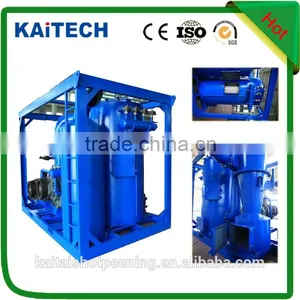

Suction used sand sucker suction sand machine

Kaitai Brand advantage

Each set of vacuum sand system researched and designed by Shandong kaitai is made of suction tool, suction hose, bunker,vacuum pump,motor of main components.The system, equipped with electric cabinet, has strong Structure and a strongmaintenance door, including the back pulse cleaning system (equipped a safety valve and automatic order filtering unit), motor chamber (accommodated motor and the vacuum pump with complete sets of exhaust muffler).

Shandong kaitai series vacuum sand equipment includes a variety of units to suit all applications. Maximum power unit is 120 kW, but small unit can also choose 7.5 kW.Shandong kaitai sand vacuum system is designed to meet current environmental regulations. Vacuum sand vacuum systemcan clear any remaining dust and abrasive particles from the workpiece surface, achieving the high specification of the international standard for surface treatment.

VR series vacuum sand machine introduction:

Conventional abrasive recycling method is expensive and timeconsuming. Vacuum suction sand machine is one of the most efficient and most economical and most effective cleaning method. The design of this device has the characteristics such as small structure, easy operation, easy maintenance, high efficiency,which can full-quality complete the task.

Main functions:

Recovery of abrasives in the cabin, oil tank, or dry ground saved in the process of sand blasting and abrasives used for cleaning and hull section in the complex artifacts.

Design principle:

 Based on the pneumatic conveying system, which uses high speed air flowing, sand suction tube with wear-resisting will convey abrasive from the workplace to the reservoir sand bucket, with easy recycling.

Product features:

1) Compared with system cleaning method, it has higher productivity.
2) As there is no mechanical moving on the abrasive recycling line, it reduces the failure rate.
3) Processed surface can come into the spray process in a timely manner.

Using Process:

Abvr series vacuum recovery system is designed to recover spent dry recyclable abrasive from a blasting
Area into a silo for subsequent return to the blast cleaning equippment or in the case of expendable abrasives,for disposal into a waste hopper.
After depositing the abrasive into the silo,the vacuum flow containing air and dust continues on to the suction unit,where the dust particles in this stream are removed by high performance filter cartridges prior to exhausting sir to atomsphere.
The VRS is of strong construction with sturdy maintenance access doors and contains the filter section fittered wit safety relief value and automize sequenced reverse pulsejet and filter cleaning machine system,motor compartment housing an electric drive motor and a vacuum pump compelet with exhaust silencer.this unit is also fitter with an electrics control panel.
The vrs id designed to meet present and proposed environmental dust emission.
