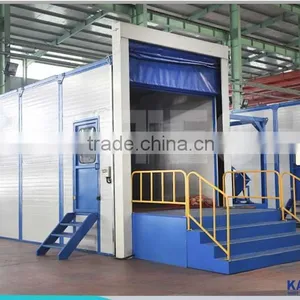

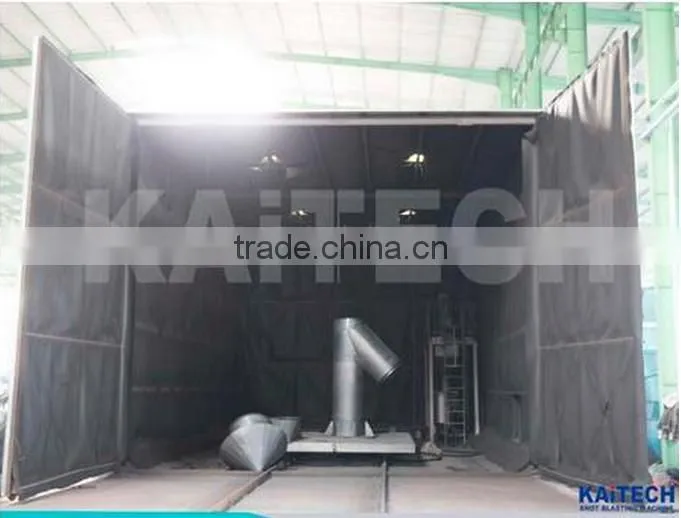

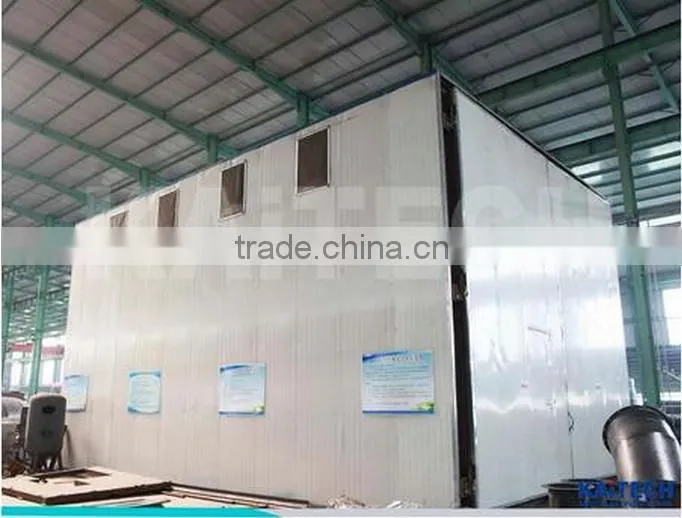

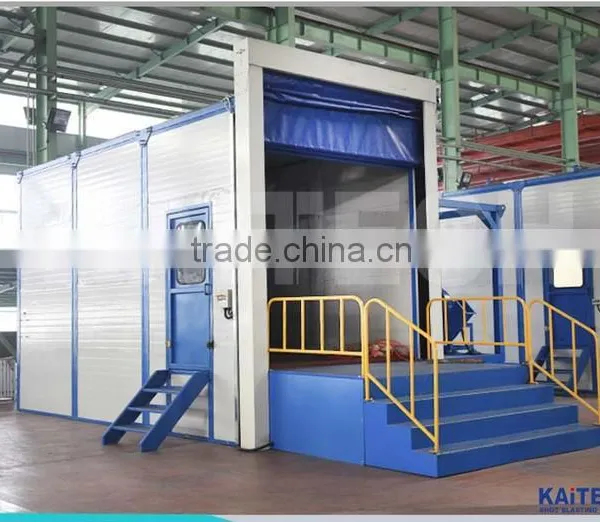

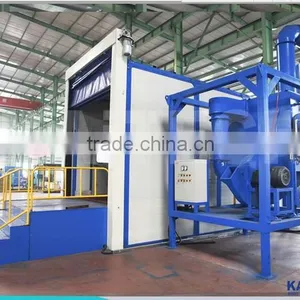

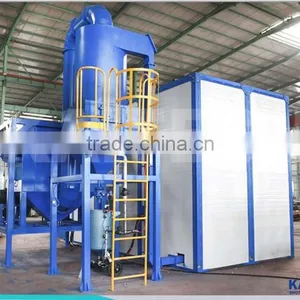

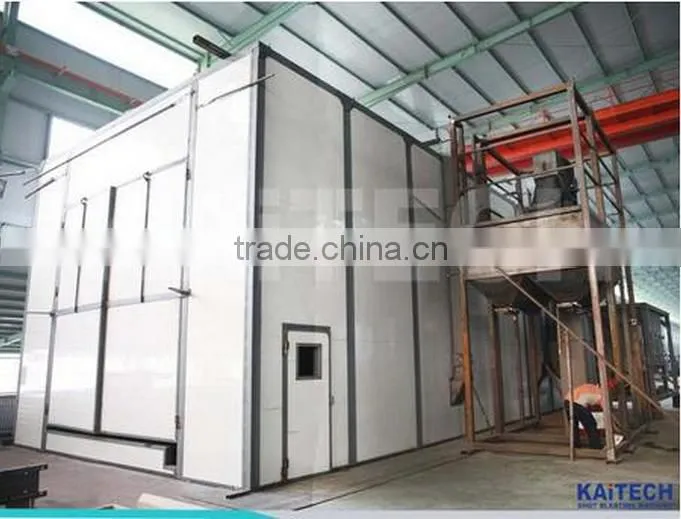

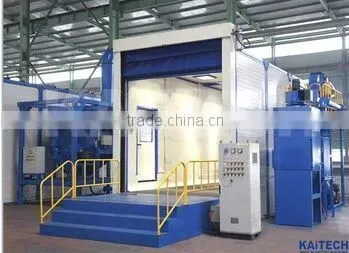

High automatic sand blast room

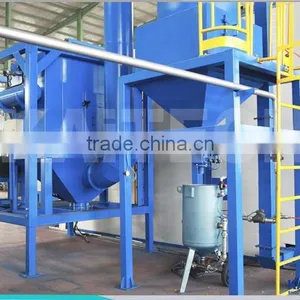

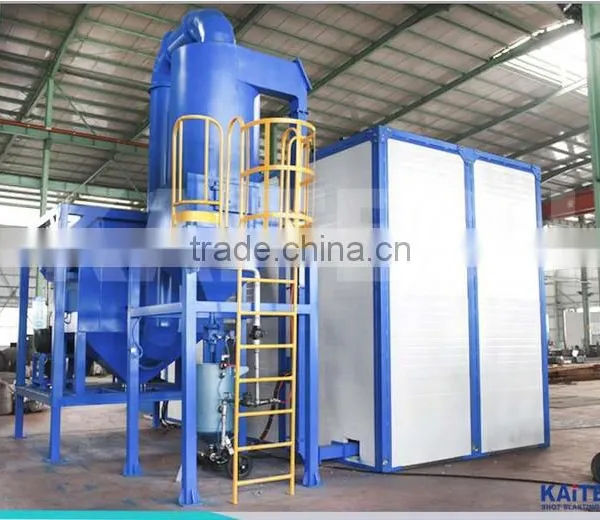

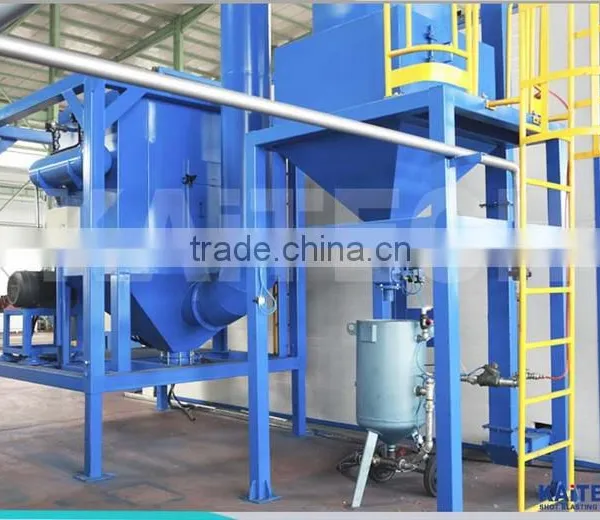

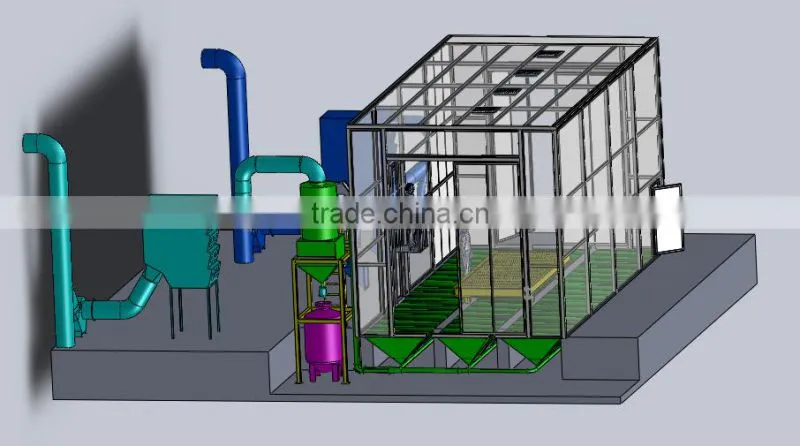

1.Blast Room with Recovery System & Ventilation Dust Collector
- Belt conveyor + Bucket Elevator + Air wash type separator
- Scrap + Belt Conveyor + Bucket Elevator + Air wash type separator
- Screw conveyor + Bucket Elevator + Air wash type separator
2.Performance
- The mechanic recovery blasting room adopts mechanic recovery system to recovery abrasives and the abrasives can be chosen according to requirements. The abrasive usage is high and process productivity is also high.
- The dust removing system adopts two stages dust removing, and the dust removing efficiency can reaches 99.99%.
- The air flow in ventilation in this kind of blasting room can be adjustable to prevent the abrasives from entering cartridge filters. Thus it can reduce the lost of abrasives and can have a good dust removing efficiency.
- The main electrical elements in this blasting room uses Japan/EU/USA brand. They have the advantages of reliability, safety, long life service and easy maintenances.
- Use widely: It applies to middle and small size of blasting room to do pretreatment jobs such as rough, casting, welding, heating, steel structure, container, transformer shell, special parts and so on.
3. Mechanic recovery blasting room size
No. |
Model |
Size of room |
Size of jobs |
Spray gun quantity |
1 |
XDL-0606-M1 |
6000x6000x5000mm |
3000×3000×2500mm |
2 |
2 |
XDL-0606-M2 |
6000x6000x6000mm |
3000×3000×3500mm |
2 |
3 |
XDL-0806-M1 |
8000x6000x5000mm |
5000×3000×2500mm |
2 |
4 |
XDL-0806-M2 |
8000×6000×6000mm |
5000×3000×3500mm |
2 |
5 |
XDL-1006-M2 |
10000×6000×6000mm |
7000×3000×3500mm |
2 |
6 |
XDL-1506-M2 |
15000×6000×6000mm |
12000×3000×3500mm |
2 |
7 |
XDL-1508-M2 |
15000×8000×6000mm |
12000×5000×3500mm |
2 |
8 |
XDL-1808-M2 |
18000×8000×6000mm |
15000×5000×3500mm |
4 |
9 |
XDL-0806-M3 |
18000×10000×8000mm |
15000×7000×5500mm |
4 |
4.Characteristics
(1)No need deep pit,save construction cost,shot construction period
(2)Can change different types of metal abrasive,strong adaptability,meet different technology requirement
(3)Recovery efficient of metal abrasive is high
(4)Key wear parts is standard,convenient repair and replacement,to avoid heavy repair tasks.
5.Equipment spare parts
Vacuum sand suction machine converys metal abrasive into sand storages barrel through the pneumatic conveying system and using high speed air flow.In this way,metal abrasive recovery is most efficient,most economical and most effctive, besides,small structure,easy operation,easy maintenance and high efficiency.
6.Product R&D
(1)High talent to lead R&D team, 3D design of sand (shot)blasting equipment,achieve part and overall sand(shot)blasting equipment standardization.
(2)Introduce Holland Airblast professiors,absorb advanced sand(shot)blasting technology at abroad,meantime, we analysis national situation and use into order from domestic and foreign customers effiectively.

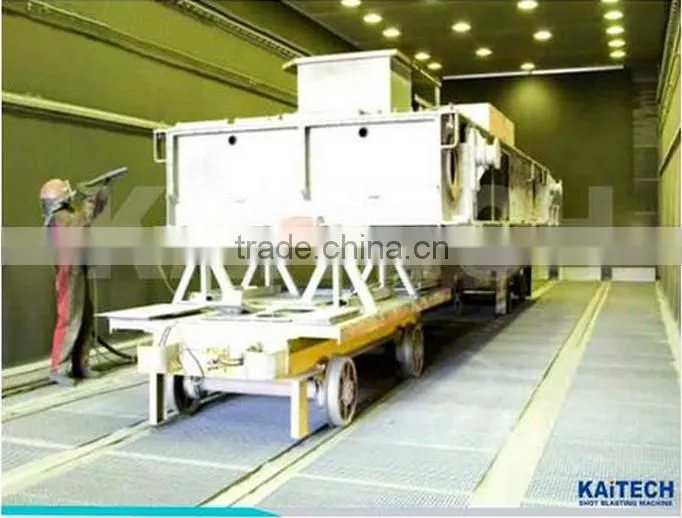

7.Sand blasting booth is a widely used pretreatment equipment,main application is as follows:shipyard,aerospace,military weapons,engineering machiney,petroleum and petrochemical,hydraulic machinery,mining machinery,electrical equipment,bridge,steel struture,railway vehicle, car,container parts,especially pretreament process for large irregular workpiece and small precision parts.
- Chamber body dust collector
- Separator
- Sand storage cabinet
- Sand suction pipe
- Blasting pot
- Honeycomb funnel floor
- Spray gun
- Safety door
- Air intake
Packaging&Shipping
Q 1: Do you have after-sale service?
A : yes, we do.
Q 2: How long can your spare parts be used?
A: Blade, control cage and distributor are high chrome, and can be used for more than 2000 hours.
Kinds of guard board can be used for more than 3000 hours.
Q 3: Where is your factory?
A: We are near Jinan Airport, you are welcome to be Jinan Airport and then we will arrange car to pick you up there. Sincerely welcome here to investigate our factory in person.
In order to give you the suitable machine , pls provide below message for us :
1. What is your workpiece and the material and the shape ?
2.The Max. Length/Width/Height of the workpiece and the MAX./MIN.weight of your workpiece ?
3.The productivity you need to blasting the workpiece ( how many T or piece per day or per month?)
4. The power supply you need( Our China :380V, 3PH, 50HZ)
5. Better to send us the workpiece photo or drawing.
PS: Any further questions, you can add our Msn:zhangqizheng2014(at) to get information online, or send us emails: export(at ) or zhangqizheng(at )
CONTACT Info:(Chinese Working Hours 6:00------22:00 )
Mr.Alvin Zhang
Tel: 0086-543-4579916
TEL:0086-15266754005
emails: export(at ) or zhangqizheng(at )
Skype:zhangqizheng2014
Whatsapp:+8613011735592
We are looking forward to doing business and making friends with you.
