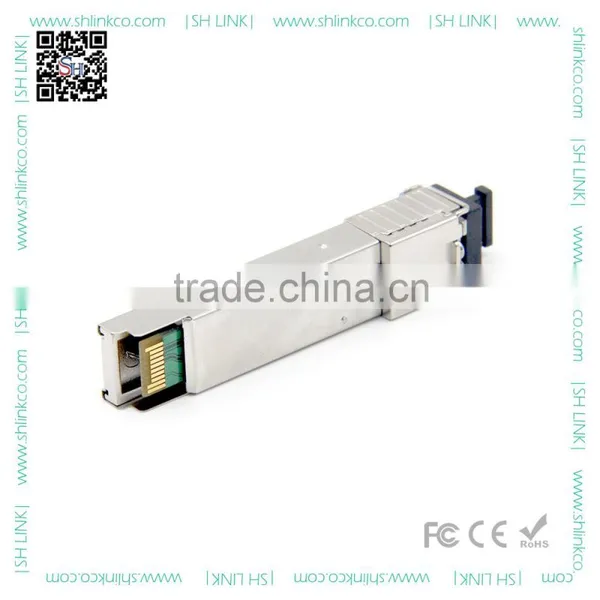

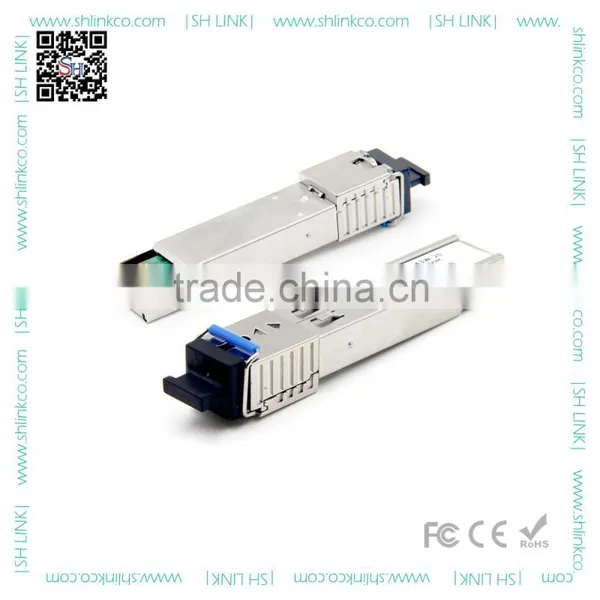

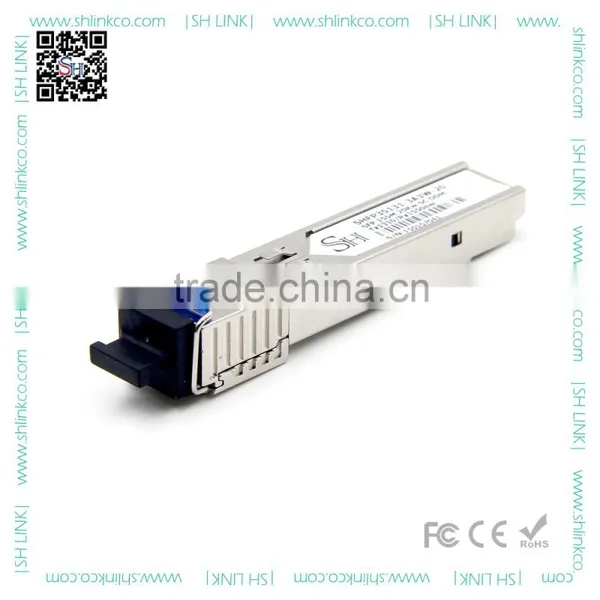

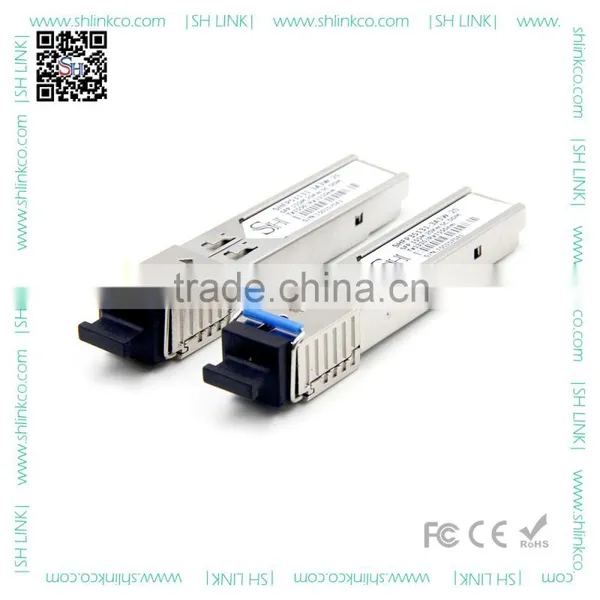

Fast ethernet single mode single core LC connector bi-directional SFP module
SHFP-FE-B20 high performance, cost-effective 155M BiDi SFP transceiver complies with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). It provides Digital diagnostics functions via a 2-wire serial interface as specified in SFF-8472. It adopts high-performance FP transmitter and high-sensitivity PIN receiver, provides up to 19dB link budge for Gigabit Ethernet applications up to 20km on a single core single mode fiber.
- Up to 155Mb/s Data Links
- Hot-Pluggable
- Simplex LC connector
- FP transmitter, PIN photo-detector
- 20km on a single core SMF
- 2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface
- Power Supply :+3.3V
- Power consumption<1W
- Temperature Range: 0~ 70°C, -40°C to 85°C/-5°C to 85°C available
- RoHS compliant
- SONET OC-3/SDH STM-1
- Fast Ethernet
- Other Optical Links
- Compatible with many switches,such as:
Part Number |
Data Rate |
Distance |
Wavelength |
Laser |
Fiber |
DDM |
Connector |
SHFP-FE-B80-35 |
155Mb/s |
80km |
TX1490nm/RX1550nm |
DFB/PIN |
SM |
Yes |
Simplex LC |
SHFP-FE-B80-53 |
155Mb/s |
80km |
TX1550nm/RX1490nm |
DFB/PIN |
SM |
Yes |
Simplex LC |
SHFP-FE-B80-35-SC |
155Mb/s |
80km |
TX1490nm/RX1550nm |
DFB/PIN |
SM |
Yes |
Simplex SC |
SHFP-FE-B80-53-SC |
155Mb/s |
80km |
TX1550nm/RX1490nm |
DFB/PIN |
SM |
Yes |
Simplex SC |
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
Note |
|
Transmitter Section: | |||||||
Center Wavelength |
SHFP-FE-B80-45 |
λc |
1470 |
1490 |
1510 |
nm |
|
SHFP-FE-B80-54 |
1530 |
1550 |
1570 |
|
|||
Spectral Width |
σ |
|
|
1 |
nm |
|
|
Sidemode Supression ratio |
SSRmin |
30 |
|
|
dB |
|
|
Optical Output Power |
Pout |
-5 |
|
0 |
dBm |
1 |
|
Optical Rise/Fall Time |
tr / tf |
|
|
2 |
ns |
2 |
|
Extinction Ratio |
ER |
10 |
|
|
dB |
|
|
Generated Jitter (peak to peak) |
JTXp-p |
|
|
0.07 |
UI |
3 |
|
Generated Jitter (rms) |
JTXrms |
|
|
0.007 |
UI |
3 |
|
Eye Mask for Optical Output |
Compliant with G.957(class 1 laser safety) |
|
|||||
Receiver Section: |
|
||||||
Optical Input Wavelength |
SHFP-FE-B80-45 |
λc |
1530 |
1550 |
1570 |
nm |
|
SHFP-FE-B80-54 |
1470 |
1490 |
1510 |
|
|||
Receiver Overload |
Pol |
-8 |
|
|
dBm |
4 |
|
RX Sensitivity |
Sen |
|
|
-34 |
dBm |
4 |
|
RX_LOS Assert |
LOS A |
-45 |
|
|
dBm |
|
|
RX_LOS De-assert |
LOS D |
|
|
-35 |
dBm |
|
|
RX_LOS Hysteresis |
LOS H |
0.5 |
|
|
dB |
|
|
General Specifications: | |||||||
Data Rate |
BR |
|
155 |
|
Mb/s |
|
|
Bit Error Rate |
BER |
|
|
10-12 |
|
|
|
Max. Supported Link Length on 9/125μm SMF@155Mb/s |
LMAX |
|
80 |
|
km |
|
|
Total System Budget |
LB |
29 |
|
|
dB |
|
|

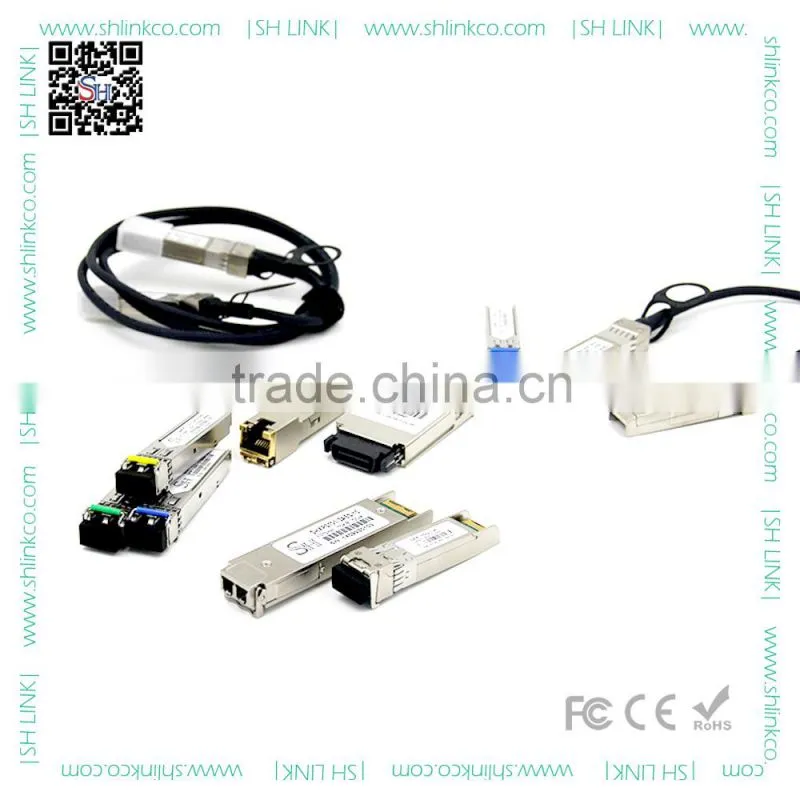

Other Optical Transceiver
