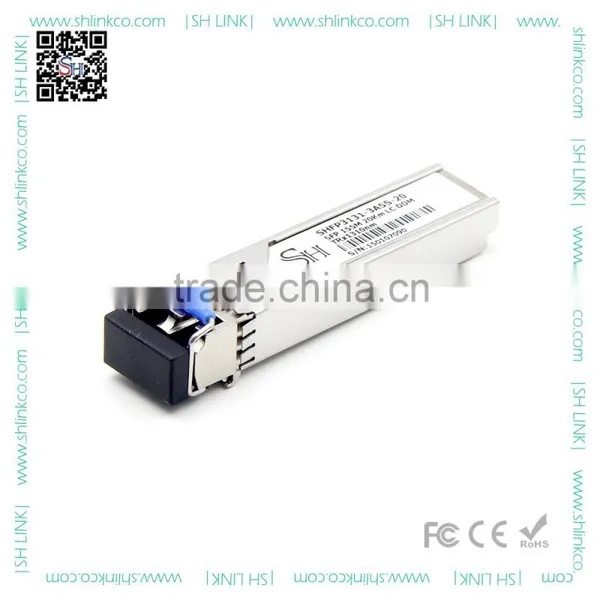

SFP-FE-LX single mode duplex LC 80km 155Mb/s SFP module factory
SHFP-FE-ZX high performance, cost effective single mode duplex lc 80km 155m sfp transceiver complies with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). It adopts high-performance 1550nm DFB transmitter and high-sensitivity PIN receiver, provides up to 29dB link budge for SONET OC-3/SDH STM-1/fast Ethernet applications up to 80km on single mode fiber.
- Up to 155Mb/s Data Links
- Hot-Pluggable
- Duplex LC connector
- 1550nm DFB transmitter, PIN photo-detector
- 80km on SMF
- 2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface
- Power Supply :+3.3V
- Power consumption<1W
- Temperature Range: 0~ 70°C, -40°C to 85°C/-5°C to 85°C available
- RoHS compliant
- SONET OC-3/SDH STM-1
- Fast Ethernet
- Other Optical Links
- compatible with many switches,such as:
Part Number |
Data Rate |
Distance |
Wavelength |
Laser |
Fiber |
DDM |
Temperature |
Connector |
SHFP-FE-ZX |
155Mb/s |
80km |
1550nm |
DFB/PIN |
SM |
Yes |
0~ 70°C |
Duplex LC |
SHFP-FE-ZX-E |
155Mb/s |
80km |
1550nm |
DFB/PIN |
SM |
Yes |
-5°C to 85°C |
Duplex LC |
SHFP-FE-ZX-I |
155Mb/s |
80km |
1550nm |
DFB/PIN |
SM |
Yes |
-40°C to 85°C |
Duplex LC |
SHFP-FE-ZX/n |
155Mb/s |
80km |
1550nm |
DFB/PIN |
SM |
No |
0~ 70°C |
Duplex LC |
SHFP-FE-ZX/n-E |
155Mb/s |
80km |
1550nm |
DFB/PIN |
SM |
No |
-5°C to 85°C |
Duplex LC |
SHFP-FE-ZX/n-I |
155Mb/s |
80km |
1550nm |
DFB/PIN |
SM |
No |
-40°C to 85°C |
Duplex LC |
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
Note |
Transmitter Section: | ||||||
Center Wavelength |
λc |
1530 |
1550 |
1570 |
nm |
|
Spectral Width |
σ |
|
|
1 |
nm |
|
Optical Output Power |
Pout |
-5 |
|
0 |
dBm |
1 |
Optical Rise/Fall Time |
tr / tf |
|
|
500 |
ps |
2 |
Extinction Ratio |
ER |
10 |
|
|
dB |
|
Generated Jitter (peak to peak) |
JTXp-p |
|
|
0.07 |
UI |
3 |
Generated Jitter (rms) |
JTXrms |
|
|
0.07 |
UI |
3 |
Eye Mask for Optical Output |
Compliant with G.957(class 1 laser safety) |
|
||||
Receiver Section: |
|
|||||
Optical Input Wavelength |
λc |
1260 |
|
1600 |
nm |
|
Receiver Overload |
Pol |
-8 |
|
|
dBm |
4 |
RX Sensitivity |
Sen |
|
|
-34 |
dBm |
4 |
RX_LOS Assert |
LOS A |
-45 |
|
|
dBm |
|
RX_LOS De-assert |
LOS D |
|
|
-35 |
dBm |
|
RX_LOS Hysteresis |
LOS H |
0.5 |
|
|
dB |
|
General Specifications: | ||||||
Data Rate |
BR |
|
155 |
|
Mb/s |
|
Bit Error Rate |
BER |
|
|
10-12 |
|
|
Max. Supported Link Length on 9/125μm SMF 155Mb/s |
LMAX |
|
80 |
|
km |
|
Total System Budget |
LB |
29 |
|
|
dB |
|

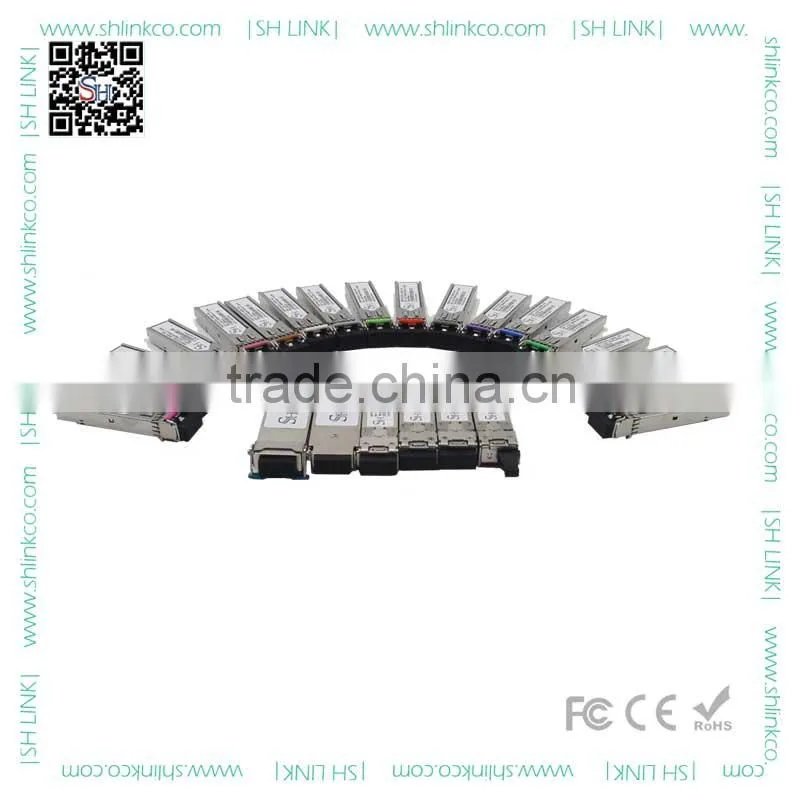

Other Optical Transceiver:
