Fiber optic equipment high quality brands compatible 155Mbps BiDi module
- 5000 Pair / Pairs per Month
- Shenzhen
- T/T Credit Card
- ZTE 5928E, RS-5928E, RS-59EC-PWR-AC10, RS-59EC-PWR-DC10, 24 GE RJ45 + 1 expansion card ZTE ZXR10 5928E 5952E 5916E RS-5916E RS-
- ZTE 2952E, RS-2952E-AC, RS-2952E-DC, 48 FE RJ45 4 GE SFP ZTE ZXR10 2952E 2928E 2918E 2910E
- ZTE 3950-28TM, RS-3950-28TM-AC, 24 FE RJ45 + 2 GE SFP + 1 expansion card slot ZTE ZXR10 3950
- ZTE 2950-18TC, RS-2950-18TC-AC, 16 FE RJ45 + 2 GE Combo ZTE ZXR10 2950
- ZTE S2XF48A, 48-port 10GE SFP+ optical interface ZTE ZXR10 8902E 8905E 8908E 8912E RS-8902E RS-8905E RS-8908E RS-8912E
- ZTE 5250-28PM-H, RS-5250-28PM-H, 20 GE RJ45 (POE/POE+) + 4 GE Combo ports + 1 expansion card ZTE ZXR10 5250
Product Details
Place of Origin: | Guangdong, China | Brand Name: | SH | Model Number: | SHFP-FE-B40 |
Product Description

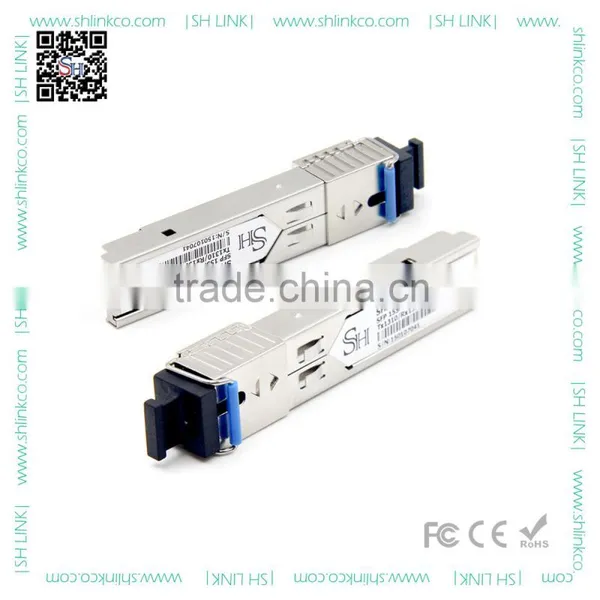

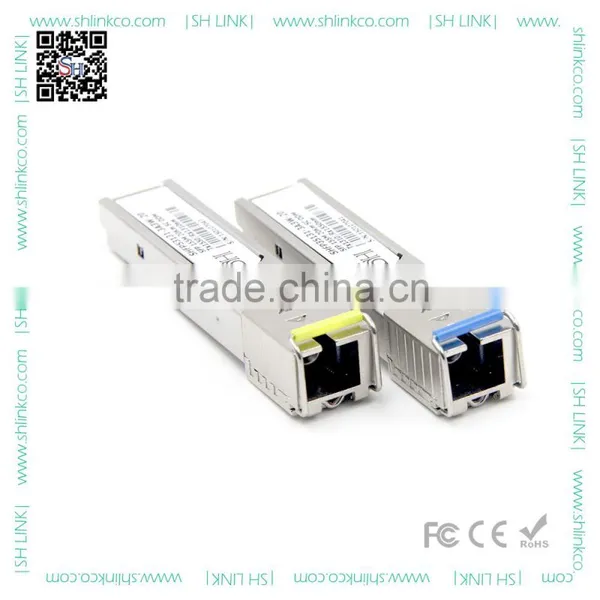

Fiber optic equipment high quality brands compatible 155Mbps BiDi module
Fiber optic equipment high quality brands compatible 155Mbps BiDi module
SHFP-FE-B40 high performance, cost-effective single mode single fiber 155M BiDi SFP transceiver complies with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). It adopts high-performance FP/DFB transmitter and high-sensitivity PIN receiver, provides up to 29dB link budge for Gigabit Ethernet applications up to 40km on a single core single mode fiber.
- Up to 155Mb/s Data Links
- Hot-Pluggable
- Simplex LC connector; SC optional
- 1550nm DFB transmitter, PIN photo-detector
- 40km on a single core SMF
- 2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface
- Power Supply :+3.3V
- Power consumption<1W
- Temperature Range: 0~ 70°C, -40°C to 85°C/-5°C to 85°C available
- RoHS compliant
- SONET OC-3/SDH STM-1
- Fast Ethernet
- Other Optical Links
- compatible with many switches,such as:
Part Number | Data Rate | Distance | Wavelength | Laser | Fiber | DDM | Connector |
SHFP-FE-B40-35 | 155Mb/s | 40km | TX1310nm/RX1550nm | FP/PIN | SM | Yes | Simplex LC |
SHFP-FE-B40-53 | 155Mb/s | 40km | TX1550nm/RX1310nm | DFB/PIN | SM | Yes | Simplex LC |
SHFP-FE-B40-35-SC | 155Mb/s | 40km | TX1310nm/RX1550nm | FP/PIN | SM | Yes | Simplex SC |
SHFP-FE-B40-53-SC | 155Mb/s | 40km | TX1550nm/RX1310nm | DFB/PIN | SM | Yes | Simplex SC |
Parameter | Symbol | Min. | Typical | Max. | Unit | Note | |
Transmitter Section: | |||||||
Center Wavelength | SHFP-FE-B40-35 | λc | 1270 | 1310 | 1600 | nm |
|
SHFP-FE-B40-53 | 1530 | 1550 | 1570 |
| |||
Spectral Width(RMS) | σRMS |
|
| 4 | nm |
| |
Optical Output Power | Pout | -5 |
| 0 | dBm | 1 | |
Optical Rise/Fall Time | tr / tf |
|
| 2 | ns | 2 | |
Extinction Ratio | ER | 10 |
|
| dB |
| |
Generated Jitter (peak to peak) | JTXp-p |
|
| 0.07 | UI | 3 | |
Generated Jitter (rms) | JTXrms |
|
| 0.007 | UI | 3 | |
Eye Mask for Optical Output | Compliant with G.957(class 1 laser safety) |
| |||||
Receiver Section: |
| ||||||
Optical Input Wavelength | SHFP-FE-B40-35 | λc | 1530 | 1550 | 1570 | nm |
|
SHFP-FE-B40-53 | 1270 | 1310 | 1600 |
| |||
Receiver Overload | Pol | -8 |
|
| dBm | 4 | |
RX Sensitivity | Sen |
|
| -34 | dBm | 4 | |
RX_LOS Assert | LOS A | -45 |
|
| dBm |
| |
RX_LOS De-assert | LOS D |
|
| -35 | dBm |
| |
RX_LOS Hysteresis | LOS H | 0.5 |
|
| dB |
| |
General Specifications: | |||||||
Data Rate | BR |
| 155 |
| Mb/s |
| |
Bit Error Rate | BER |
|
| 10-12 |
|
| |
Max. Supported Link Length on 9/125μm SMF@155Mb/s | LMAX |
| 40 |
| km |
| |
Total System Budget | LB | 29 |
|
| dB |
|
Other Optical Transceiver:
Various types of transportation are available, and we will arrange one according to your request.
1. How about your products?
Our products have adopted certifications of CE, FCC and RoHS, which are highly-efficient and at reasonable prices.
2. How about your lead time?
It's 1~3 days for samples and 5~7 days for bulk orders after payments received.
3. How can I pay?
We accept Bank T/T, CASH, Paypal, Western Union...
4. How about your service?
We provide OEM, ODM and excellent after-sale services. If you have any questions, contact us! We provide support 24/7.
