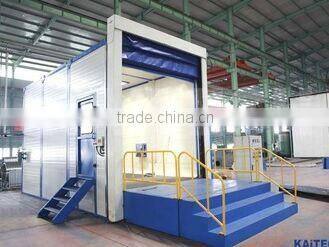

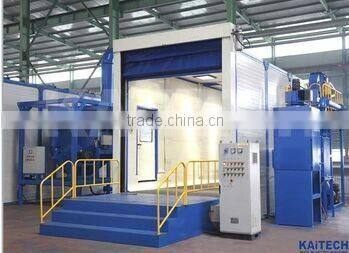

high quality blast chamber made in China
1, Workpiece to be cleaned:
No. |
Name |
Technical parameters |
Remarks |
1 |
workpiece |
Size of max workpiece:1400*2400*1600mm,heaviest weight: 1.5T |
transformer |
2 |
Cleaning aim |
Remove oxide skin, welding slag and other fixture to remove surface stress, and improve adhesive force on surface. |
2, Performance

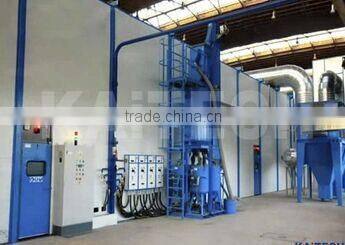

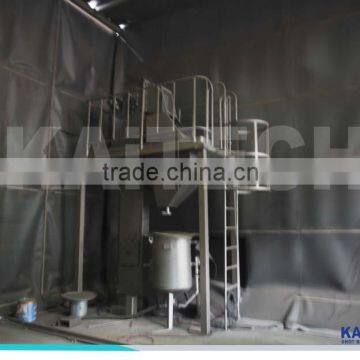

- The mechanic recovery blasting room adopts mechanic recovery system to recovery abrasives and the abrasives can be chosen according to requirements. The abrasive usage is high and process productivity is also high.

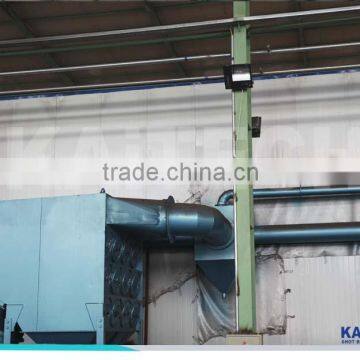

- The dust removing system adopts two stages dust removing, and the dust removing efficiency can reaches 99.99%.
- The air flow in ventilation in this kind of blasting room can be adjustable to prevent the abrasives from entering cartridge filters. Thus it can reduce the lost of abrasives and can have a good dust removing efficiency.
- The main electrical elements in this blasting room uses Japan/EU/USA brand. They have the advantages of reliability, safety, long life service and easy maintenances.
- Use widely: It applies to middle and small size of blasting room to do pretreatment jobs such as rough, casting, welding, heating, steel structure, container, transformer shell, special parts and so on.

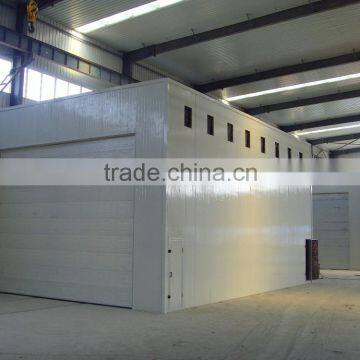

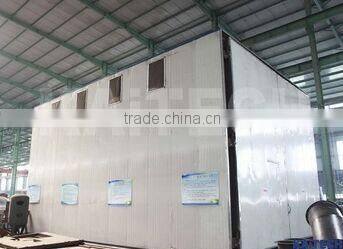

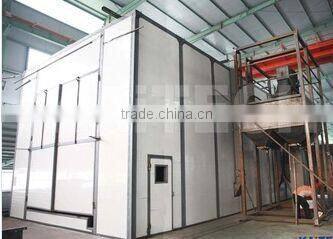

(2) Mechanic recovery blasting room size
No. |
Model |
Size of room |
Size of jobs |
Spray gun quantity |
1 |
XDL-0606-M1 |
6000×6000×5000mm |
3000×3000×2500mm |
2 |
2 |
XDL-0606-M2 |
6000×6000×6000mm |
3000×3000×3500mm |
2 |
3 |
XDL-0806-M1 |
8000×6000×5000mm |
5000×3000×2500mm |
2 |
4 |
XDL-0806-M2 |
8000×6000×6000mm |
5000×3000×3500mm |
2 |
5 |
XDL-1006-M2 |
10000×6000×6000mm |
7000×3000×3500mm |
2 |
6 |
XDL-1506-M2 |
15000×6000×6000mm |
12000×3000×3500mm |
2 |
7 |
XDL-1508-M2 |
15000×8000×6000mm |
12000×5000×3500mm |
2 |
8 |
XDL-1808-M2 |
18000×8000×6000mm |
15000×5000×3500mm |
4 |
9 |
XDL-0806-M3 |
18000×10000×8000mm |
15000×7000×5500mm |
4 |
Remarks:
- Because of different size of blasting jobs from different customers and different productivity requirements, customers may need different size of blasting room. Above size of blasting room is for customers' reference. When you have different requirements, please let us know the size of blasting jobs, size of blasting room and quantity of spray guns, we can design blasting room according to your requirements.
3, Working procedure:
1. Open dust collector
2. Open separator
3. Open elevator
4. Open belt conveyor
5. Open light
6. Load workpieces in trolley

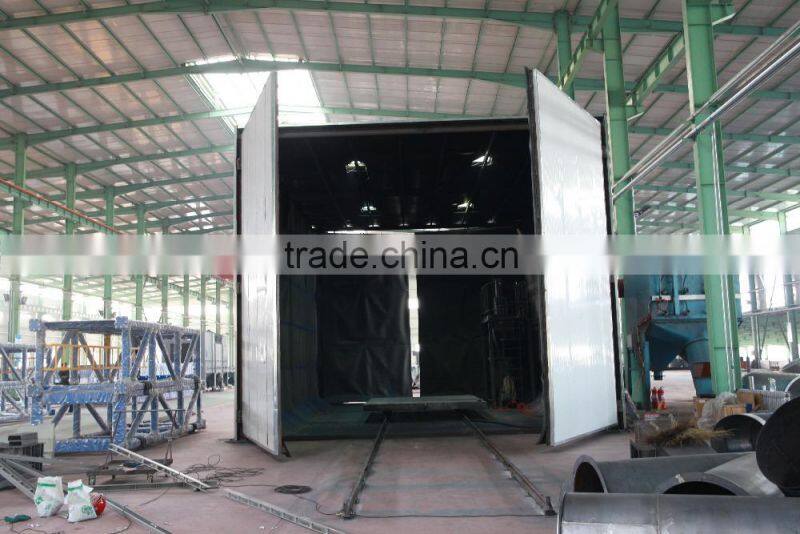

7. After trolley arrives at fixed position, close blasting booth door
8. Operators do shot peening, surface cleaning starts
9. After cleaning is finished, open blasting booth door
10. Trolley leave blasting booth, turn over workpieces, repeat step 7, 8, 9
11. Trolley returned to unloading station, unload workpieces.
12. Repeat 6, 7,8,9,10,11 steps
13. If you prepare to stop work, turn to step 14.
Biggest manufacturer of sand blasting booth, shot blasting machine, spare parts and metal abrasive in China. 1700 emplyees, products have exported to more than 40 countries and regions.
Products have got CE,ISO9001 international standards.
Main markets: Aisa, Middle East, North of America,South of America and so on.
1.We can provide comprehensive shot-peening and shot blasting solution
2.we can offer OEM service.
3.Our main market of shot blasting machine :worldwide,South-east,Middle-east ,Europe and South America.
4.Our shot blasting spare parts are high quality.Blaster can reach uttermost long-life , environmental protection, high efficiency in service.
Q 1: Do you have after-sale service?
A : yes, we have perfect after-sale service
Q 2: How long can your spare parts be used?
A: Blade, control cage and distributor are high chrome, and can be used for more than 2000 hours.
Kinds of guard board can be used for more than 3000 hours.
Q 3: Where is your factory?
A: We are near Jinan Airport, you are welcome to be Jinan Airport and then we will arrange car to pick you up there. Sincerely welcome here to investigate our factory in person.
Q 4. How about your company ?
A:Our company is the biggest manufacturer of metal abrasive and shot blasting machine in china , we have exported to more than 30 counries and regions , and got good comments from overseas and domestic.
