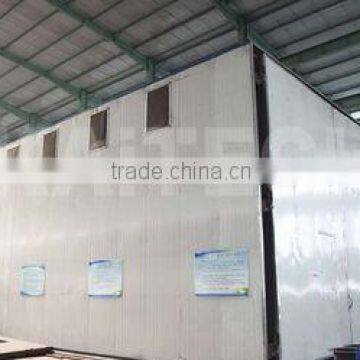

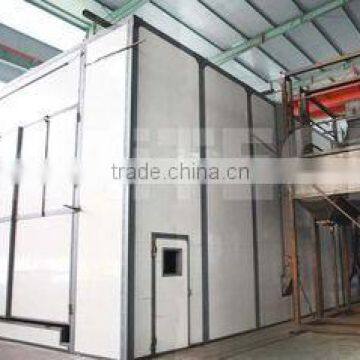

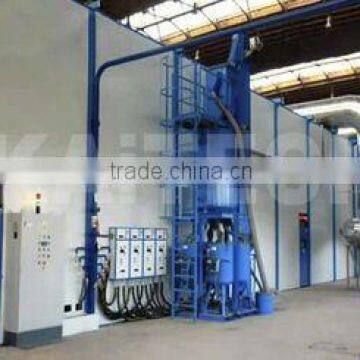

Sand blasting room for big parts
1.The composition of Mechanical recovery type sand blasting booth
Mechanical recovery type sand blasting booth main include booth body,funnel grille,shots circulation recovery system(include belt conveyor or screw converyor,elevator,separator,material storge cabinet,rotary material valve),dust removal system,loading system,lighting system,electric control system,three dimensional lifting platform and so on.
2.Characteristics
(1)Shots converying system has simple and reliable structure, overload capacity is strong,not easy to be blocked
(2)Compared to pneumatic recovery,power is small,and enery saving.
(3)Mechanical repair is easier than pneumatic repair,easy operation.
3. Performance
- The mechanic recovery blasting room adopts mechanic recovery system to recovery abrasives and the abrasives can be chosen according to requirements. The abrasive usage is high and process productivity is also high.
- The dust removing system adopts two stages dust removing, and the dust removing efficiency can reaches 99.99%.
- The air flow in ventilation in this kind of blasting room can be adjustable to prevent the abrasives from entering cartridge filters. Thus it can reduce the lost of abrasives and can have a good dust removing efficiency.
- The main electrical elements in this blasting room uses Japan/EU/USA brand. They have the advantages of reliability, safety, long life service and easy maintenances.
- Use widely: It applies to middle and small size of blasting room to do pretreatment jobs such as rough, casting, welding, heating, steel structure, container, transformer shell, special parts and so on.
4.Mechanic recovery blasting room size
No. |
Model |
Size of room |
Size of jobs |
Spray gun quantity |
1 |
XDL-0606-M1 |
6000x6000x5000mm |
3000×3000×2500mm |
2 |
2 |
XDL-0606-M2 |
6000x6000x6000mm |
3000×3000×3500mm |
2 |
3 |
XDL-0806-M1 |
8000x6000x5000mm |
5000×3000×2500mm |
2 |
4 |
XDL-0806-M2 |
8000×6000×6000mm |
5000×3000×3500mm |
2 |
5 |
XDL-1006-M2 |
10000×6000×6000mm |
7000×3000×3500mm |
2 |
6 |
XDL-1506-M2 |
15000×6000×6000mm |
12000×3000×3500mm |
2 |
7 |
XDL-1508-M2 |
15000×8000×6000mm |
12000×5000×3500mm |
2 |
8 |
XDL-1808-M2 |
18000×8000×6000mm |
15000×5000×3500mm |
4 |
9 |
XDL-0806-M3 |
18000×10000×8000mm |
15000×7000×5500mm |
4 |
1.We can provide comprehensive shot-peening and shot blasting solution
2.we can offer OEM service.
3.Our main market of shot blasting machine :worldwide,South-east,Middle-east ,Europe and South America.
4.Our shot blasting spare parts are high quality.Blaster can reach uttermost long-life , environmental protection, high efficiency in service.
Shandong Kaitai Shot-blasting Machinery Co.,Ltd is a professional enterprise which integrates with technical research, development, production, installation, and debugging. Cooperated with machinery college of Jinan University, we have developed cleaning and intensification equipment of shot-blasting and shot-peening.
The company has first-class technology research-development center and well-developed quality management system, and we have passed ISO9001 international quality system certification. Our company is the National Blasting & Peening Standardization Technology Committee Unit. And the company takes part in and sets down the national standard Parabolic Shot Equipment General Technical Conditions All products apply CAD computer-aided design, the appearance applies three-dimensional software design, and key components of numerical simultion use finite element analysis.
Our main products are cleaning machinesand-peening equipmentenviroment-protection and dust-removal equipment,and offer the ideal key equipments to casting, forging and heat treatment, steel structure, container, machinery, shipbuilding, aircraft, locomotive, the machine tool industry.
Remark:
- Because of different size of blasting jobs from different customers and different productivity requirements, customers may need different size of blasting room. Above size of blasting room is for customers' reference. When you have different requirements, please let us know the size of blasting jobs, size of blasting room and quantity of spray guns, we can design blasting room according to your requirements.
