Sand Blaster pot KP-0.06-JX with KAITAI Brand
Diameters:
MODLE |
DIMENSION(mm) |
VOLUME(m³) |
CONFIGURATION(m³/min) |
AIR PRESSURE(mpa) |
AMOUNT OF SAND BLASTING(kg/h) |
PIPE LENGTH(m) |
REMARK |
KP-0.1-JX |
720x800x1250 |
0.1 |
6 |
0.5~0.6 |
1800~2100 |
10 |
Single pipe |
KP-0.2-JX |
800x940x1460 |
0.2 |
6 |
0.5~0.6 |
1800~2100 |
10 |
Single pipe |
KP-0.3-JX |
620x940x1900 |
0.3 |
6 |
0.5~0.6 |
1800~2100 |
10 |
Single pipe |
KP-0.5-JX |
720x1060x1900 |
0.5 |
6 |
0.5~0.6 |
1800~2100 |
10 |
Single pipe |
KP-0.5-JX-Ⅱ |
720x1060x1900 |
0.5 |
12 |
0.5~0.6 |
3600~4200 |
10x2 |
Double pipe |
KP-0.7-JX |
820x1200x1900 |
0.7 |
6 |
0.5~0.6 |
1800~2100 |
10 |
Single pipe |
KP-0.7-LX |
820x1200x2200 |
0.7 |
6 |
0.5~0.6 |
1800~2100 |
10 |
Single pipe |
KP-0.7-JX-Ⅱ |
820x1200x1930 |
0.7 |
12 |
0.5~0.6 |
3600~4200 |
10x2 |
Double pipe |
KP-0.7-LX-Ⅱ |
820x1200x2200 |
0.7 |
12 |
0.5~0.6 |
3600~4200 |
10x2 |
Double pipe |
KP-0.7-JX-Ⅲ |
1170x1280x1780 |
0.7 |
18 |
0.5~0.6 |
5400~6300 |
10x3 |
Three pipe |
KP-1-JX |
|
1 |
6 |
0.5~0.6 |
1800~2100 |
10 |
Single pipe |
KP-1-JX-Ⅱ |
|
1 |
12 |
0.5~0.6 |
3600~4200 |
10x2 |
Double pipe |
KP-1-JX-Ⅲ |
|
1 |
18 |
0.5~0.6 |
5400~6300 |
10x3 |
Three pipe |
SPECIFICATIONS:
1)Our blast pots are mainly designed and integrated with the wide range of nozzles, wet blast attachments, inte rnal pipe cleaning devices, dust free blasting heads, abrasive control device.
2)Airblast recognizes the needs of the industry and our machines offer all the features that the professional user requires. All machines can be fitted with a well designed and proven single piece remote control dead man switch and silencer which significantly reduce labour cost, improve efficiency of abrasive, performance and safety.
3)The machines are constructed for a maximum 8.6 Bar (125 psi) working pressure.
4)A choice of pneumatic or electropneumatic remote control systems are available with the optional Pneumatic Abrasive Control Valve which facilitates operator to stop or start media control at the nozzle without depressuri zing the blast machine, enabling high output and uninterrupted use or blowing down the blasted surface prior to coating.

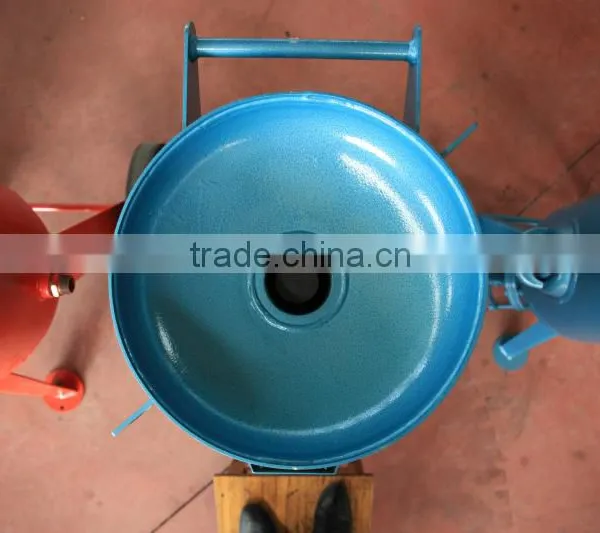

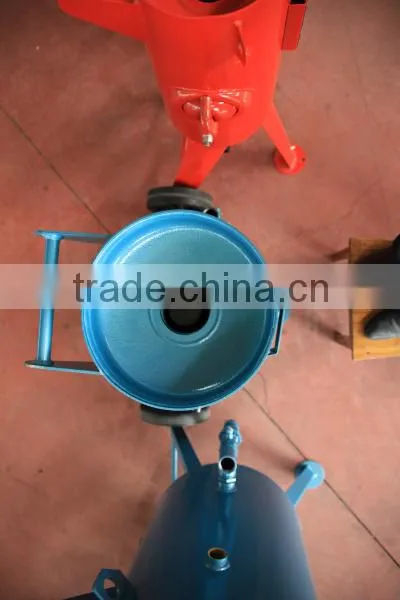

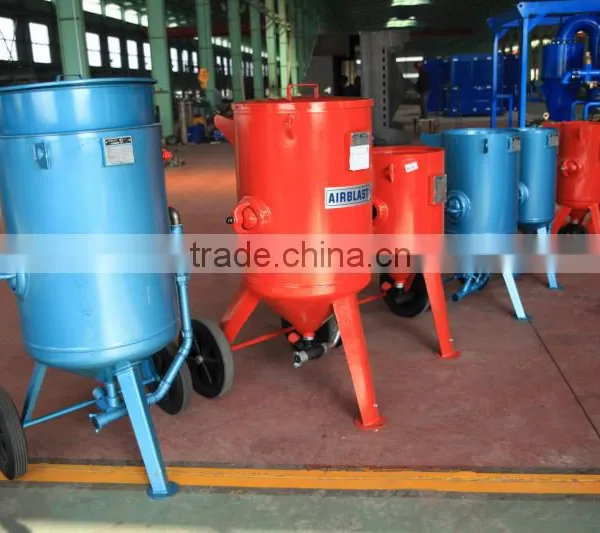

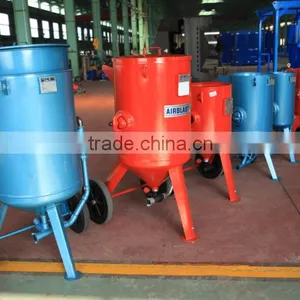

Some pictures of the blast pot:
The packing and the transportation:
Our factory and company:
