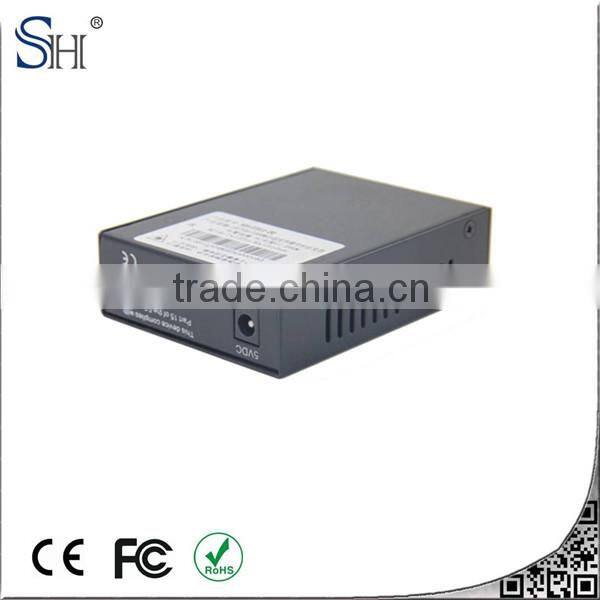

Small size cost-effective 10/100Mbps cctv to ethernet converter
SH-111 series Ethernet WDM media converter convert 10/100Bas-T electrical signals with 100Base-FX optical signals. It converts the signals only over one-core fiber, which greatly saves the cabling cost. It dramatically connects the existing copper networking with the booming fiber optic network which greatly saves the project cost. It provides an economic way to extend the network transmission distance from 100m over copper cables to 100km over fiber optical cable. SH-S111 full series of feature rich media converters provides options in 20km~100km transmission distance, SC/FC/ST connector and more to meet the different application and budget requirements. SH-S111 series media converter is widely used in telecommunication, transportation, security transmission...
> Auto 10/100Base-T
> Supporting 100Base-FX or STM-1
> Auto full-duplex and half-duplex
> Auto MDI/MDI-X
> Store-and-forward or cut-through transmission
> Comply with IEEE802.3 10Base-T, IEEE802.3u 100Base-TX/FX
> Connector: SC (FC/ST optional)
> WDM over single core fiber single mode
> Power: DC5V
Item |
Specifications |
Data Rate |
Copper: 10/100Mbps; Fiber: 100Mbps |
Standard |
IEEE802.3 10Base-T, IEEE802.3u,100Base-TX/FX, IEEE802.3x Flow Control |
Wavelength |
1310nm & 1550nm |
Transmission distance |
SMF: 20~120km; Cat5: 100m |
Conversion means |
Store and Forward mode or Cut-Through mode |
Electrical Connector |
RJ45 |
Fiber Connector |
SC (ST or FC optional) |
LED indicator |
PWR (power supply), TP/LINK (TP cable link/act), FX/LINK (Fiber link/act), 100M (TP 100Mbps) |
Power supply |
DC 5V |
Power consumption |
<3W |
Operating temperature |
0 ~ 40℃ |
Operating humidity |
90% max, non-condensing |
Storage temperature |
-20 ~ +85℃ |
Dimensions |
71 (W) x 26 (H) x 94 (L) (mm) |
Part Number |
Description |
SH-S111-xx/T |
10/100M Fast Ethernet Media Converter, Transmitter xx: 20/40/60/80/100 (km) |
SH-S111-xx/R |
10/100M Fast Ethernet Media Converter, Receiver xx: 20/40/60/80/100 (km) |
Usual payment T/T Paypal etc, are availble . Cash also ok! In addition, Trade Assurance on Alibaba is also available.
Part Number |
Description |
SH-S111-xx/T |
10/100M Fast Ethernet Media Converter, Transmitter xx: 20/40/60/80/100 (km) |
SH-S111-xx/R |
10/100M Fast Ethernet Media Converter, Receiver xx: 20/40/60/80/100 (km) |
There are 3 types of packing items in SH LINK.
1. Neutral packing without brand; 2. SH default packing; 3. OEM, let's talk more!
Delivery time: 1-3 days for samples; 4-10 days for bulk orders.
Logistics mode chosen according to customers.
1. Can you offer samples?
Yes, sample is available.
2. What's your lead time?
1-3 days for samples; 5-7 days for bulk order.
3. Certifications from you?
CE FCC RHOS etc.
4. Do you have MOQ?
There is no requirement for MOQ in SH LINK.
5. What's your price and quality?
SH LINK still do best to serve customers. Cost-effective products are supported! Let's talk more for details!
