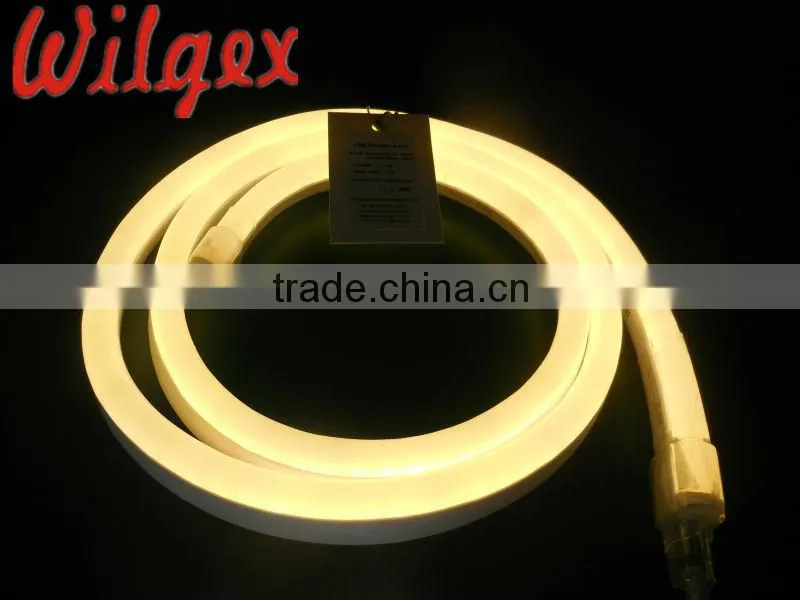

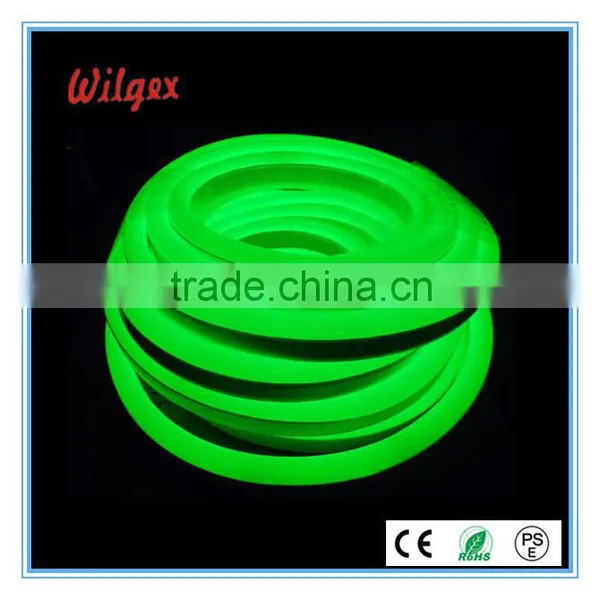

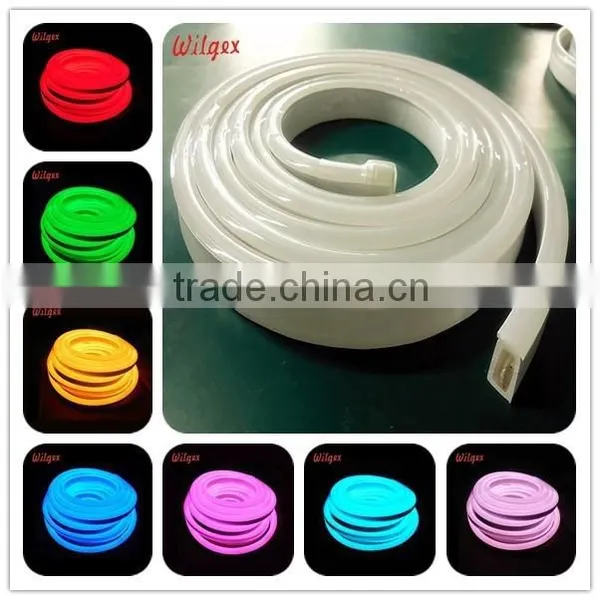

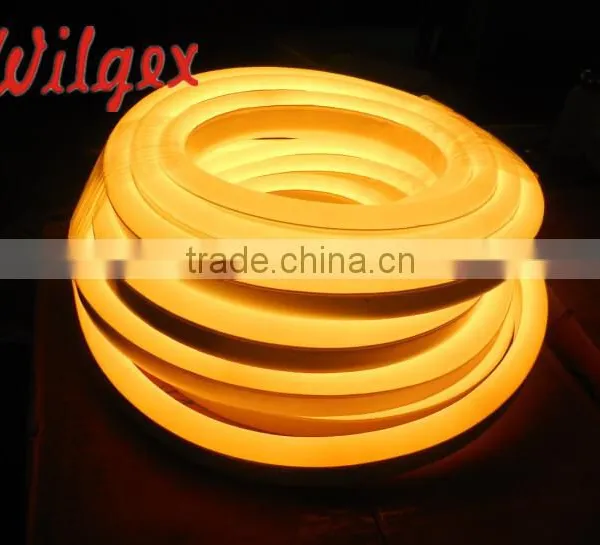

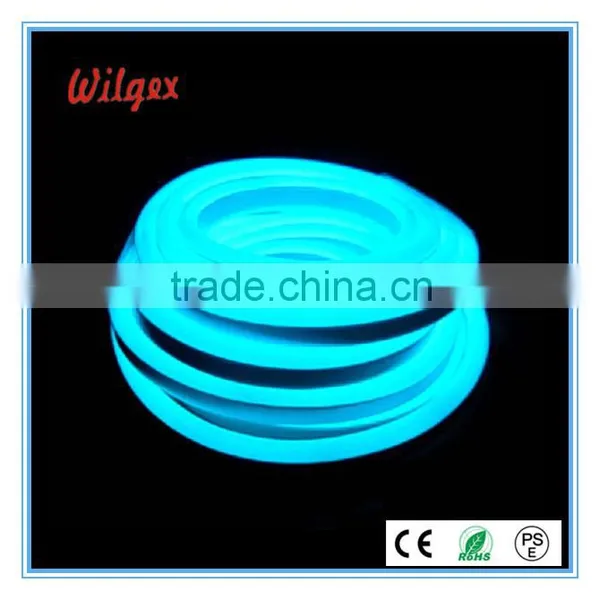

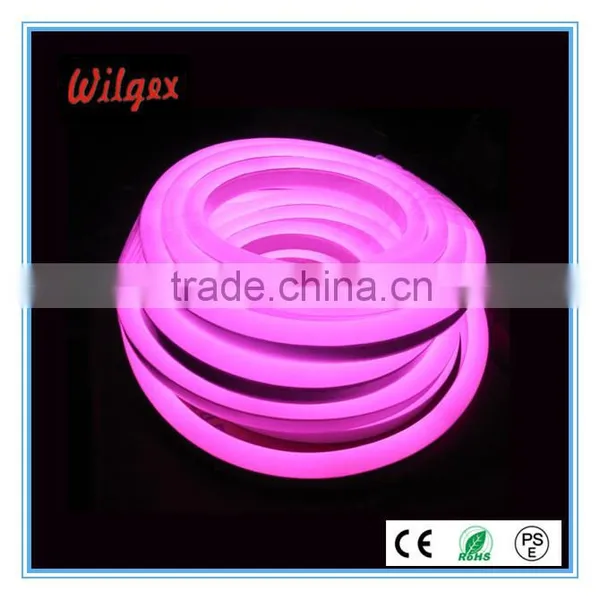

10X20mm 15x26mm outdoor SMD2835 RGB flexible led strip light
Various lighting effects for our flexible led light
Features & Benefits
• Milky,Crystal and Colored PVC jacket design
• Dome/flat surface,continous and uniform illumination,no LED dot or dark spot.
• Extremely flexible
• 100% waterproof ( IP65 and IP68 level)
• 100% breakage free
• Low voltage or line voltage options
• Durability,Impact Resistant
• Weather Resistant , UV protection
• Minimal heat output(Safe to the touch)
• Longer life to 50,000 Hours
• Easy to install(Cuttable on location)
• Extremely low maintenance costs
• 80% less energy consumption of glass neon for Wilgex Latest design DMX digital SMD flexible led strip light
• Does not interfere with Video/Audio systems nearby
• Available in all single colors,RGB colors & Digital RGB colors
• 2 years warranty
Parameter for Wilgex's LED Neon Flex
| Latest design SMD 2835 type flexible led light--single color | ||||||||
| Item No. | WJ-NF-SMD2835-15*26mm | WJ-NF-SMD2835-10*20mm | ||||||
| LED Type | San'an Brand SMD 2835 | San'an Brand SMD 2835 | ||||||
| LED Spacing | 13.9mm | 13.9mm | ||||||
| LED qty/M | 72pcs | 72pcs | ||||||
| Input voltage | 230Vac | 110Vac | 24Vdc | 12Vdc | 230Vac | 110Vac | 24Vdc | 12Vdc |
| Cutting length | 100cm | 50cm | 8.33cm | 4.17cm | 100cm | 50cm | 8.33cm | 4.17cm |
| Watt/meter | 9W/m | 9W/m | 9W/m | 9W/m | ||||
| Max.loading Length | 100m | 50m | 15~20m | 8~10m | 100m | 50m | 15~20m | 8~10m |
| LED color | Red, Green, Blue, Yellow, Orange, Purple, Pink, White, Warm white | |||||||
| Size | 15x26mm | 10x20mm | ||||||
| Latest design SMD 2835 type flex led light--single color | ||||||||
| Item No. | WJ-NF-SMD2835-15*26mm | WJ-NF-SMD2835-10*20mm | ||||||
| LED Type | San'an Brand SMD 2835 | San'an Brand SMD 2835 | ||||||
| LED Spacing | 10.4mm | 10.4mm | ||||||
| LED qty/M | 96pcs | 96pcs | ||||||
| Input voltage | 220Vac | 110Vac | 24Vdc | 12Vdc | 220Vac | 110Vac | 24Vdc | 12Vdc |
| Cutting length | 100cm | 50cm | 12.5cm | 6.25cm | 100cm | 50cm | 12.5cm | 6.25cm |
| Watt/meter | 9W/m | 9W/m | 9W/m | 9W/m | ||||
| Max.loading Length | 100m | 50m | 15~20m | 8~10m | 100m | 50m | 15~20m | 8~10m |
| LED color | Red, Green, Blue, Yellow, Orange, Purple, Pink, White, Warm white | |||||||
| Size | 15x26mm | 10x20mm | ||||||
| Latest technology SMD5050 type flexible led strip light -- RGB Color | ||||||||
| Item No. | WJ-NF-SMD-RGB-15*26mm | WJ-NF-SMD-RGB-10*20mm | ||||||
| LED Type | San'an Brand SMD5050 | San'an Brand SMD5050 | ||||||
| LED Spacing | 13.9mm | 13.9mm | ||||||
| LED qty/M | 72pcs | 72pcs | ||||||
| Input voltage | 220Vac | 110Vac | 24Vdc | 12Vdc | 220Vac | 110Vac | 24Vdc | 12Vdc |
| Cutting length | 100cm | 50cm | 8.33cm | 4.17cm | 100cm | 50cm | 8.33cm | 4.17cm |
| Watt/meter | 13W/m | 13W/m | 13W/m | 13W/m | ||||
| LED color | Seven colors changing, fading | |||||||
| Max.loading Length | 100m | 50m | 15~20m | 8~10m | 100m | 50m | 15~20m | 8~10m |
| Size | 15x26mm | 10x20mm | ||||||
| Unique design Digital RGB Magic color SMD5050 flexible led strip light-SPI control | ||||
| Item No. | WJ-NF-SMD-RGB-15*26mm-SPI | |||
| LED Type | San'an Brand SMD5050 | |||
| LED Spacing | 15.6mm | 16.7mm | ||
| LED qty/M | 64pcs | 60pcs | ||
| Pixel | 4 LEDS/Pixel, 16 Pixels/M | 6 LEDS/Pixel, 10 Pixels/M | ||
| LED Color | Magic color changing (DMX DIY available ) | |||
| Input voltage | 12V DC | 24V DC | ||
| Cutting length | 6.25cm | 10cm | ||
| Watt/meter | 13W/m | 13W/m | ||
| Max. Loading Length | 8~10m | 10~15m | ||
| LM/M Brightness |
12.5%: 56.8LM, 25%: 100.8LM, 37.5%: 143.2LM, 50%: 187.80LM, 62.5%: 231.6LM, 75%:276.5LM, 87.5%:320.3LM, 100%: 368.2LM |
|||
| Size | 15x26mm | |||
| Latest design SMD2835 type 360 Degree D25mm Round led flexible strip light--single color | ||||||||
| Item No. | WJ-NF-SMD2835-D25-72x2 | WJ-NF-SMD2835-D25-96x2 | ||||||
| LED Type | San'an Brand SMD 2835 | San'an Brand SMD2835 | ||||||
| LED Spacing | 13.9mm | 10.4mm | ||||||
| LED qty/M | 144 pcs | 192 pcs | ||||||
| Input voltage | 220V AC | 110V AC | 24V DC | 12V DC | 220V AC | 110V AC | 24VDC | 12V DC |
| Cutting length | 100cm | 50cm | 8.33cm | 4.17cm | 100cm | 50cm | 12.5cm | 6.25cm |
| Watt/meter | 13W/m | 13W/m | ||||||
| LED color | Red, Green, Blue, Yellow, Orange, Purple, Pink | White, Warm white | ||||||
| Max.loading Length | 100m | 50m | 10~20m | 5~8m | 100m | 50m | 12~15mm | 6-8m |
| Size | Dia 25mm | Dia 25mm | ||||||
Different Size and Shape Options for Our flexible led light Color Jacket
Comparison of Old DIP led flexible strip with New SMD flexible led strip light
| DIP LED Neon Flex | SMD LED Neon Flex |
|
|
Control method for RGB flexible led light--4 wires 3 loops
Available voltage:DC12V/24V,AC 110V-120V,AC 220V-230V
I: Votage:DC12V/24V connection diagram
II: Voltage:AC110-120V,or AC 220V-230V
Control Method for Digital RGB flexible led strip light
I: SPI control connection drawing:
II: Directly DMX 512 programmes control connection drawing:
Power connection drawing of Single Color flexible led light

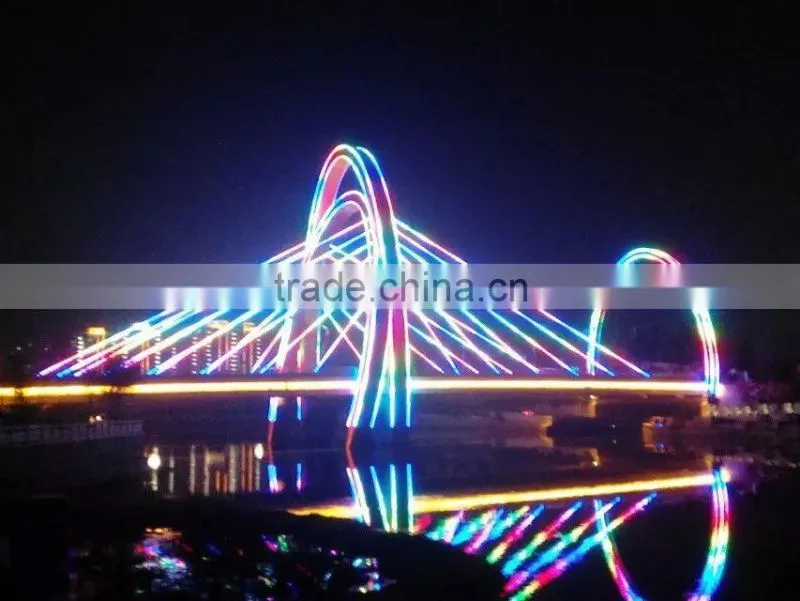

Application for led flexible strip light
Latest design DMX digital SMD flexible led strip light is widely used in city lighting engineering,architectural outline sketch,business travel façade decoration,billboards,taxi signing ballroom,stage,background production and a large number of places such as night scene decoration.
Fast link for other product from our waterproof Led Neon Flex
LED Linear Wall Washer LED Round Wall Washer LED Square Wall Washer Flexible LED Strip Light LED Unterwater Light LED Garden Lamp LED Stage Light
We do inspection after manufacuture as well as before packing
Main Machine
Exhibitions
Our Promise
1. Provide solutions and high quality products
2. Streamline the buying and paying processes
3. Deliver the goods to our customers all over the world with speed and precision
4. Protection of your sale area, ideas of design and all your private information
Our Service
1. Provide professional person to communicate with you before the order.
2. Provide optimum system solution based on each client’s specific requirement.
3. Send extra accessories to help fix the lamp for free international express.
If accessories can’t solve the problem, we will send you the replacement lamp directly.
Our firm brings a team of successful lighting manufactures and sales experts in the field of LED lighting production. We have over 12 years of professional experience in this field.Through the complete and rich information, you will easily find satisfactory services to meet your market demands.
We have a 2,000 square-neter factory and 124 experienced workers to produce different product. We strongly believe both the quality of our products and the productivity of our factory will fulfill any of your market needs.
Our raw material (LED) comes from Cree, Taiwan Epistar and Edison. And our all products (Nichia patented) can be available for Osram, sold in Europe and Japan. Our major business partners spread over the United States, Canada, Europe and the Middle East.
Our products show extremely long life span and stability in the function. We guarantee the lifespan is over 50,000 hours.
We can deliver samples to you within 3 days, and deliver your ordered products within 7 to 15 days.
