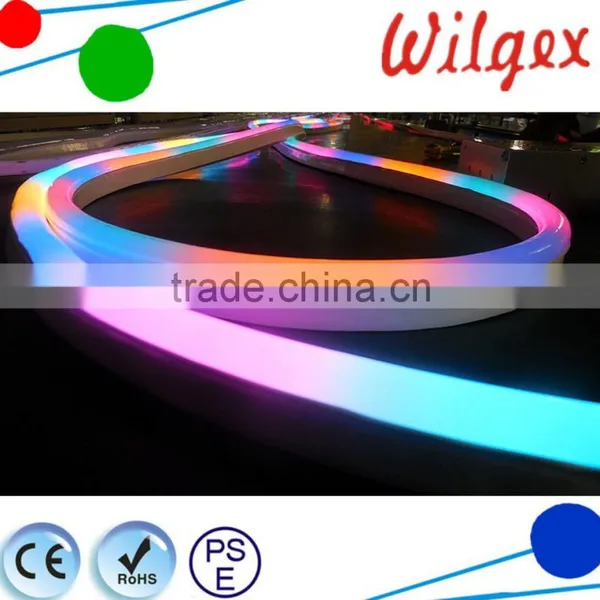

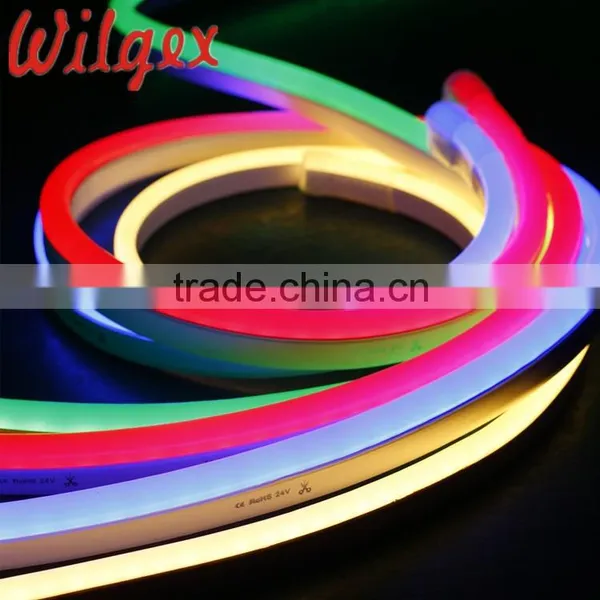

Multicolor color LED Neon Flex strip light
Various lighting effects for our lastest design LED Neon Flex
Features & Benefits
• Milky,Crystal and Colored PVC jacket design
• Dome/flat surface,continous and uniform illumination,no LED dot or dark spot.
• Extremely flexible
• 100% waterproof ( IP65 and IP68 level)
• 100% breakage free
• Low voltage or line voltage options
• Durability,Impact Resistant
• Weather Resistant , UV protection
• Minimal heat output(Safe to the touch)
• Longer life to 50,000 Hours
• Easy to install(Cuttable on location)
• Extremely low maintenance costs
• 80% less energy consumption of glass neon for Wilgex Latest design DMX digital SMD LED Neon Flex
• Does not interfere with Video/Audio systems nearby
• Available in all single colors,RGB colors & Digital RGB colors
• 2 years warranty
Application
Latest design DMX digital SMD LED Neon Flex is widely used in city lighting engineering,architectural outline sketch,business travel façade decoration,billboards,taxi signing ballroom,stage,background production and a large number of places such as night scene decoration.
Specification for LED Neon Flex
Different Size and Shape Options for LED Neon Flex
Comparison of Old DIP Flex Neon LED with New SMD Flex Neon LED
| DIP LED Neon Flex | SMD LED Neon Flex |
|
|
Control method for RGB LED Neon Flex--4 wires 3 loops
Available voltage:DC12V/24V,AC 110V-120V,AC 220V-230V
I: Votage:DC12V/24V connection diagram
II: Voltage:AC110-120V,or AC 220V-230V
Control Method for Digital RGB LED Neon Flex
I: SPI control connection drawing:
II: Directly DMX 512 programmes control connection drawing:
Power connection drawing of Single Color LED Neon Flex
For Low voltage 12VDC or 24VDC,total LED Neon Flex Meterage off One Driver Circuit
| Size | Color | Total different length with different power supply can run | Watts /m | ||||
|
12V/24VDC ( 30W) |
12V/24VDC ( 60W) |
12V/24VDC ( 100W) |
12V/24VDC ( 200W) |
12V/24VDC ( 250W) |
|||
| 10X18mm,SMD3528 | Single color | 6 m | 10 m | 17 m | 35 m | 42 m | 4.8W/m |
| 10X18mm,SMD2835 | Single color | 3 m | 5.5 m | 9 m | 18 m | 22 m | 9W/m |
| 10X20mm,SMD3528 | Single color | 6 m | 10 m | 17 m | 35 m | 42 m | 4.8W/m |
| 10X20mm,SMD2835 | Single color | 3 m | 5.5 m | 9 m | 18 m | 22 m | 9W/m |
| 15X26mm,SMD3528 | Single color | 6 m | 10 m | 17 m | 35 m | 42 m | 4.8W/m |
| 15X26mm,SMD2835 | Single color | 3 m | 5.5 m | 9 m | 18 m | 22 m | 9W/m |
| 15X26mm,SMD3014 | RGB color | 2 m | 4 m | 6.5 m | 12.5 m | 15 m | 13w/m |
| 15X26mm,SMD3014 | Digital RGB | 2 m | 4 m | 6.5 m | 12.5 m | 15 m | 13w/m |
Main Machine
Application for LED Neon Tube Flexible
