Name: Superior Dome Surface Waterproof LED Neon Flex

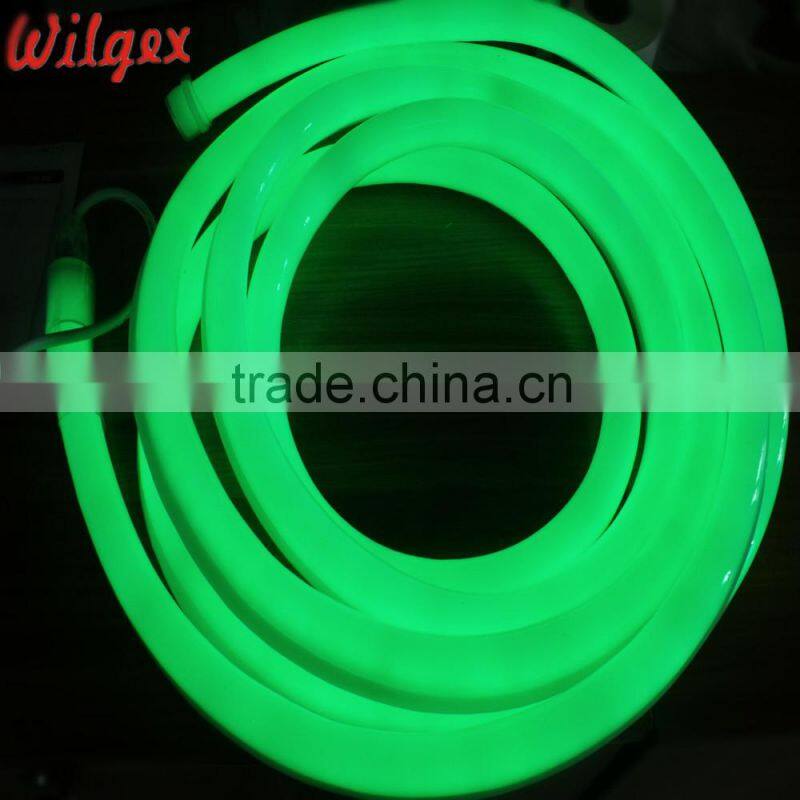

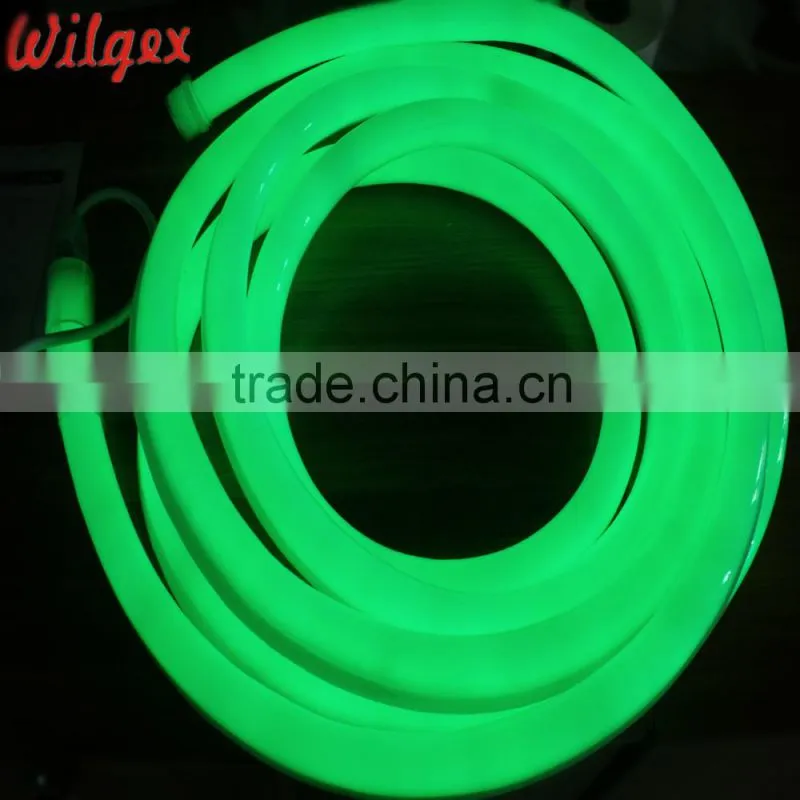

Single color neon flex with colored jacket picture as below:
Features & Benefits IP65 Waterproof 10x20mm 12V 24V 110V 220V single color green LED Neon Flex
• Milky,Crystal and Colored PVC jacket design
• Dome/Flat surface,continous and uniform illumination,no LED dot or dark spot.
• Extremely flexible
• 100% waterproof ( IP65 and IP68 level)
• 100% breakage free
• Low voltage or line voltage options
• Durability,Impact Resistant
• Weather Resistant , UV protection
• Minimal heat output(Safe to the touch)
• Longer life to 50,000 Hours
• Easy to install(Cuttable on location)
• Extremely low maintenance costs
• 80% less energy consumption of glass neon for Wilgex Latest design DMX digital SMD LED Neon Flex
• Does not interfere with Video/Audio systems nearby
• Available in all single colors,RGB colors & Digital RGB colors
• 2 years warranty
Parameter for Wilgex'sLED Neon Flex
| Latest design SMD 2835 120PCS type LED neon flex--single color | |||||||||
| Item No. | WJ-NF-SMD2835-15*26mm | WJ-NF-SMD2835-10*20mm | |||||||
| LED Type | SMD 2835 | SMD 2835 | |||||||
| LED Spacing | 0.83cm | 0.83cm | |||||||
| LED qty/M | 120pcs | 120pcs | |||||||
| Input voltage | 220V | 110V | 24V | 12V | 220V | 110V | 24V | 12V | |
| Cutting length | 100cm | 50cm | 8.33cm | 4.17cm | 100cm | 50cm | 8.33cm | 4.17cm | |
| Watt/meter | 9W/m | 9W/m | |||||||
| Max.loading Length | 100m | 50m | 20-25m | 10-15m | 100m | 50m | 20-25m | 10-15m | |
| LED color | Red | Green | Blue | Pink | White | Yellow | Orange | Purple | Warm white |
| Lumen / m | 233 | 388 | 156 | 158 | 450 | 228 | 235 | 158 | 340 |
| Size | 15x26mm | 10x20mm | |||||||
| Latest design SMD 2835 96PCS type LED neon flex--single color | |||||||||
| Item No. | WJ-NF-SMD2835-15*26mm | WJ-NF-SMD2835-10*20mm | |||||||
| LED Type | SMD 2835 | SMD 2835 | |||||||
| LED Spacing | 1.04cm | 1.04cm | |||||||
| LED qty/M | 96pcs | 96pcs | |||||||
| Input voltage | 220V | 110V | 24V | 12V | 220V | 110V | 24V | 12V | |
| Cutting length | 100cm | 50cm | 12.5cm | 6.25cm | 100cm | 50cm | 12.5cm | 6.25cm | |
| Watt/meter | 7W/m | 7W/m | |||||||
| Max.loading Length | 100m | 50m | 20-25m | 10-15m | 100m | 50m | 20-25m | 10-15m | |
| LED color | Red | Green | Blue | Pink | White | Yellow | Orange | Purple | Warm white |
| Lumen / m | 233 | 388 | 156 | 158 | 450 | 228 | 235 | 158 | 340 |
| Size | 15x26mm | 10x20mm | |||||||
| Latest design SMD 5050 RGB type LED neon flex | ||||||||
| Item No. | WJ-NF-SMD5050-15*26mm | WJ-NF-SMD5050-10*20mm | ||||||
| LED Type | SMD 5050 | SMD 5050 | ||||||
| LED Spacing | 0.83cm | 0.83cm | ||||||
| LED qty/M | 72pcs | 72pcs | ||||||
| Input voltage | 220V | 110V | 24V | 12V | 220V | 110V | 24V | 12V |
| Cutting length | 100cm | 50cm | 8.33cm | 4.17cm | 100cm | 50cm | 8.33cm | 4.17cm |
| Watt/meter | 13W/m | 13W/m | ||||||
| Max.loading Length | 100m | 50m | 10-20m | 5-10m | 100m | 50m | 10-20m | 5-10m |
| LED color | RGB | RGB | ||||||
| Lumen / m | 443 | 443 | ||||||
| Size | 15x26mm | 10x20mm | ||||||
| Latest design SPI Digital 5050 type LED neon flex | ||||||||
| Item No. | WJ-NF-SMD5050-15*26mm | WJ-NF-SMD5050-10*20mm | ||||||
| LED Type | SMD 5050 | SMD 5050 | ||||||
| LED Spacing | 1.67cm | 1.67cm | ||||||
| LED qty/M | 60pcs | 60pcs | ||||||
| Input voltage | 220V | 110V | 24V | 12V | 220V | 110V | 24V | 12V |
| Cutting length | - | - | 10cm | 10cm | - | - | 10cm | 10cm |
| Watt/meter | 13W/m | 13W/m | ||||||
| Max.loading Length | - | - | 8-10m | 8-10m | - | - | 8-10m | 8-10m |
| LED color | RGB | RGB | ||||||
| Lumen / m | 443 | 443 | ||||||
| Size | 15x26mm | 10x20mm | ||||||
Related product:

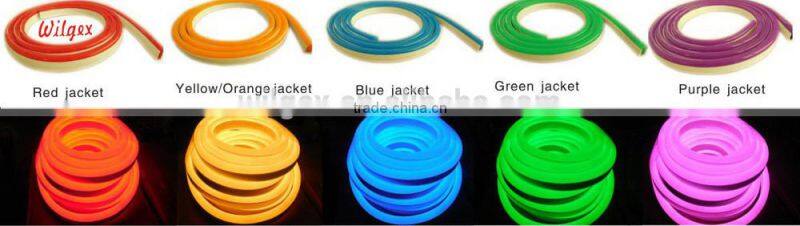

Different Size and Shape Options for Our Color Jacket LED Neon
Control method for RGB LED Neon Flex--4 wires 3 loops
Available voltage:DC12V/24V
Votage:DC12V/24V connection diagram
Control Method for Digital RGB LED Neon Flex
I: SPI control connection drawing:
II: Directly DMX 512 programmes control connection drawing:
Power connection drawing of Single Color LED Neon Flex
Main Machine

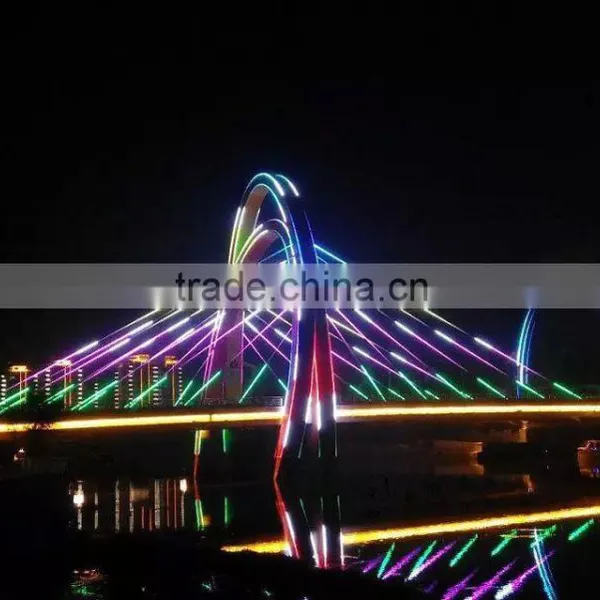

Application for LED Neon Flex
LED Neon Flex is widely used in city lighting engineering, architectural outline sketch, business travel façade decoration, billboards, taxi signing ballroom, stage, background production and a large number of places such as night scene decoration.
Certifications:
Package:
Our Promise: 1. Provide solutions and high quality products
2. Streamline the buying and paying processes
3. Deliver the goods to our customers all over the world with speed and precision
4. Protection of your sale area, ideas of design and all your private information
Our Service: 1. Provide professional person to communicate with you before the order.
2. Provide strict quality check for each part, each process before export.
3. Provide optimum system solution based on each client’s specific requirement.
4. Send extra accessories to help fix the lamp for free international express.
If accessories can’t solve the problem, we will send you the replacement lamp directly.
