Home > Metallurgy, Mineral & Energy > Solar & Renewable Energy > Solar Controller > CE Approved High Efficiency PWM 12V 24V 15A Solar Controller

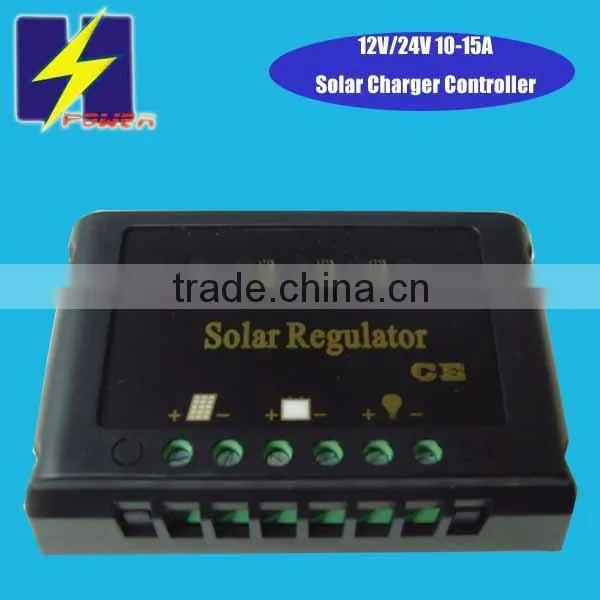

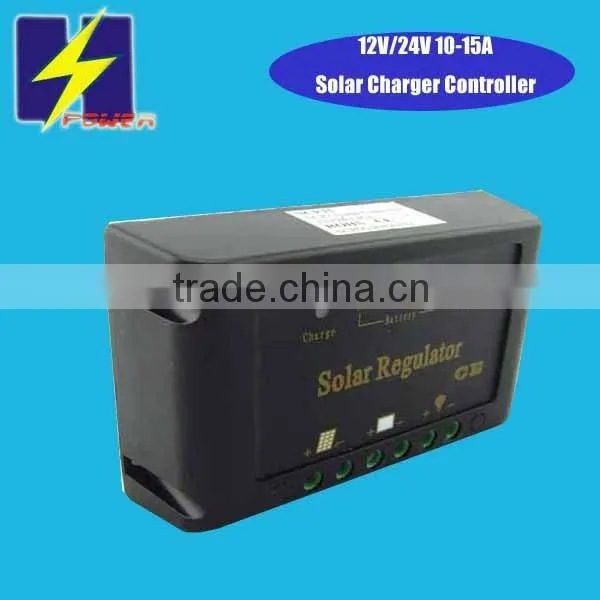

CE Approved High Efficiency PWM 12V 24V 15A Solar Controller
US$ 14 - 16
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
YH POWER
Model Number:
YH-SC1215
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
PWM 12V/24V 15A Solar Charger ControllerUS$ 13 - 15MOQ: 100 Pieces -
15A Solar System Controller PWM(12V/24V) Germany TechnologyUS$ 13 - 15MOQ: 500 Pieces
-
Factory 10A PWM Solar Controller 48vUS$ 33 - 36MOQ: 200 Pieces
-
Waterproof Solar Controller 12V/24V 20A PWMUS$ 20 - 22MOQ: 200 Pieces
-
LCD Display 30A Solar Controller (12V/24V Auto Detect)US$ 65 - 68MOQ: 100 Pieces
Place of Origin
Guangdong, China
Brand Name
YH POWER
Model Number
YH-SC1215
Application
Solar System Controller
Rated Voltage
Other, 12v/24V
Maximum Current
15A
PWM 12V 15A solar controller
| Specification | ||
| Products specification | ||
| 1 | Model | YH-SC1215 |
| 2 | Name | PWM solar controller |
| 3 | Rated voltage | 12V/24V automatic identification |
| 4 | Strong charging pressure | 14.8V/29.6V |
| 5 | Balanced filling | 14.5V/29V |
| 6 | Float chargering pressure | 13.7V/27.4V(25°C) |
| 7 | Low pressure load off voltage | 11v/22v±0.2 |
| 8 | Load connect voltage | 12.5V/25.5V |
| 9 | Temperature compensation system | -4mV/C/2V |
| 10 | Maximum charger current | 15A |
| 11 | Maximum load current | 15A |
| 12 | Maximum cable diameter | 4mm² |
| 13 | Weight(gross)/set | 200g |
| 14 | Working temperature | -40-60°C |
| 15 | Protection grade | IP56 |
| Advantage | ||
| 1 | The department example product automatic identification system voltage 12V/24V | |
| 2 | Battery protection, avoid solar battery overcharger | |
| 3 | Adapter MCU contol, five charging and discharging LED indicator, capacity state | |
| 4 | With strong charger, balanced filling and floating filling 3-sectional series PWM adjust charing ways | |
| 5 | Automatic detection and tracking outside and battery temperature, built-in temperature compesation function | |
| 6 | Overakk electronic protection function,include overcharge put, overload,short-circuit,answer the reverse,etc | |
| 7 | Has the TVS lighting protection, no jump line design, can enhance the system relibiluty and durability | |
| 8 | Parameter Setting with power lsot save function,all importand date are keep in the chip | |
| 9 | Can work in cold ,high temperature,humid environment | |
