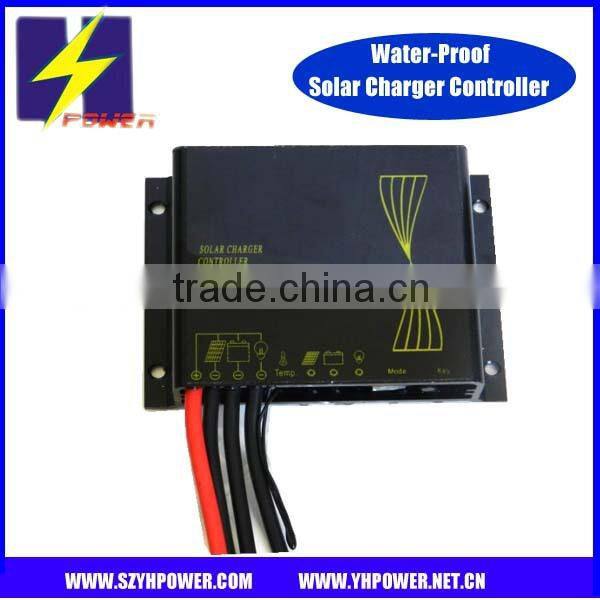

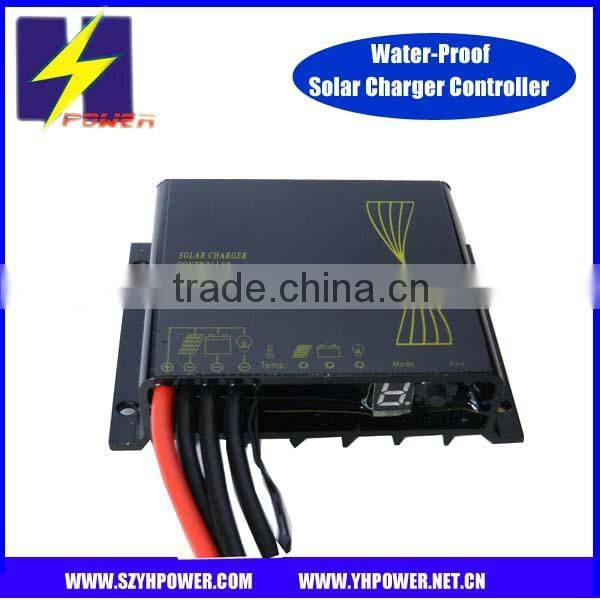

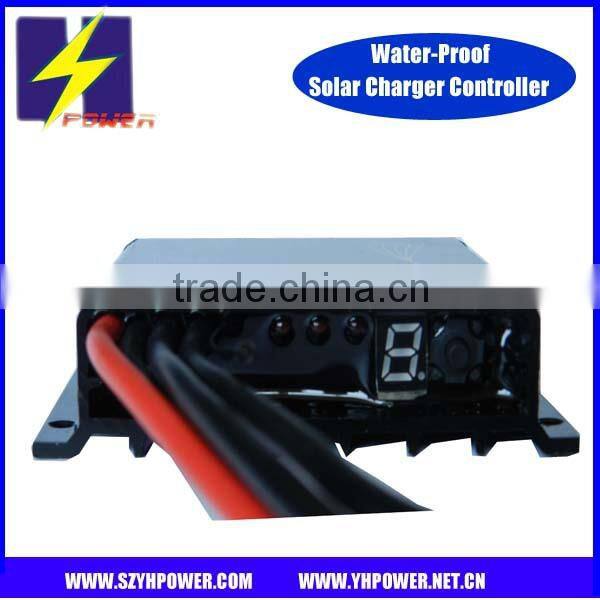

Waterproof Solar Controller 12V/24V 20A PWM

Name: Waterproof Solar Controller 12V/24V 20A PWM
Brand: YH POWER
SKU: 106542001
Availability: InStock

US$ 20 - 22 MOQ: 200 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

YH POWER

Model Number:

YH-SC1220WP

Shenzhen YH Power Supply Pte. Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name YH POWER

Model Number YH-SC1220WP

Application Solar System Controller

Rated Voltage Other, 12v/24V

Maximum Current 20A

Specifications

1.20A waterproof solar controller
2.12v/24V identify automatically
3.PWM function supported
4.12 month warranty

Ⅰ. Main features

IP 68 waterproof level and aluminum outer shell is able to effectively prevent various kinds of corrosion.
Automatic identification of 12V/24V system voltage
LED digital display and waterproof key-operated operations, which makes use simple and convenient
Ternary form charging algorithm to equally charge storage battery every week, which can effectively prevent
batteryfrom imbalance and vulcanization so that service life of battery can be prolonged.
Five working modes which make it convenient to use the product on various kinds of road lamps and monitoring
devices.
Externally installed temperature sensor is capable of high-accurate temperature compensation.
Parameter settings can be stored if there is power failure.No need for repeated setting. Usage is simple and convenient.
Various kinds of status indication
Protection against over-charge,overdischarge and overload, protection against electronic short circuit and reverse connection
TVS lightning protection

LED Display	Mode	LED Display	Mode
F	Purely light-operated	9	Light-operated + time-controlled for 9 hours
1	Light-operated + time-controlled for 1 hour	0.	Light-operated + time-controlled for 10 hours
2	Light-operated + time-controlled for 2 hours	1.	Light-operated + time-controlled for 11 hours
3	Light-operated + time-controlled for 3 hours	2.	Light-operated + time-controlled for 12 hours
4	Light-operated + time-controlled for 4 hours	3.	Light-operated + time-controlled for 13 hour
5	Light-operated + time-controlled for 5 hours	4.	Light-operated + time-controlled for 14 hours
6	Light-operated + time-controlled for 6 hours	5.	Light-operated + time-controlled for 15 hours
7	Light-operated + time-controlled for 7 hours	L	Debug mode
8	Light-operated + time-controlled for 8 hours	H.	Long-term On mode

Instructions for parameters

System voltage	12V/24V Auto
System current	15A/20A
No-load loss	< 5mA
Solar energy input voltage	< 55V
Overvoltage protection	17.0V,×2/24V
Equal charging voltage	14.6V,×2/24V(25°C), duration:1h
Ascending charging voltage	14.4V,×2/24V(25°C), duration:2h
Float charging voltage	13.8V, ×2/24V (25°C)
Return voltage during charging	13.2V,×2/24V (25°C)
Return voltage for over-discharging	12.8V,×2/24V
Over-discharging voltage	10.8V,×2/24V
Temperature compensation	-4.0mv/°C/2V.
Light-control voltage	Light-control open 5V, light-control close 6V
Light-control judgment time	10min
Overload and short circuit protection	1.25 times of rated current: 30s; 1.5 times of rated current: 5s overload protection activity; ≥3 times of rated current: short circuit protection
Working temperature	-35°C to +65°C
Protection level	IP68
Weight	140g
Dimensions	82×58×20(mm)(L×W×H)
