Geocell Product and Application
Product Description

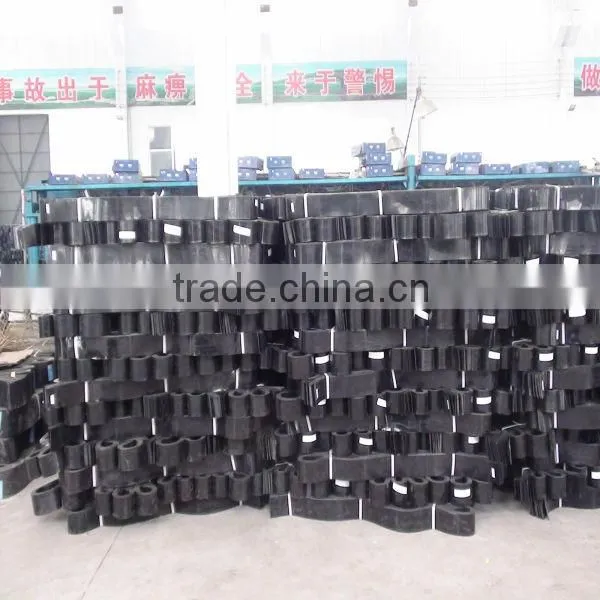

Geocell is made of a new type of high strength geosynthetics, which is popular with both domestic and abroad, in accordance with GB/T 19274-2003 implemenation of the standards, which welding the strengthened HDPE sheets by the high-power ultrasonic and forming to be a structure of three-dimensional reticular formation. Easily folding and convenient for transportation. When be in construction,the geocell can be pull into a network and launched into a three-dimensional honeycomb grid.As it filled in sol,macadam,concrete or other granular materials,constituted to be a construction which has strong sidewise restraint and high rate of stiffness.
Product Application
1. To stable the roadbd of railway.
2. To stable the roadbed of highroad.
3. To bear the load of dike or retaining wall.
4. To the imporement of shallow riverway.
5. To support the pipeline and sewer.
6. For the prevention of landslide by using geocell as a heavy-duty hybrid force retaining wall.
7. To be used as independent wall, wharf and breakwater,etc.
8. For the desert,beaches and the riverbed, the river bank's regulation.
Function Index of Chief Civil Engineering Check Product
| Item No. | Hight (mm) | Weld distance (mm) | Thickness of the Sheet (mm) | Tensile strength of weldig points( N/cm) | Tensile strength of connection of cells (N/cm) | Tensile srength at yield of each sheet (N/mpa) |
| GS-50-400 | 50 | 330≤A<1000 | ≥1.1 | ≥100 | ≥120 | ≥20 |
| GS-75-400 | 75 | 330≤A<1000 | ≥1.1 | ≥100 | ≥120 | ≥20 |
| GS-100-400 | 100 | 330≤A<1000 | ≥1.1 | ≥100 | ≥120 | ≥20 |
| GS-150-400 | 150 | 330≤A<1000 | ≥1.1 | ≥100 | ≥120 | ≥20 |
| GS-200-400 | 200 | 330≤A<1000 | ≥1.1 | ≥100 | ≥120 | ≥20 |
