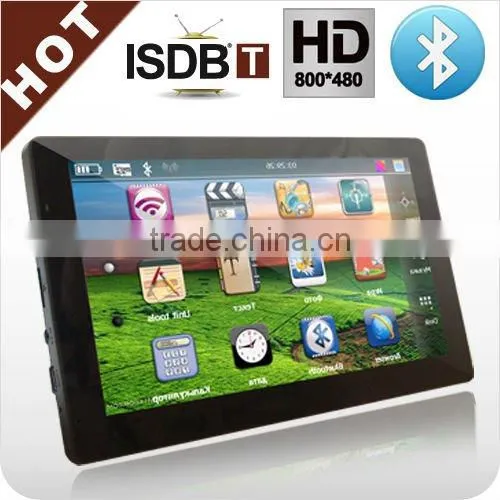

Help CenterM076-TV Digital, Bluetooth, AV-input, DDR128MB (Brazil, Chile Gps)
Related Products
-
M172 - 7 Inch Navegadores GpsUS$ 33 - 35MOQ: 30 Pieces -
Built in Camera Hotselling Car DVR for GPS NavigationUS$ 45 - 50MOQ: 50 Pieces
-
4.3 Inch Bluetooth GpsUS$ 23 - 33MOQ: 100 Pieces
-
D071-Built in Car Camera and BluetoothUS$ 55 - 63MOQ: 30 Pieces
-
M062-Best Travel Companion, Rapid Planning NavigationUS$ 29 - 32MOQ: 26 Pieces

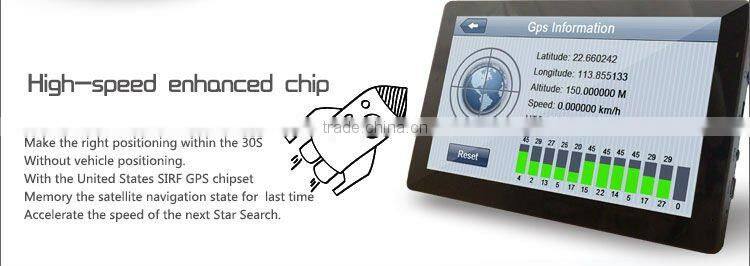

9. 7 inch GPS ,ultra-thin HD cheap price get together.High-speed enhanced chip.Make the right positioning within the 30S.
SPECIFICATION | |
Environment parameters | |
GPS Display |
7 inch |
Working temperature scope |
0°C to +60°C |
Save temperature scope |
-20°C to +80°C |
Working humidity scope |
45% to 80%RH |
Save humidity scope |
30% to 90%RH |
atmospheric pressure |
860MBar ~ 1060Mbar |
System parameters | |
Main frequency |
Dual core 800MHz |
Type of main chip |
MTK MT3351,ARM11 76JZ-S Core |
InternalDDR2 |
128MB |
Storage space |
Micro SD card space expand to 16GB |
Navigation software storage |
NAND Flash 4GB, micro SD card/SLC NAND FLASH |

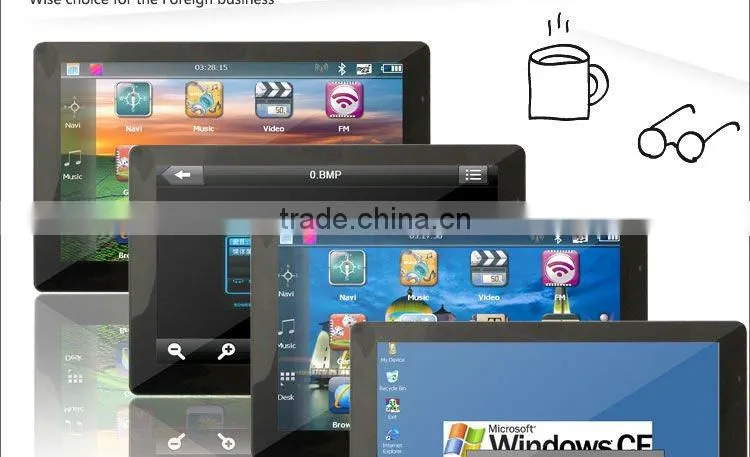

Operating System |
WINCE 6.0 Core Version |
Multimedia parameters and function | |
Audio support type |
MP3/WMA/WAV, LRC with the sing words |
Video support type |
MP4/MPG/WMV/AVI/3GP |
Video decode function |
QVGA 25/s |
Picture and document browser | |
Support picture type |
BMP/JPG/GIF/PNG |
Support document |
TXT |
Basic parameters | |

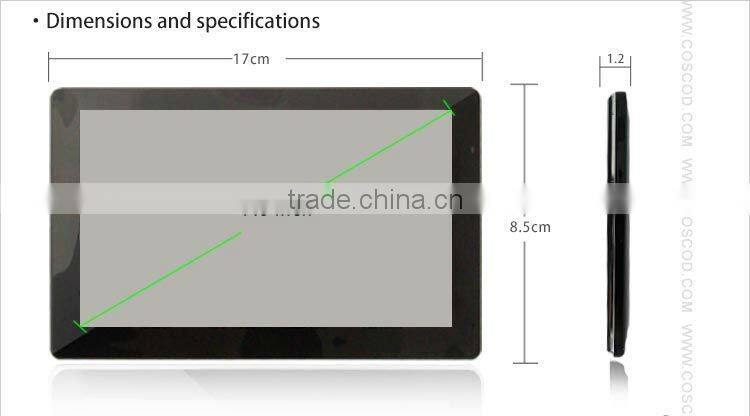

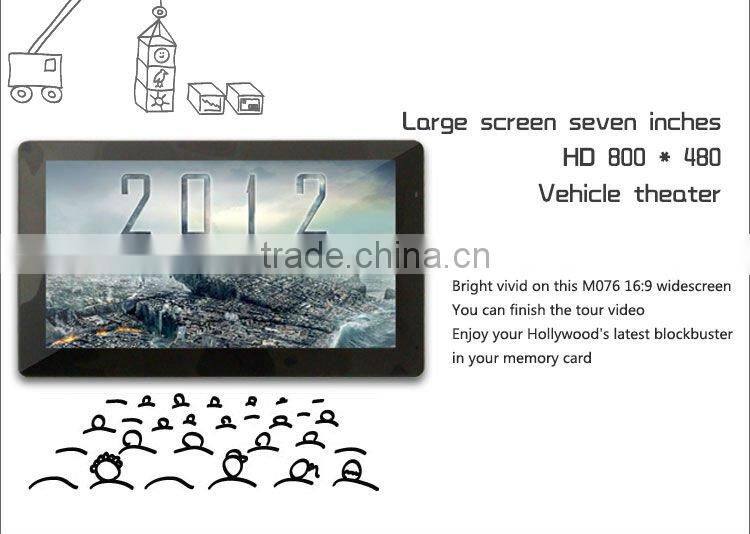

Display size |
7 inch TFT-LCD |
Touch screen |
Single 7 inch touch screen |
Display definition ratio |
800*RGB*480 P |
Display ratio |
|
Audio input |
Dual channel CD sound |
Audio power |
Earphone stereo dual channel 0.25W/CHANEL, single 8Ω/1W |
Average power |
1.5W |
Standby power |
<20mW |
Battery type |
Built-inPolymer battery1200mAH |
GPS parameters | |
Chips team |
MT3329 |
Frequency |
1.575GHZ |
Channel Qty |
24 Channels |
Trace sensitive |
-161dBm |
Location accuracy |
<10m |
Speed |
0.1m/s |
Information update ratio |
1HZ |
Renew time |
Average 0.1s(OPEN SKY) |
Hot start time |
<=5s(OPEN SKY) |
Normal start time |
<=35s(OPEN SKY) |
Cold start time |
<=42s(OPEN SKY) |
Max location height |
18,000m |
Max speed |
515m/s |
FM transmit parameters | |
Chip team |
KT0803, SNR ≥ 60 Db |
Frequency scope |
76MHZ-108MHZ |
Frequency control step |
100KHZ |
Launch distance |
10m |
Antenna |
Speaker line |
USB parameters and function | |

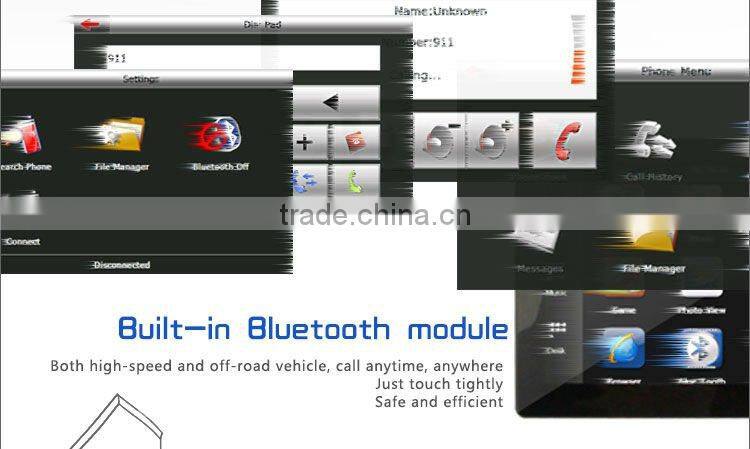

Bluetooth parameters | |
Transmit agreement |
MTK Bluetooth Spec. V1.2 Compliant |
Power mode |
CLASS2 |
Transmit speed |
Full Speed Bluetooth, 723Kbps |
Decode method |
Built in 16-bit Stereo Codec |
AVIN function parameters | |
Modulate method |
FM |
Working frequency |
2414Mhz/2432Mhz/2450Mhz/2468Mhz(optional) |
System format |
PAL/NTSC |
Transmit space |
40m~50m |
Transmit scope |
2400-2480MHZ |
Accessories | |
Car charger |
Input: DC +12V-24V Output: DC +5V, 1.5-2A, via USB |
MAP software |
PRO GARMIN PAPAGO R66 TOMTOM, PolNav, Navitel Etc. |
Language |
ENGLISH, ITALY, FRANCE,SPAIN,GERMANY, PORTUGAL, HOLAND, DENMARK, SWEDEN, NORWAY, GREECE, RISSIA, TURKISH, JAPANESE ,POLAND, ISREAL ,SERBIA, HUNGARY, CROATIAN, Etc. |
...
