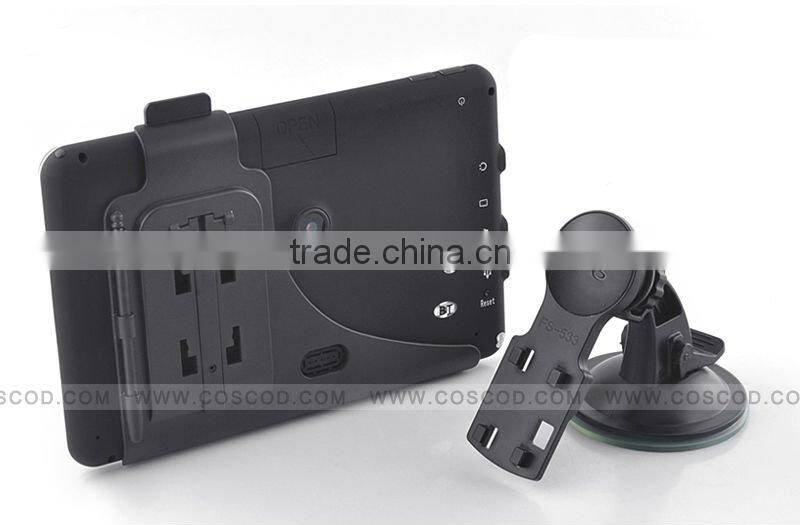

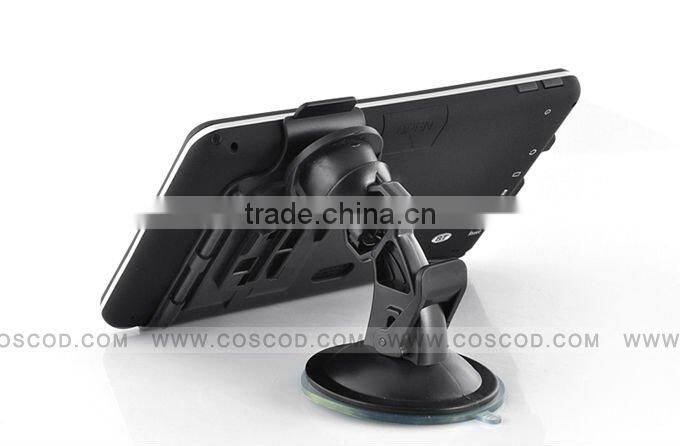

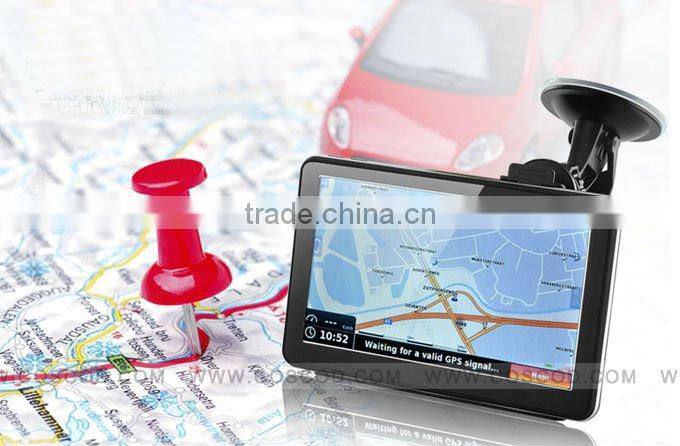

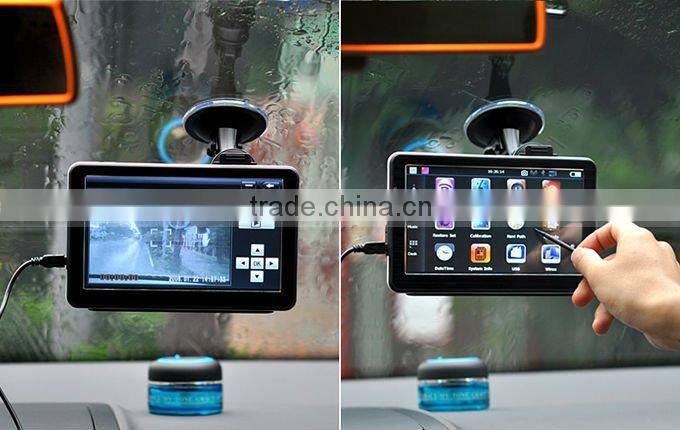

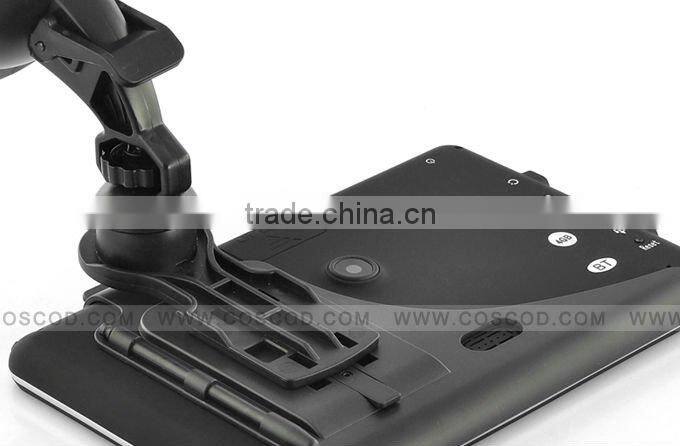

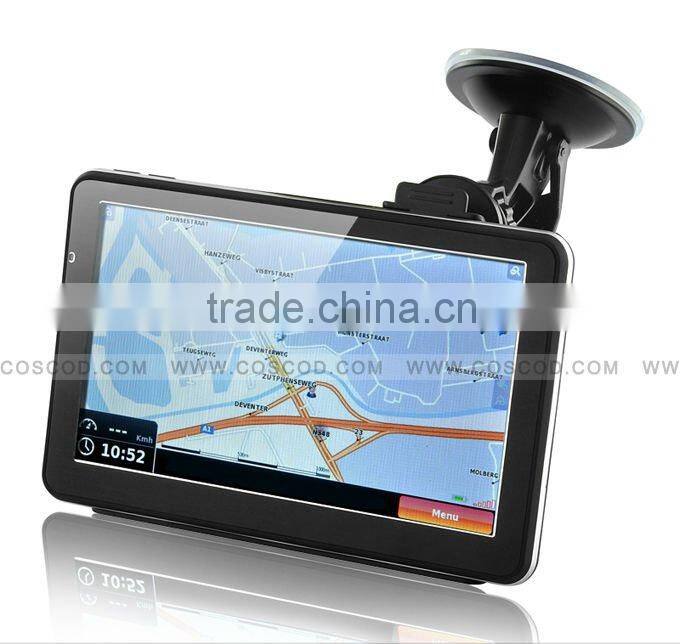

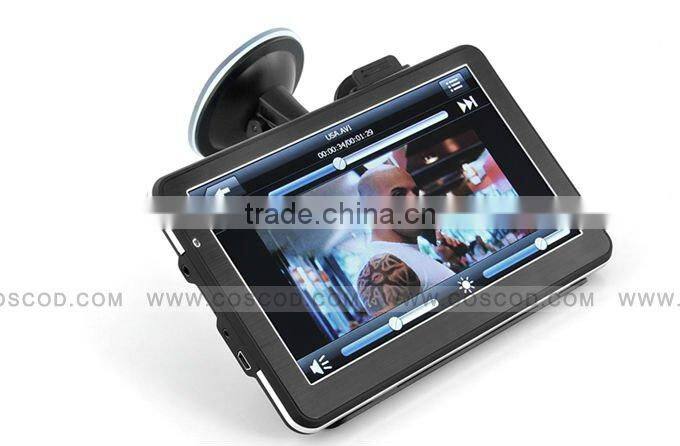

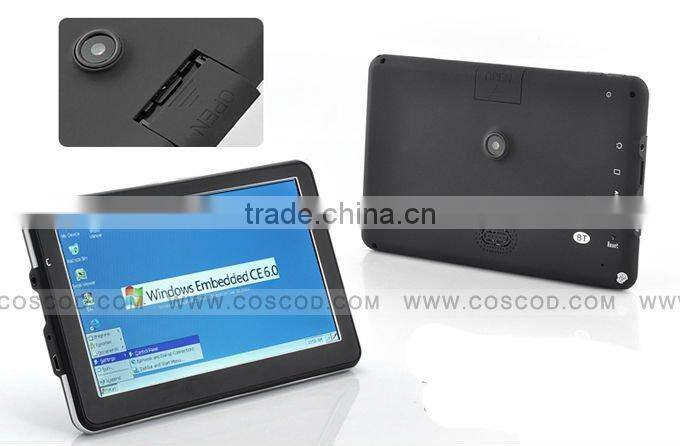

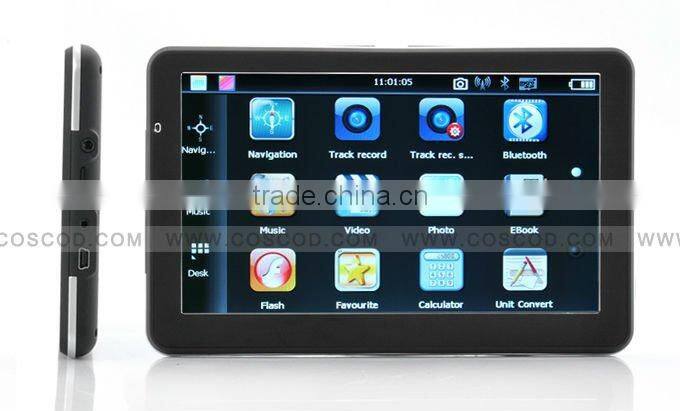

D071-Built in Car Camera and Bluetooth

SPECIFICATION

Environment parameters

GPS SIZE

180mm(length)*114mm(width)*14mm(height)

Working temperature scope

0°C to +60°C

Save temperature scope

-20°C to +80°C

Working humidity scope

45% to 80%RH

Save humidity scope

30% to 90%RH

atmospheric pressure

860MBar ~ 1060Mbar

System parameters

Main frequency

Dual core 468MHz

Type of main chip

MTK MT3351,ARM11 76JZ-S Core

InternalDDR2

128MB

Storage space

SD card space expand to 16GB

Navigation software storage

NAND Flash 128MB, SD micro card/SLC NAND FLASH

Operating System

WINCE 6.0 Core Version

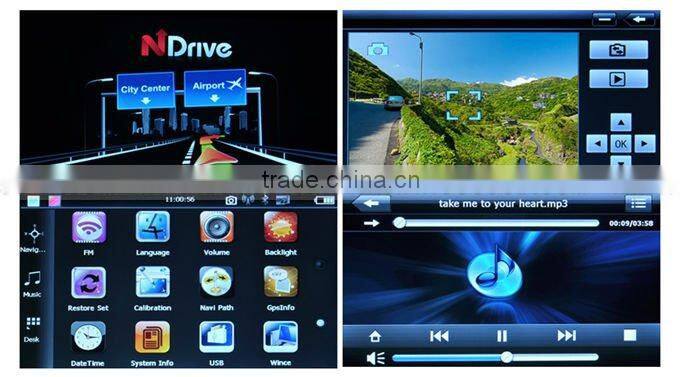

Multimedia parameters and function

Audio support type

MP3/WMA/WAV, LRC with the sing words

Video support type

MP4/MPG/WMV/AVI/3GP

Video decode function

QVGA 25/s

Picture and document browser

Support picture type

BMP/JPG/GIF/PNG

Support document

TXT

Basic parameters

Display size

7 TFT-LCD

Touch screen

Single 7inch touch screen

Display definition ratio

800*RGB*480 P

Display ratio

Audio input

Dual channel CD sound

Audio power

Earphone stereo dual channel 0.25W/CHANEL, single 8Ω/1W

Average power

1.5W

Standby power

<20mW

Battery type

Built-inPolymer battery or lithium ion battery800mAH

GPS parameters

Chips team

MT3329

Frequency

1.575GHZ

Channel Qty

24 Channels

Trace sensitive

-161dBm

Location accuracy

<10m

Speed

0.1m/s

Information update ratio

1HZ

Renew time

Average 0.1s(OPEN SKY)

Hot start time

<=5s(OPEN SKY)

Normal start time

<=35s(OPEN SKY)

Cold start time

<=42s(OPEN SKY)

Max location height

18,000m

Max speed

515m/s

FM transmit parameters

Chip team

KT0803, SNR ≥ 60 Db

Frequency scope

76MHZ-108MHZ

Frequency control step

100KHZ

Battery parameters and function

Battery type

Polymer battery or lithium ion battery Capacity:1100mAh

Bluetooth parameters

Transmit agreement

MTK Bluetooth Spec. V1.2 Compliant

Power mode

CLASS2

Transmit speed

Full Speed Bluetooth, 723Kbps

Decode method

Built in 16-bit Stereo Codec

AVIN function parameters

Modulate method

FM

Working frequency

2414Mhz/2432Mhz/2450Mhz/2468Mhz(optional)

System format

PAL/NTSC

Transmit space

40m~50m

Transmit scope

2400-2480MHZ

Video Parameter :

Lens

130 mega pixel color CMOS

Video

VGA 640 x 480

Frame rate

25 – 30 fps

View angle

75 degree

Other application

Start page

Can choose the navigation

Earphone jack

yes

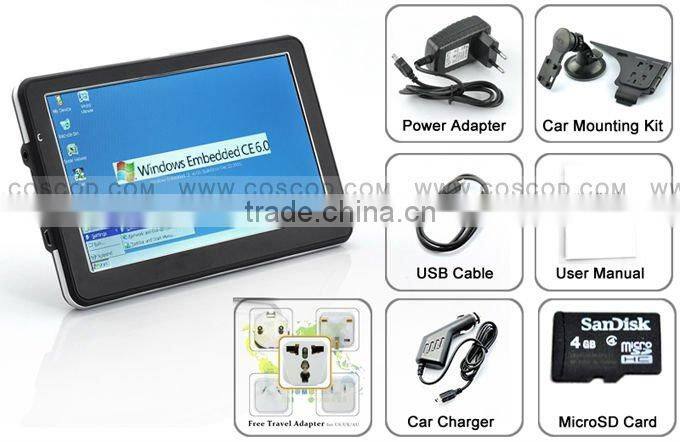

Accessories

Car charger

Input: DC +12V-24V Output: DC +5V, 1.5-2A, via USB

MAP software

IGO8 IGOPRO GARMIN PAPAGO R66 TOMTOM, PolNav, Navitel Etc.

Language

ENGLISH, ITALY, FRANCE,SPAIN,GERMANY, PORTUGAL, HOLAND, DENMARK, SWEDEN, NORWAY, GREECE, RISSIA, TURKISH, JAPANESE ,POLAND, ISREAL ,SERBIA, HUNGARY, CROATIAN Etc.
