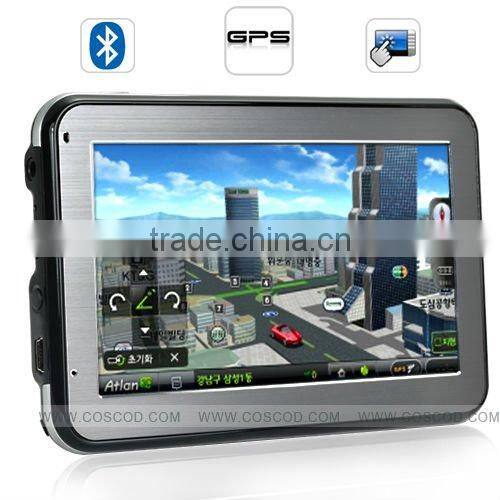

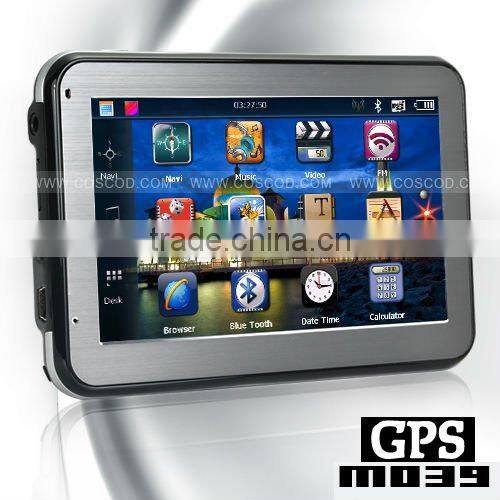

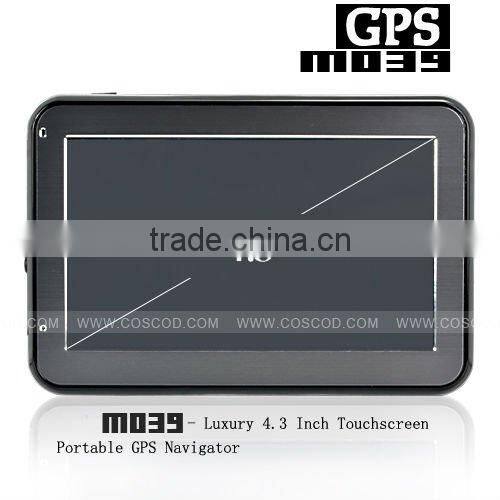

1TOP GPS for digital tv and Bluetooth call Phone
Digital TV(ISDB-T)
Bluetooth and av-input
Stable Quality,fast to access GPS signal
shenzhen manufacture
Leading the trend,fashing and hight quality gps in 4.3 inch.Passd by CE FCC
2: Main Function: TOP GPS Navigation
3: Memory: 128MB RAM
5: Supporting Audio(MP3, WMA, WAV) and Video(WMV9,DIVX
5.0,4.0,3.11,XVID MPEG2 up to Avi, WMV, MPG, MP4,)
6: Supporting Language:Simplified Chinese Italy,France,Spanish.
Germany,Portugal Character+English ect.
7: Supporting Function: , FM ,mp3,mp4
Bluetooth(optional)
AV-IN (optional)
DTV ISDB-T(optional)

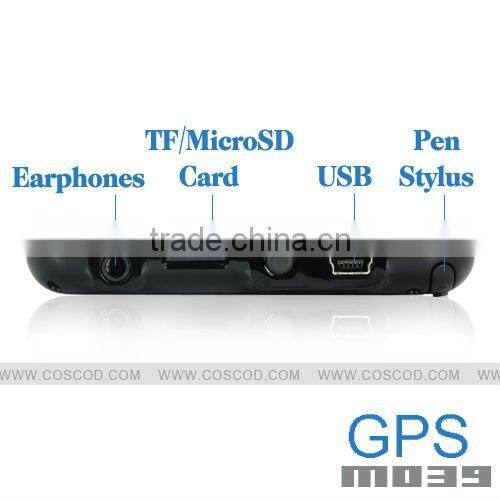

8: MINI USB port: USB Client 2.0, MINI USB port
9: AC Charger: 100/240V charger, 5V/1.5A;
car charger:DC12-24V/1.5A
11: Working humidity range: 45% to 80%RH
12: Storage humidity range: 30% to 90%RH
13: Built-in rechargeable Li-battery which can be powered by travel and car charger.
This handheld portable GPS navigation device utilizing a MTK chip for speed and the Windows CE 6.0 operating system for reliability and performance. Along with a rich media enhanced operating environment, this navigation system for you car gives the experience unmatched by any other high street overpriced SAT NAV System.
This GPS for car supports and is compatible with all the popular GPS maps to allowing you to experience amazing features like lane assist, voice guidance, 3-D views, intelligent route planning and more. There is a lot more you can do with this GPS unit, from MS Office Excel and Word docs, to an advanced multimedia player that guarantees a stress free drive with value added entertainment to keep you company.
| TOP GPS SPECIFICATION | |
System parameters | |
Main frequency |
Dual core 800MHz |
Type of main chip |
MTK MT3351,ARM11 76JZ-S Core |
InternalDDR2 |
128MB |
Storage space |
SD card space expand to 8GB |
Navigation software storage |
NAND Flash 4GB, SD micro card/SLC NAND FLASH |
Operating System |
WINCE 6.0 Core Version |
Multimedia parameters and function | |
Audio support type |
MP3/WMA/WAV, LRC with the sing words |
Video support type |
MP4/MPG/WMV/AVI/3GP |
Video decode function |
QVGA 25/s |
Picture and document browser | |
Support picture type |
BMP/JPG/GIF/PNG |
Support document |
TXT |
Basic parameters | |
Display size |
4.3 TFT-LCD |
Touch screen |
Single 4.3inch touch screen |
Display definition ratio |
480*RGB*272 P |
Display ratio |
|
Audio input |
Dual channel CD sound |
Audio power |
Earphone stereo dual channel 0.25W/CHANEL, single 8Ω/1W |
Average power |
1.5W |
Standby power |
<20mW |
Battery type |
Built-inPolymer battery or lithium ion battery 850mAH |
GPS parameters | |
Chips team |
MT3329 |
Frequency |
1.575GHZ |
Channel Qty |
24 Channels |
Trace sensitive |
-161dBm |
Location accuracy |
<10m |
Speed |
0.1m/s |
Information update ratio |
1HZ |
Renew time |
Average 0.1s(OPEN SKY) |
Hot start time |
<=5s(OPEN SKY) |
Normal start time |
<=35s(OPEN SKY) |
Cold start time |
<=42s(OPEN SKY) |
Max location height |
18,000m |
Max speed |
515m/s |
FM transmit parameters | |
Chip team |
KT0803, SNR ≥ 60 Db |
Frequency scope |
76MHZ-108MHZ |
Frequency control step |
100KHZ |
Launch distance |
10m |
Antenna |
Speaker line |
USB parameters and function | |
USB interface type |
USB 2.0(High Speed)Device |
USB function |
Connect computer Via USB cable connect PC |
Battery parameters and function | |
Battery type |
Polymer battery or lithium ion battery Capacity:800mAh |
Battery type |
Polymer battery or lithium ion battery. |
Bluetooth parameters | |
Transmit agreement |
MTK Bluetooth Spec. V1.2 Compliant |
Power mode |
CLASS2 |
Transmit speed |
Full Speed Bluetooth, 723Kbps |
Decode method |
Built in 16-bit Stereo Codec |
AVIN function parameters | |
Modulate method |
FM |
Working frequency |
2414Mhz/2432Mhz/2450Mhz/2468Mhz(optional) |
System format |
PAL/NTSC |
Transmit scope |
2400-2480MHZ |
Other application | |
Start page |
Can choose the navigation |
Earphone jack |
yes |
MAP software |
IGOPRO GARMIN PAPAGO R66 TOMTOM, PolNav, Navitel Etc. |
Language |
ENGLISH, ITALY, FRANCE,SPAIN,GERMANY, PORTUGAL, HOLAND, DENMARK, SWEDEN, NORWAY, GREECE, RISSIA, TURKISH, JAPANESE ,POLAND, ISREAL ,SERBIA, HUNGARY, CROATIAN, ARABIC |
Accessories:
TONP GPS for digital tv and Bluetooth call Phone
Car Charger
Power Adapter

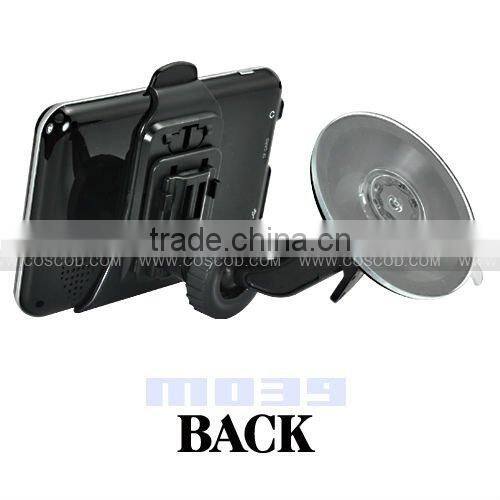

Car Mounting Kit
Mini USB to USB Cable
User Manual - English or RU
Certificate standard(Promise can pass these certificates, the cost should be afford by customers):
USA: FCC Part 15 class B for harmful emissions (U.S. Certification)
European country: CE EMC Directive 89/336/EEC (EU Certification)
TOP GPS OTHER PHOTO
TOP GPS for digital tv and Bluetooth call Phone
Digital TV(ISDB-T)
Bluetooth and av-input
Stable Quality,fast to access GPS signal
shenzhen manufacturer
...
