Round pipe roll forming machine from diameter 10-127mm

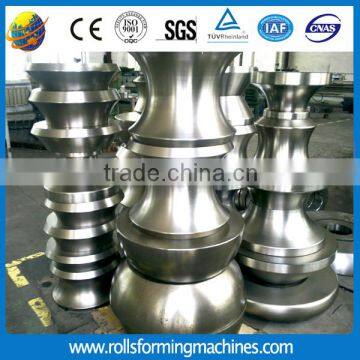

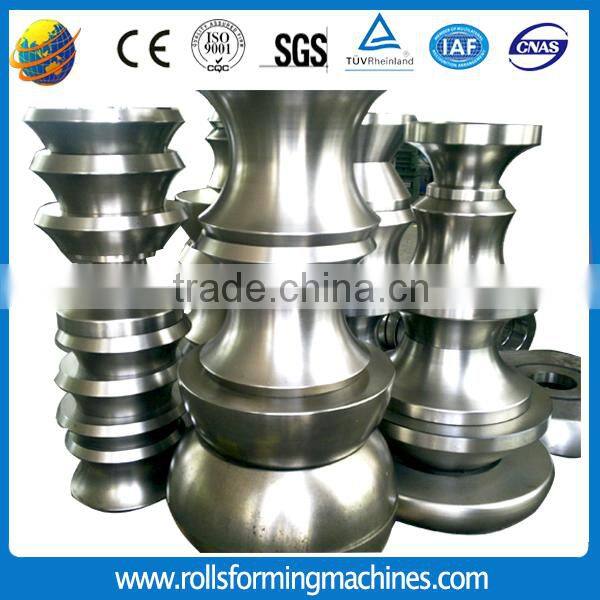

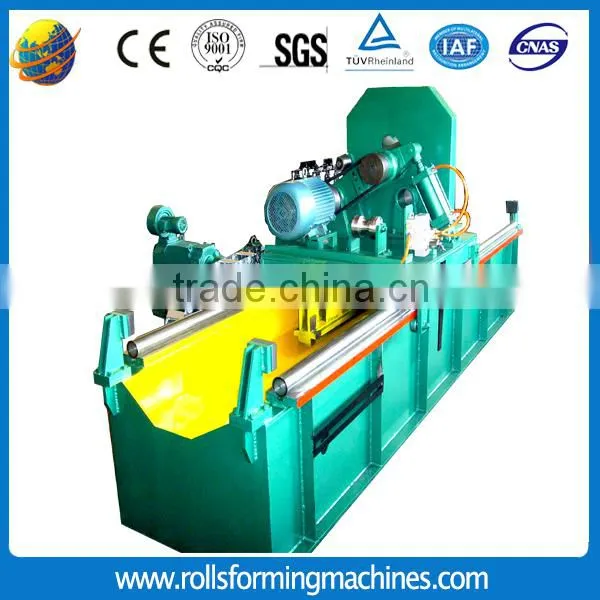

Round pipe roll forming machine could process carbon steel from material thickness from 0.4 to 5mm. And the round pipe diameter could make from 10 to 127mm. And the machine working speed could reach 90m/min. Here are some pictures for your reference:
The following types welding pipe roll forming machinery manufacturer:

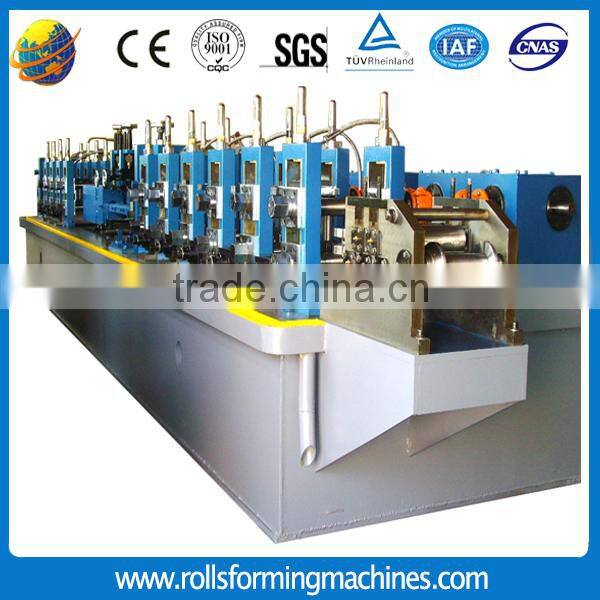

Here are round pipe roll forming machine :
Basic welding pipe roll forming machinery manufacturer parameters:
Main elements of welding pipe roll forming machinery manufacturer | ||
Name | Frame | Parameters |
Loading car | Up coil by hydraulic power and motored car by electric power | Outside diameter of coil:1000-1600mm Max coil weight:6T Car speed:6m/min |
Decoiler | Conehead style with slider, motored by hydraulic power to open coil with brake. | Coil outside diameter:1000—1600mm Max coil weight:6T Motor: 4KW Oil tank: 110mm for 500mm one time |
Unbender unit | Open coil and put it to next processor. It has four oil tanks for leveling coil, open coil, up coil and put it to feeder. | Supported coil width:160—480mm Coil thickness: 2.0 -5.0mm Motor:2.2KW |
Two roll pass coil feeder | Send coil to cut to length machine for getting valid width of coil and then welded coils together. AC motor, gear box transmission and power by hydraulic tank. | Supported coil width:160-480mm Thickness of material:2.0-5.0mm Feeding speed: 20m/min Motor: AC 11KW |
Cut to length machine | Remove Irregular part of coil head and end for welding with new coil. Dragon Gate style upper cutting. | Supported coil width:160-480mm Thickness of material:2.0-5.0mm Oil tank power: 10mpa |
Platform for welding | Welded coil with next for nonstop production. Double diameter cylinder for tighten coil then weld them together. | Supported coil width:160-480mm Thickness of material:2.0-5.0mm |
Four-roll coil feeder | This part is for making sure there is enough coil in the accumulator, deliver coil to the accumulator. | Roller diameter:180mm Rolling width:580mm Material:GCr15 Motor:YCT 30KW Speed:100m/min |
Cage Accumulator | For coil stock and nonstop production. There are four parts, fixed frame, adjustable frame, coil plate and roller for tightening coil. | You can adjust this accumulator according to the coil width. |
More about welding pipe roll forming machinery manufacturer
1. Installation and training:
a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and
also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, please arrange board and lodging and other neces
sary things.
2. After Service
a.One year guarantee for whole machine.
b.24 hours technical support by email or calling
c.If there is any problem found of the machine, we will repair it for free in one year.
