Help CenterColorful Stone Chip Coated Steel Roof Tiles Cold Roll Forming Machine
Related Products
-
Colorful Stone Coated Roofing Making Production LineUS$ 95,000 - 180,000MOQ: 1 Set -
Stone Coated Metal Roofing Tile MachineUS$ 95,000 - 180,000MOQ: 1 Set
-
Double Layer Color Stone Coated Steel Roofing Making MachineUS$ 95,000 - 180,000MOQ: 1 Set
-
Stone Coated Roof Sheet Cold Roll Forming MachineUS$ 95,000 - 180,000MOQ: 1 Set
-
Stone Coated Metal Roofing Used Roll Forming MachineUS$ 95,000 - 180,000MOQ: 1 Set
Specifications
colorful stone chip coated steel roof tiles cold roll forming machine:1.low cost
2.good sale-sercive
3.low Energy consumption

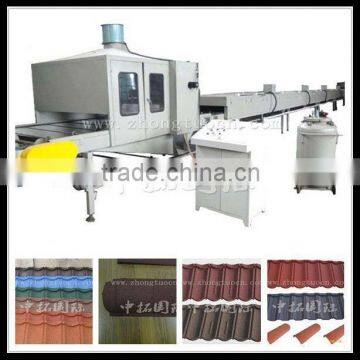

colorful stone chip coated steel roof tiles cold roll forming machine
colorful stone chip coated steel roof tiles cold roll forming machine : coated metal roof tile is a modern environmentally friendly roofing material with the basic of
0.4mm Al-zine coated steel.
Covering color vermiculite surface which carried under the high temperature technology.
It is high-performance, stable, energy-efficient and easy operation.

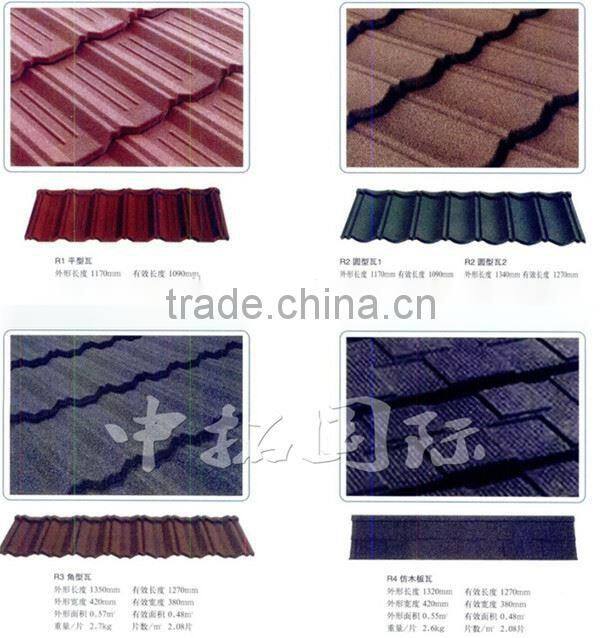

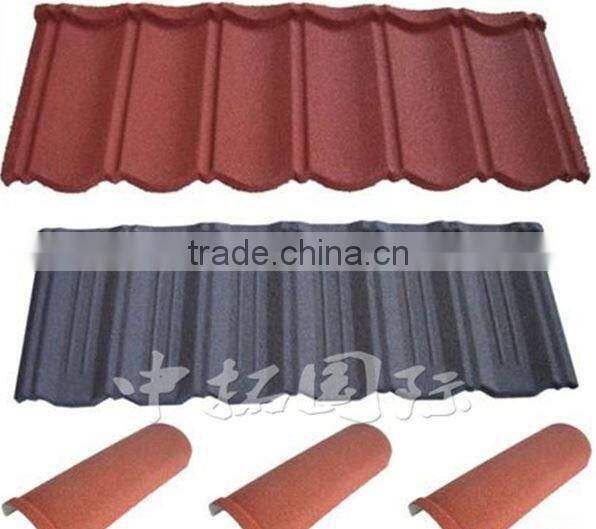

Sample roof panel:
NO. 1 Auto bottom glue spraying section | |
Appearance size |
4000*1000*2000mm |
Driving section |
3KW Excitation motor or frequency speed regulation (AS per customers’ requirements ) |
Automatic pressure spray tank |
1 set ; Capability: 200kg ; Range: 0.6~1Mpa |
Automatic glue machine motor |
Servo motor ; Power: 750w ; PLC |
Automatic spray gun |
4 set (spare parts) |
Dust collecting fan |
1 set ; Power: 200w |
Damp proof lamp |
1 pc ; Power: 100w |
Conveying device |
Chain reciprocating |
Air compressor |
1 set ; Power: 7.5kw |
Dust control of axial flow fan |
1 set ; Power: 200w |
Agitator |
1 set ; Power: 1.5kw |

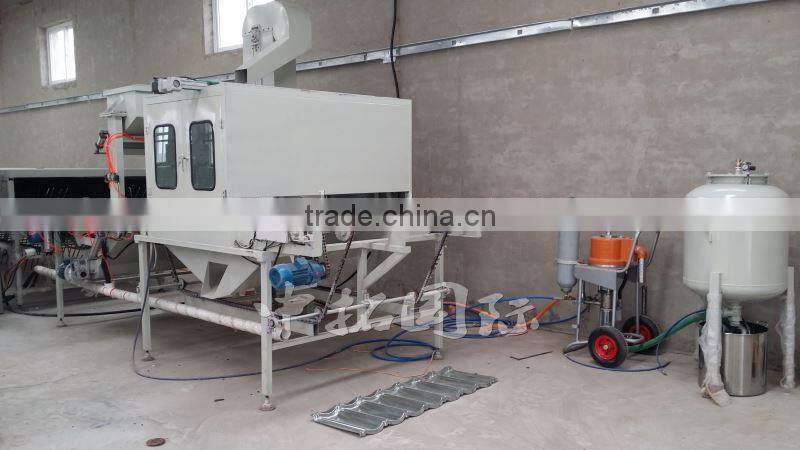

NO. 2 Auto stone coated section | |
Appearance size |
3500*1000*1500mm |
Framework |
Steel welding |
Conveying device |
Chain reciprocating |
Automatic sand hopper |
1 set ; Capability: 200kg |
Bucket lift |
1 set |
Manual sandblast gun |
4 sets |
NO. 3 The first time drying section | |
Appearance size |
25000*1000*1200mm |
Framework |
Steel welding |
Frame type thermal insulation wall |
1.2mm cold steel with Rock wool |
Automatic temperature controller |
4 sets ; Range: 0°~160° |
Infrared heating tube |
30pcs ; Power: 30kw |
Conveying device |
Chain reciprocating |
Air cooling device |
1 set ; Power: 200w |
NO. 4 Auto face glue spraying section | |
Appearance size |
3000*1000*2000mm |
Framework |
Steel welding |
Damp proof lamp |
1 pc ; Power:100w |
Automatic pressure spray tank |
1 set ; Capability: 200kg ; Range: 0.6~1Mpa |
Conveying device |
Chain reciprocating |
Automatic spray gun |
4 sets (spare parts) |
Manual patch glue gun |
4 sets |
Dust control of axial flow fan |
1 set ; Power: 200w |
Automatic glue machine motor |
Servo motor ; Power: 750w |
NO. 5 The second time drying section | |
Appearance size |
30000*1000*1200mm |
Framework |
Steel welding |
Frame type thermal insulation wall |
1.2mm cold steel with Rock wool |
Automatic temperature controller |
4 sets ; Range: 0°~160° |
Infrared heating tube |
30pcs ; Power: 30kw |
Conveying device |
Chain reciprocating |
Air cooling device |
1 set ; Power: 200w |
About the workers need:
PLACE |
QTY. |
Panel loading |
one |
Bottom spraying |
one |
Stone coating |
one |
Fill stone |
one |
Face glue |
one |
Bottom glue mixing |
one |
Finish goods receiving |
one |

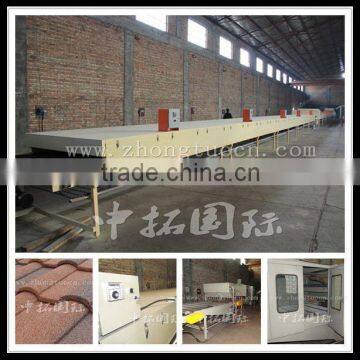

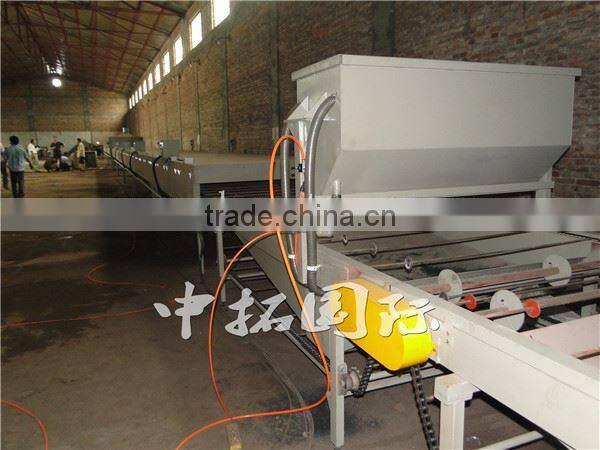

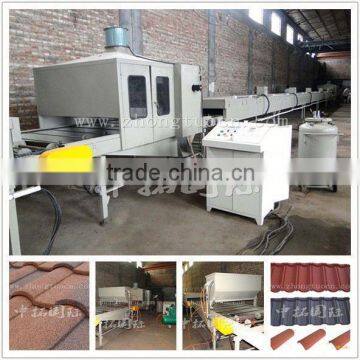

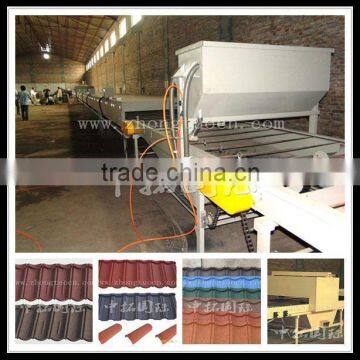

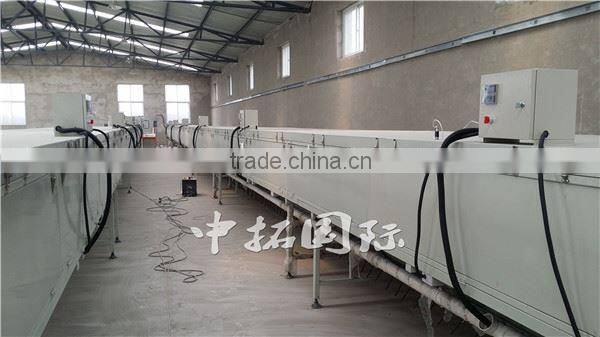

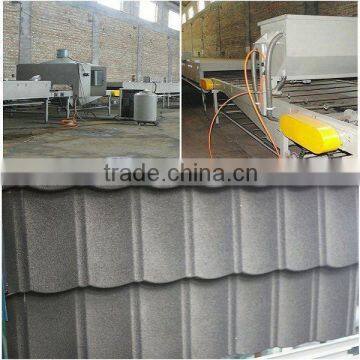

the picture of production house
1). One year, and we will provide the technical support for the whole life.
2).Training: the buyer should charge of visa, return ticket, food and accommodation
overseas and USD50/person/day for salary.
3). Need one technicians
4).Training time: one week (contains the time of installation and adjustment)
Payment Terms: 30%T/T after signed the contract,balanced before delivery
