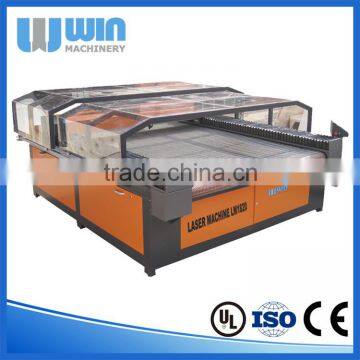

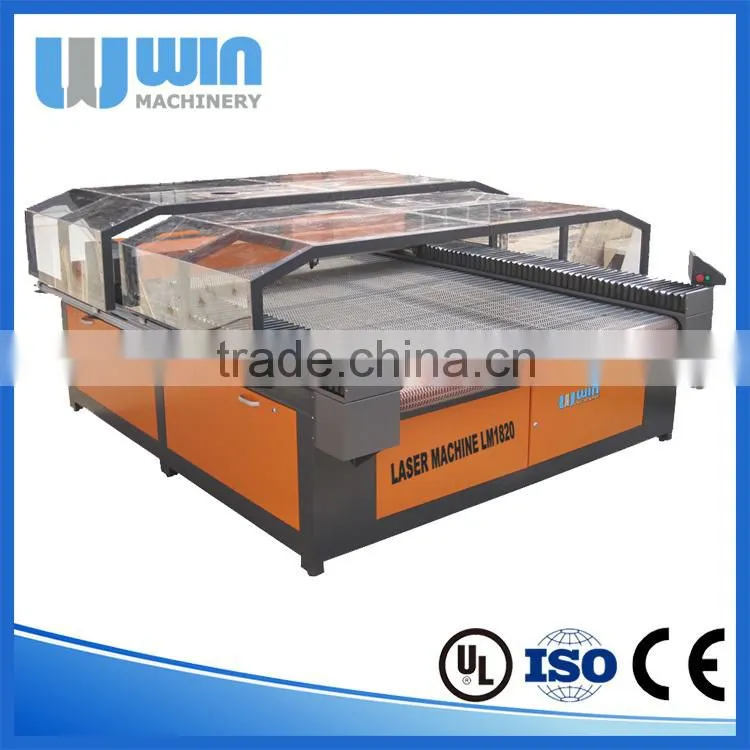

High Efficiency CNC Co2 Laser Cutting Machine
1. Machine Introduction
The CNC Co2 Laser Cutting Machine features digital DSP control panel, HIWIN rails, the machine can be matched to AutoCAD,coreIDRAW CAD and all other graphics processing softwares for outputing original graphics.This series machines firstly use USB port data interface which supports hot-plugging and momentary data transmission to realize high efficiency without accounting computer resource.The LCD controlling panel brings friendly computer-human interface and easy operation.
2. Advantages
1.)High-speed, speeds of up to 60000mm / min, effectively improve the work efficiency.
2.)Facilitate discharge and reclaimer system, with lifting up and down to adjust the front-end can be completely open.
3.)Auto feeding system, automatic upload and download material, save manual cost and improve working efficiency.
4.)Support AUTOCAD, CORELDRAW, lasercut5.3 , PHOTOSHOP and other design software, human-machine interface is friendly, close to the industry needs
5. )Double heads, can do two work at one time.
3. Applications
Advertisement, arts and crafts, leather, toys, garments, model , building upholster, computerized embroidery and clipping, packaging and paper industry, Vector Cutting, Raster Engraving, Signmaking, etc.
4. Materials Best for Plasma Cutting
Genuine leather, artificial leather, soft leather, decorative leather, packing leather etc. All kinds of leather materials , pure cotton , real silk , all kinds of chemical fiber, cowboy, and so on. All kinds of textiles materials or nonwoven material.
5. Performance Parameter
| Number | Description | Parameter |
| 1 | Processing area | 1800mm*2000mm/ 6' *9.84' |
| 2 | Laser power | 80W ,100W,130W,150W,180W |
| 3 | Laser type: | Co2 glass laser tube |
| 4 | Software: | Laser cut 5.3 |
| 5 | Dimension: | 3m*2.3m*1.3m |
| 6 | Engraving speed | 1-6000mm/min |
| 7 | Cutting speed | 1-1000mm/min |
| 8 | Cutting thickness | 0-20 acrylic (others determined by materials) |
| 9 | Resolution ratio | ≤0.0125mm |
| 10 | Position system: | Red dot |
| 11 | Interface: | USB |
| 12 | Minimum shaping character | letter 0.5mm, Chinese 0.5mm |
| 13 | Support graphic format | DST, PLT, BMP, DXF |
| 14 | Gross power | 1000W |
| 15 | Driving mode: | DC0.8A 24V stepper motor |
| 16 | Cooling mode: | Circulation water cooling |
| 17 | Working voltage: | AC220V/50HZ or 110V/60HZ or depend on customer |
| 18 | Operating temperature | 0-45C |
| 19 | Operating humidity: | 5-95% |
| 20 | Packing: | wooden box |
| 21 | Guarantee time: | 1 year, laser tube 3 months |
| 22 | Option: | Rotary attachment for column materials |
| 23 | Operation: | Video to tell customer how to operate the machine |

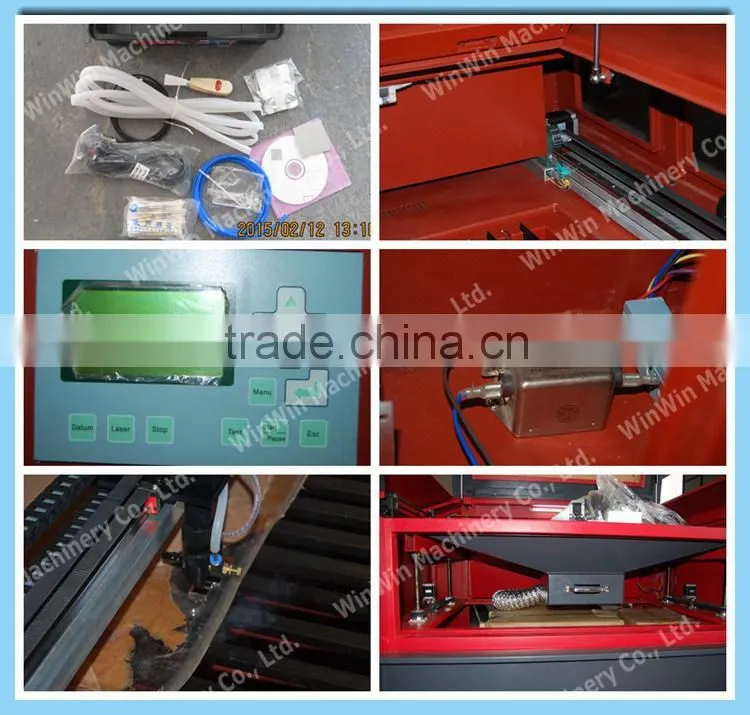

6. Details
7. Options
8. Packing&Delivery
9. Guarantee & After Sales Service
1.)The machine is guaranteed for 12 months.
2.)Technical support by phone, e-mail or MSN around the clock.
3.)Friendly English version manual and operation video CD disk.
