rock wool sandwich board production line
Rock wool sandwich board production line including unwinding, before cutting, film,
beading / molding, rock wool and spray delivery, Edge foam, continuous curing, cutting and other functions, high degree of automation, stable performance.Edge polyurethane foam systems, automatic feeding system, to ensure that
the raw material requirements in full accordance with the ratio of mixing, spray evenly; using a reliable foam technology to ensure uniform sheet foam, dense, sheet closely connected.The production line is equipped with automaticcontrol system, userfriendly interface for easy operation, monitoring, advanced computer control, easy to adjust the entire
line of argument, effectively ensure the production line stable and efficient operation.

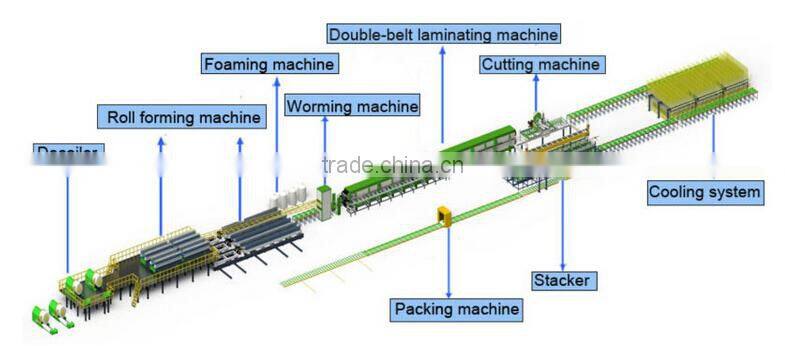

rock wool sandwich board production line production Process:
(The upper)Dncoiler ---Cutting ---Film---Beading---Roll forming
(Lower part)Uncoiler ---Cutting →Film→Beading→Roll forming /
---Rock wool delivery---Glue---Sealing side foam--- laminating machine with Foam,Solidify,Roll forming---
Cutting ---Run-out table

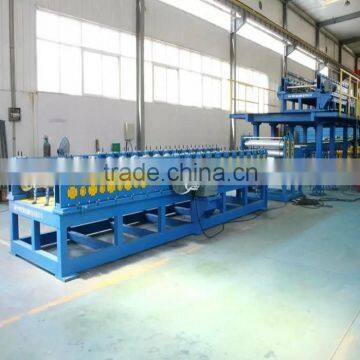

Details of rock wool sandwich board production line :

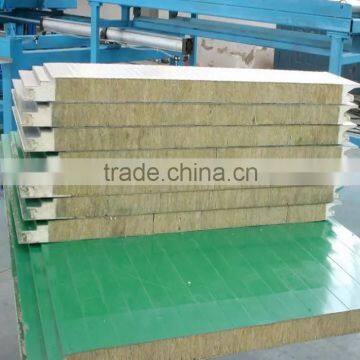

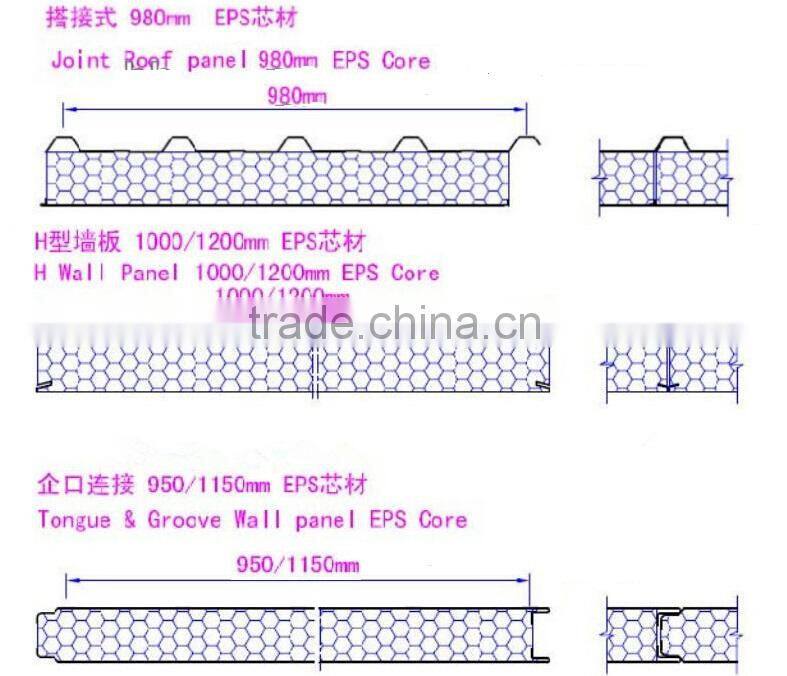

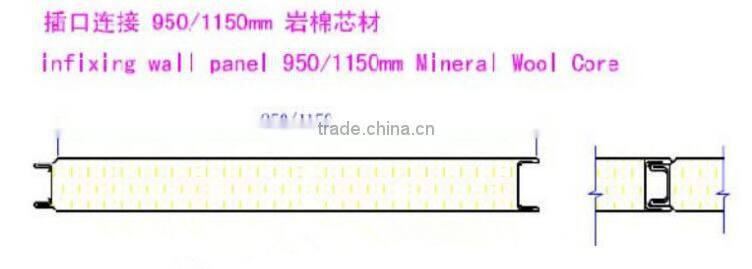

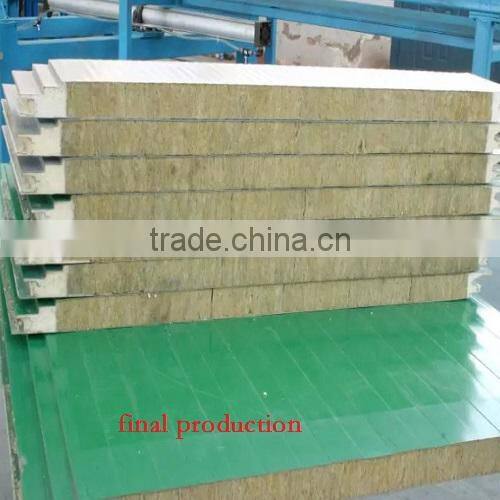

Panel showing :
Parameters of sandwich panel roll forming machine :
Name |
Parameters |
QTY |
|
Raw material |
Material:Colored steel Coil thickness:0.4~0.6mm Coil weight:Max 5T Coil width: Max 1250mm Coil inner diameter:ø508mm Coil outer diameter:ø1100mm |
|
|

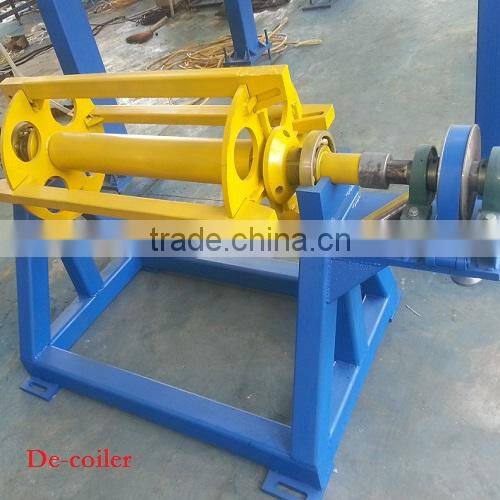

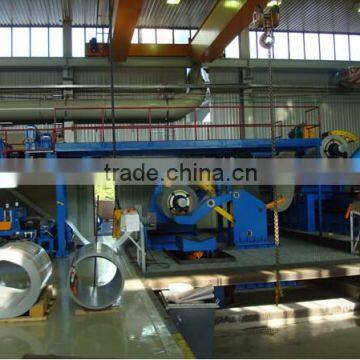

Un-coiler |
Bear weight:5T Mandrel expansion :465 – 515 mm |
2 |
|
Broach |
Effective cutting width:1300mm Cutting thickness:0.4-0.6mm |
2 |
Laminating machine |
PVC coil outer diameter:300mm PVC coil inner diameter:70-82mm Maximum coil width:1250mm |
2 |

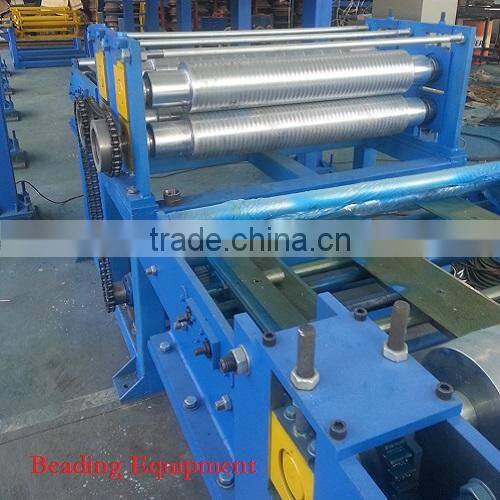

Beading Equipment |
Speed:10m/min Power:2.2kw or according to the profile Diameter of roller:according to the profile Power supply:motor Material of roller:l 40Cr quenched and tempered, chrome |
2 |

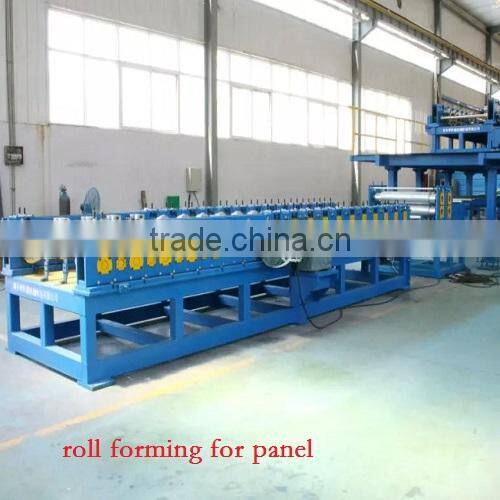

Roll forming |
Frame:Cantilever structure Speed:10m/min Power:4kw up, 7.5kw down Shaft diameter:50 mm Distance roller head:350mm Rollers: 11 up, 18 down |
2 |
Rock wool delivery device |
Motor Power:2*1.5Kw Speed:8m/min The maximum transport width:1200mm |
1 |
Dispensing Systems |
Effective volume:150L Unit motor power:10KW |
1 |

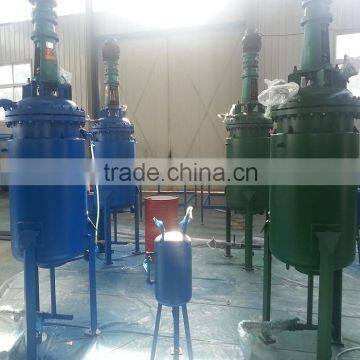

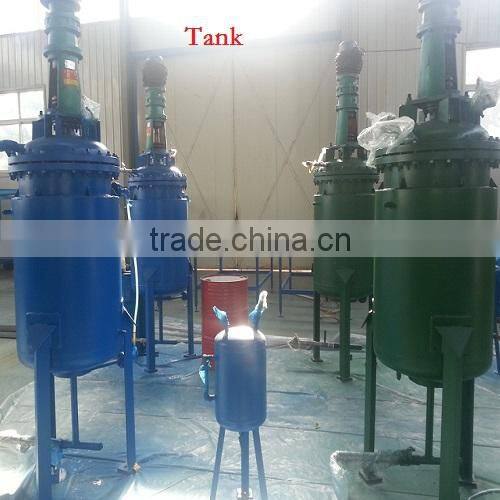

Tank with Stirrer |
Effective volume:150L Unit motor power:10KW |
1 |
Roll forming machine |
Length:10mm Width:1200mm Lifting speed:200mm/min Drive motor power:2.2Kw*4 Lifting motor power:1.5Kw*4 Speed:10 m/min |
1 |

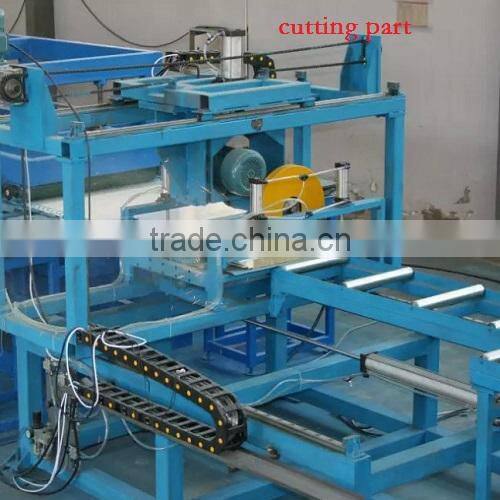

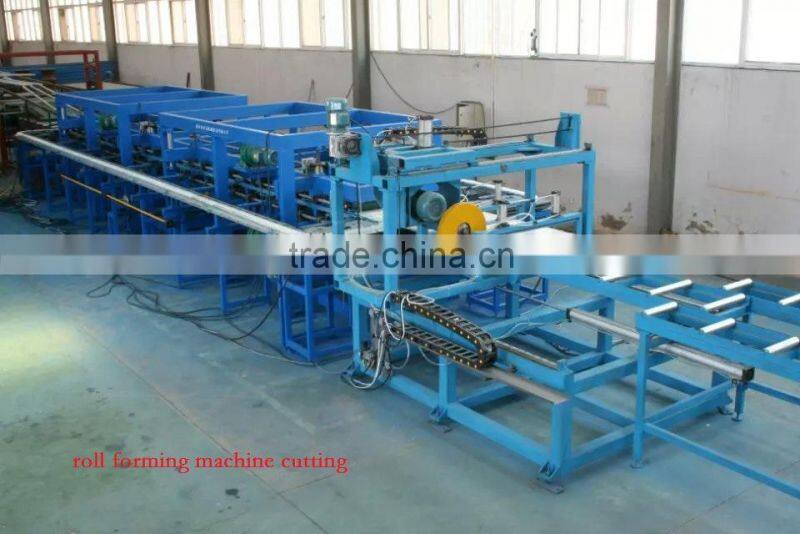

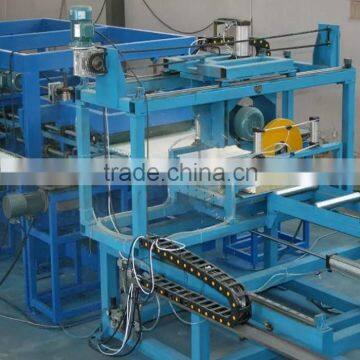

Cutting part |
Cutting motor power:7.5Kw Lateral movement motor power:1.1 KW Traversing speed:150 mm/s Cutting width:1300 mm Cutting error:±2mm |
1 |
PLC control system |
In accordance with international standards to control cabinet,operating station.Mitsubishi PLC, Inovance inverter, |
Packaging Detail of sandwich panel roll forming machine :
1. Installation and training of rock wool sandwich board making machine :
a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine,
and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, please arrange board and lodging and other ne
cessary things.
2. After Service rock wool sandwich board making machine
a.One year guarantee for whole machine.
b.24 hours technical support by email or calling
c.If there is any problem found of the new building materials making machine, we will repair it for free in one year.
Cangzhou ZHONGTUO International Trade Co., Ltd is a professional manufacturer and exporterwhich
has its own factory and also cooperate with several production factories and associated nterprises, conc
erning with the design, development and production of cold roll forming machines,material of building. It
is located in northwest of CangZhou, as a long history of cold roll formingmachine production base. All
products comply with international quality standards and are greatlyappreciated in variety of different ma
rkets throughout the world, such as Asia, Africa, Europe,South America, and Australia and so on.
1. Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.We
need your machines running in order to keep your business running.
2. How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can
pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),
then we can pick up you.
3. What can you do if the machine broken?
Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts
replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we
can through negotiationfor to solve the problems,and we supply the technical support for the whole life
of the equipment.
4. Can you be responsible for transport?
Yes,please tell me the destination port or address.we have rich experience in transport.
5. You are trade company or factory?
We are trade company but we also have own factories. Building trade company is just for exporting various
types of cold roll forming machines.
6. Why your price is higher than others?
As we persist on that each factory should put quality at the first place. We spend time and money on de-
veloping how to make machines much more automatic, accurate and high quality. We can make sure that
our machine could use more than 20 years without any problem. We can provide 2 years free quality as-
surance.
7. How long the machine could be made?
Normally speaking, welded pipe making machine could be made without 45 working days. If you need
machines in a hurry, we can make it for you less than a month.
