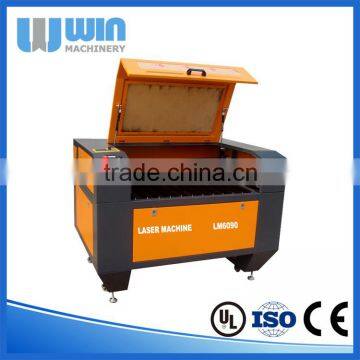

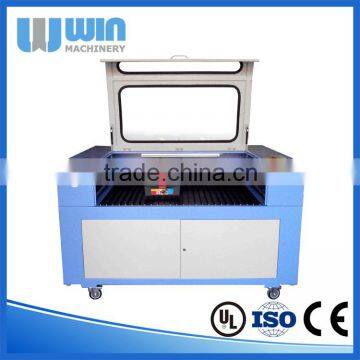

China Machine WL1390E Shoe Design Laser Engraving Machine
|
|
|
| Machine for Cutting Paser |
Machine for Cutting Cloth |
|
|
|
|
| Laser Machine for Cutting Acrylic |
Machine for Engraving Wood |
Machine for Cutting Wood |
1. Machine Introduction
The Shoe Design Laser Engraving Machine features digital DSP control panel, HIWIN rails, the machine can be matched to AutoCAD, Corel DRAW CAD and all other graphics processing softwares for outputing original graphics. This series machines firstly use USB port data interface which supports hot-plugging and momentary data transmission to realize high efficiency without accounting computer resource. The LCD controlling panel brings friendly computer-human interface and easy operation.
2. Advantages
1).The "front" and "back" of our laser machine can be open, suitable for super-length material process.
2).Exclusive no water warning and automatic protection system, to protect the working life of laser tube effectively. The power control system has exclusive automatic protection equipment to ensure the stability and safety of the machine to the best.
3).LCD control panel in English, convenience of operation control.
4).Import liner bearing with high engraving precision
5).offline control system which can not only work without computer, but also connect to U disk, USB communication
6).Imported metal mirrors, with good ability of reflection and focusing, long working life.

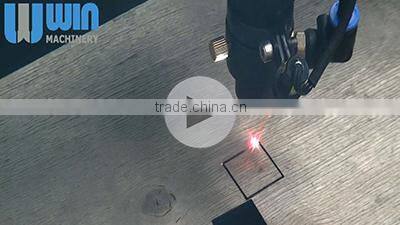

7).Red dot position system realizes the exact position without laser.
8).Auto Focus technology, realize "easy focus & high efficiency" in real, not only a word.
3. Applications
Advertisement, arts and crafts, leather, toys, garments, model , building upholster, computerized embroidery and clipping, packaging and paper industry, Vector Cutting, Raster Engraving, Signmaking, etc.
4. Materials Best for Plasma Cutting
Wood, bamboo, jade, marble, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass Acrylic, ABS Plastic, Carbon Composite, Cardboard, Cork, Mylar, Plastic and other nonmetal materials.
5. Performance Parameter
| Number | Discription | Parameter |
| 1 | X,Y Working Size | 1300X900mm |
| 2 | Laser Types | Hermetic And Detached CO2 Laser Tube |
| 3 | Laser Power | 60W,80W,100W, 130W |
| 4 | Engraving Speed | 50-50,000mm(1.97-1970inch)/min |
| 5 | Cutting Speed | 18,000mm(709.2inch)/min |
| 6 | Reposition Accuracy | 0.01mm |
| 7 | Location precision | <0.01mm |
| 8 | Minimum Letter Size | 1.5mm(0.05inch) |
| 9 | Driving system | stepper |
| 10 | Cooling mode | Water-cooling and protection system |
| 11 | Auxiliary Devices | Exhauster And Exhaust Pipe |
| 12 | Software | Lasercut 5.3 |
| 13 | Voltage | 220V(110V),50/60Hz |
| 14 | Total Power | 1100W |
| 15 | Packing Size(LXWXH) | 2000X1500X1300mm |
| 16 | G.W. | 350KG |
| 17 | Supported Image Form | BMP, CIF, JPEG, TGA, TIFF, PLT, AI, DXF, DST (TIANDAO Embroidery Software), DWG, CDR, etc |
| 18 | Optional | Up&Down work table, Digital display, Rotary Clamp, Red light pointer, Auto focus, water chiller |

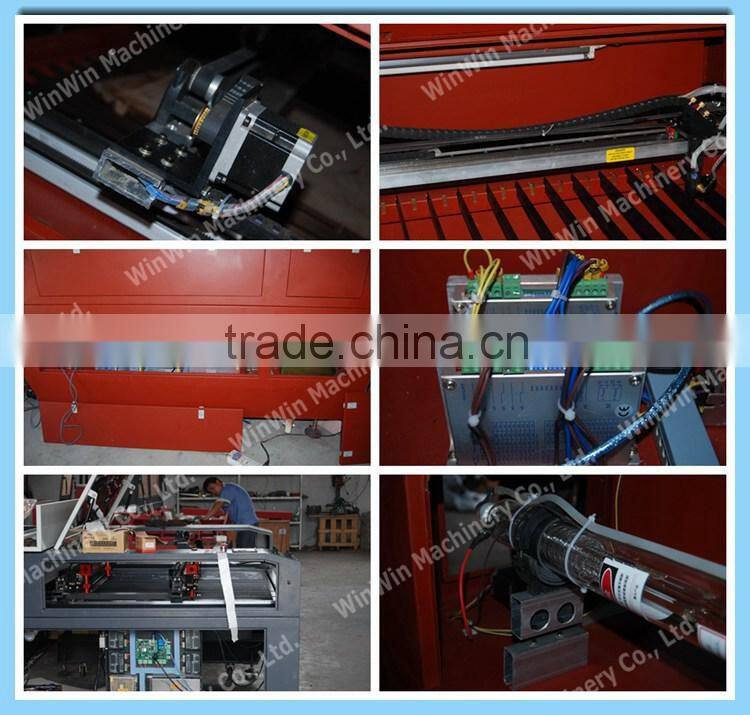

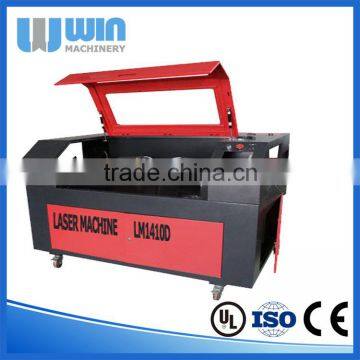

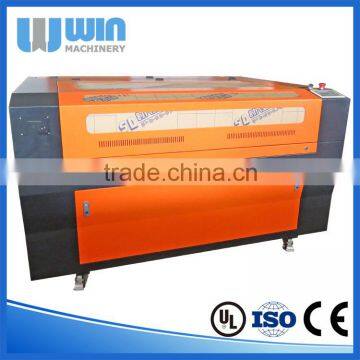

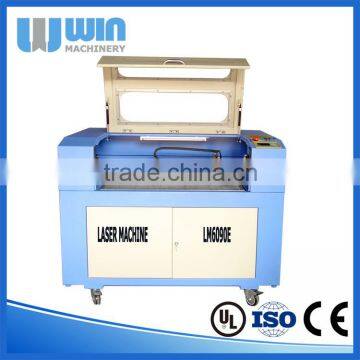

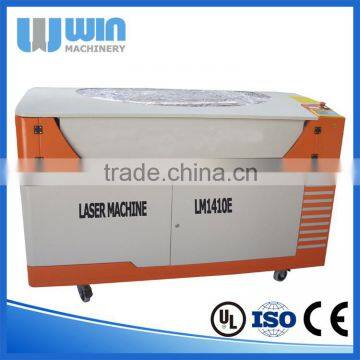

6. Details

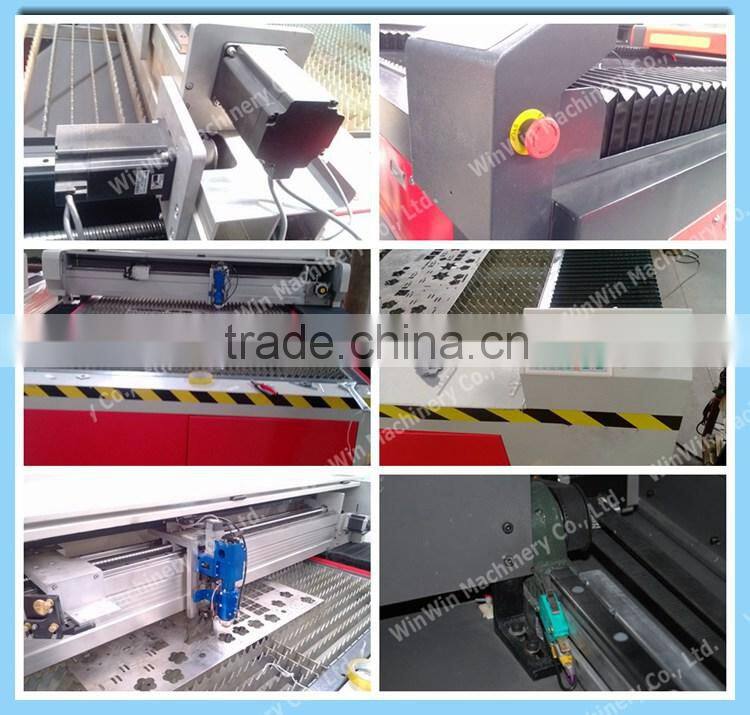

7. Options

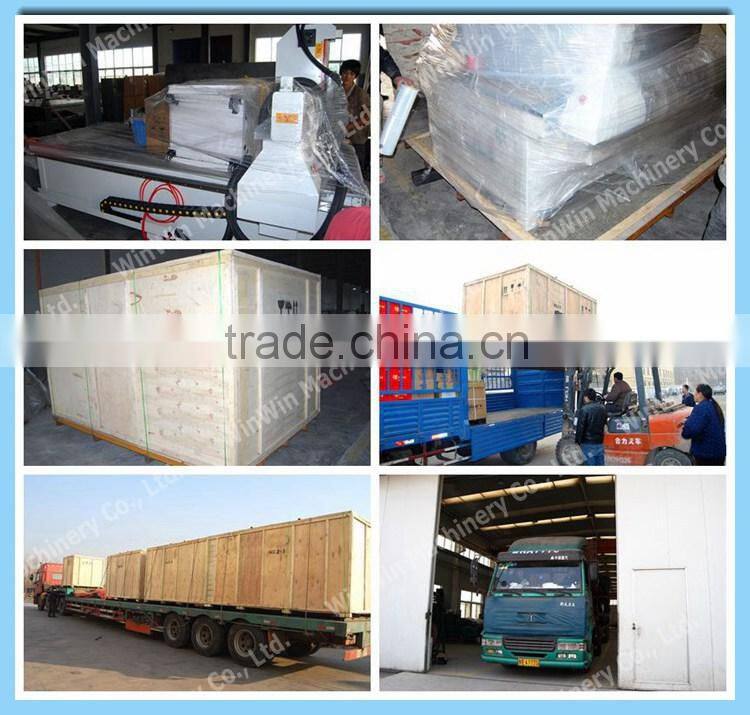

8. Packing&Delivery
9. Guarantee & After Sales Service
1.)The laser machine is guaranteed for 12 months.
2.)Technical support by phone, e-mail or MSN around the clock.
3.)Friendly English version manual and operation video CD disk.
