Specifications
1. low noise, easy operate2.PLC control system, full automatic
3.adopt after-cutting
4.good after-service

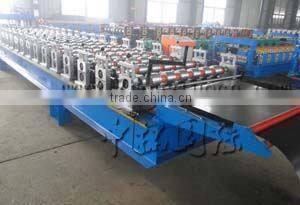

Full Automatic Metal Roofing Roll Forming Machine for Aluminum Corrugated, Corrugated Roll Forming Machine
1.. Full Automatic Metal Roofing Roll Forming Machine for Aluminum Corrugated, Corrugated Roll Forming Machine Processing technique and deployment

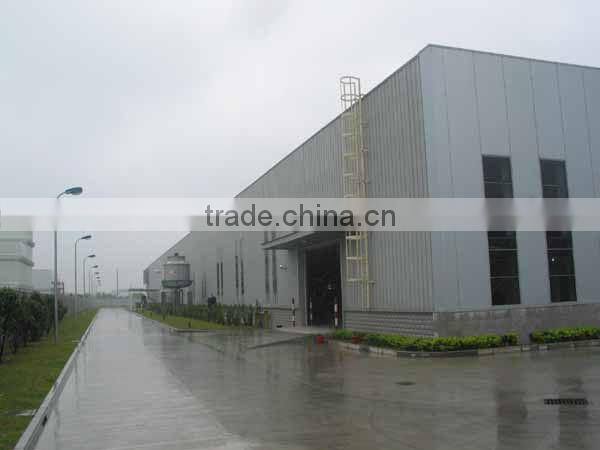

Full Automatic Metal Roofing Roll Forming Machine for Aluminum Corrugated, Corrugated Roll Forming Machine by the uncoiling,feeding, leveling,roll forming,shearing, production, Production of color plate appearance of smooth beautiful paint pattern uniform, high strength, durable, widely used in industrial and civil buildings, such as factories, warehouses, stadiums, exhibition halls, theaters and other room surfaces and walls.
User parameters: the number of sheets, the length of the first section, distal, pitch, number of sections, pre-press section, and so on.

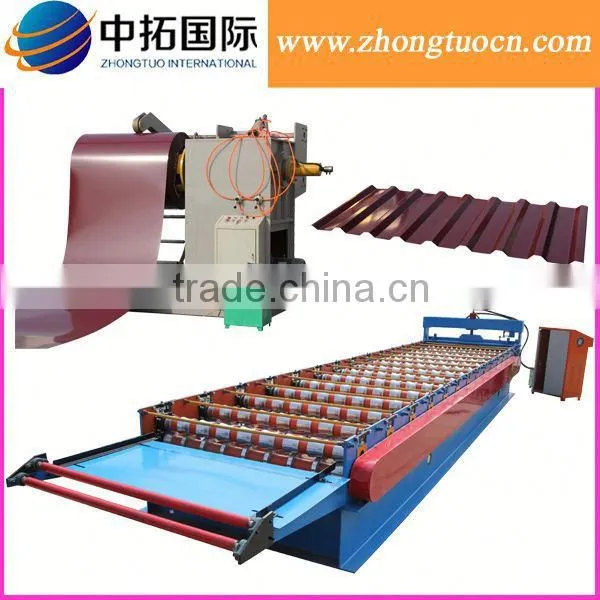

Flow chart : Decoiler-- Roll Forming--PLC System—Hydraulic System –Pressing --Cu tting —Output Table
No. |
Name |
Unit |
Qty |
1 |
Decoiler |
set |
1 |
2 |

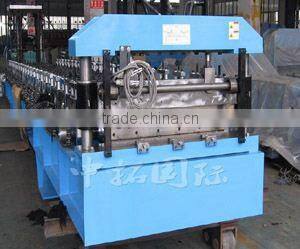

Main Machine for roll forming |
set |
1 |
3 |
Control System(PLC) |
set |
1 |
4 |

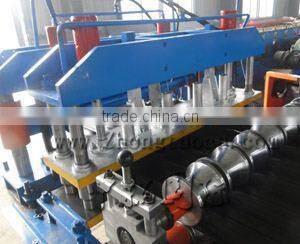

Pressing System |
set |
1 |
5 |
Cutting System |
set |
1 |
6 |
Output Table |
set |
1 |
| Full Automatic Metal Roofing Roll Forming Machine for Aluminum Corrugated, Corrugated Roll Forming Machine Description | Introduction |
| Working efficiency |
8-12m/min
|
| Thickness of Material |
0.3--0.8mm (can be changed according to customers need)
|
| Width of material |
914mm;940mm;1000mm;1200mm;1220mm;1250mm According to customers need
|
| Control system |
PLC(The brand can be choose)
|
| Uncoiler system |
5Ton Manual Operation(1250mm width)
|
| Forming by rolling |
13 rows (According to the machine design)
|

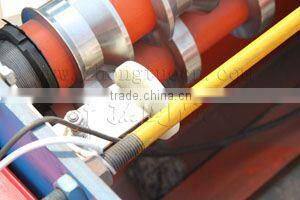

| Roller material |
GCR15 Aluminium processing after quenchin HRC58-62°C,Chrome plated
|
| Shaft and the diameter of axle |
45#Aluminium-processing ,diameter of axle=80mm
|
| Main part power |
5.5kw
|

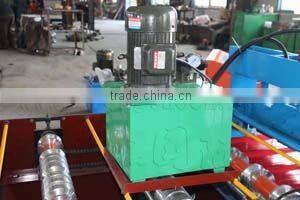

| Hydraulic motor power |
4kw
|
| Hydraulic pressure |
12Mpa
|
| Scissor material |
Cr12Mov, herd steel HRC 58-62°C
|
| length tolerance |
±1.5mm
|
| voltage |
380V, 50HZ,3 phase (adjustable by customer needs)
|
| Frame form |
Middle plate
|
| Driving Method |
Chain
|
| Color |
Yellow and blue(adjustable)
|
| Size |
length*Width*Height - 8.2*1.65*1.5m
|
| weight |
about 5.0T
|
| Package |
Nude package in 1*20GP container
|
| Delivery date |
30 working days
|
| Payment Method |
30% T/T in advance and balance 70% after inspection confirmation before shipment.
|
|
If you have your own drawing, please send it to us, we can design the machine, depend on your drawing.
| |

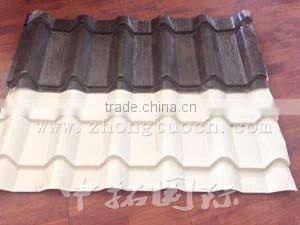

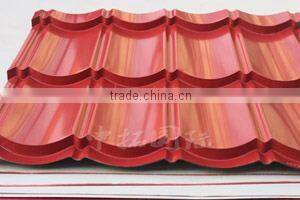

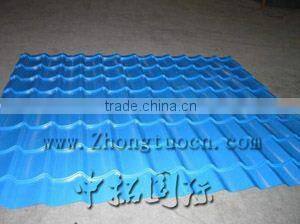

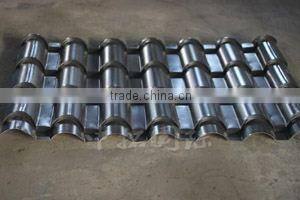

some common types for reference(can be design as customers required)
the finished roofing sheet can be used for
