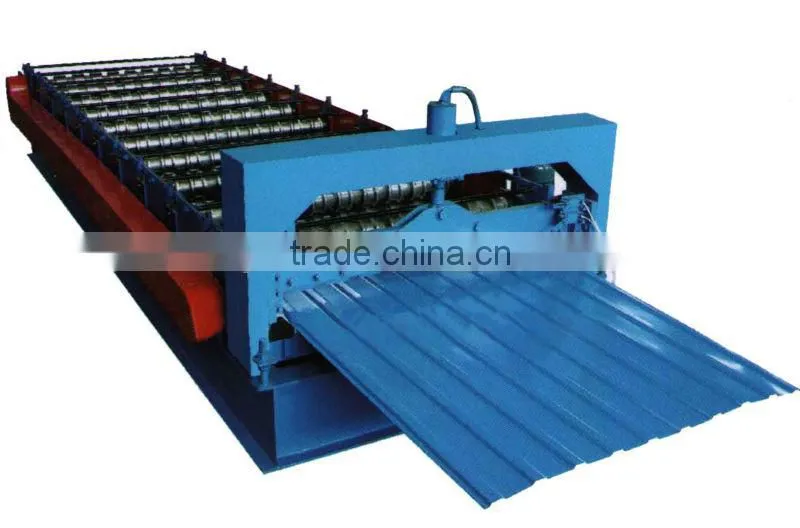

840 Roll Forming Machine

840 Roll Forming Machine thumbnail-1
840 Roll Forming Machine photo-1
US$ 10,000 - 15,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New, New
Type:
Tile Forming Machine
Tile Type:
Colored Steel
Contact Supplier Request Quote Chat Now
Cangzhou Zhongtuo International Trade Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Tile Forming Machine
Tile Type Colored Steel
Use Roof
Production Capacity 8m/min
Place of Origin Hebei, China
Brand Name Zhongtuo
Model Number ZT-900
Power(W) 5.5kw
Voltage 380v,50hz,3phase
Dimension(L*W*H) 8*1.65*1.5m
Weight 5T
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas
Certification ISO9001,CE



 840 roll forming machine

                                                       840 roll forming machine





  840 roll forming machine



1. Profile

1. feeding width 1200mm

2. effective width 1080mm

3. material thickness 0.4-0.6mm



2. Process flow

Decoiling--feeding---forming---measuring---cutting---production

3. Decoiler

5 tons manual decoiler

4.Forming device

1. Shaft material 45# steel; outer diameter 80mm;

2. Rollers material:

45# steel, with chromium coated 0.05mm thickness, 15 forming steps;

3. Transport: by chains and gears

4. Forming speed: 8m/min

5. Motor: 5.5kw

6. Dimension: 8x1.65x1.5mm

7. Weight: 5T



5. Cutting device

1. Blade Material: Cr12 steel with quenched treated 60-62°C

2. Cutting system: stop then cut, full automatic

3. Picture as attached below

6.Controlling device

1. screen: text screen displayer

2. PLC: Delta from Taiwan



7. Hydraulic

1. Advanced hydraulic system

2. Power: 3kw

8. Spare parts

1. easy damaged parts: conk 2 pcs, fuse-link 4 pcs

2. rubber mat 1 pcs;

3. bolt spanner 1 pcs



Warranty: 1 year and life-long maintainance

*Installation and debugging: We will send professional engineer to make installation and debugging, Buyer pay our engineer each one 50 USD/day, and provide accommodation, food and the round-trip ticket fee.

* Installation Days: about 5-7 days
