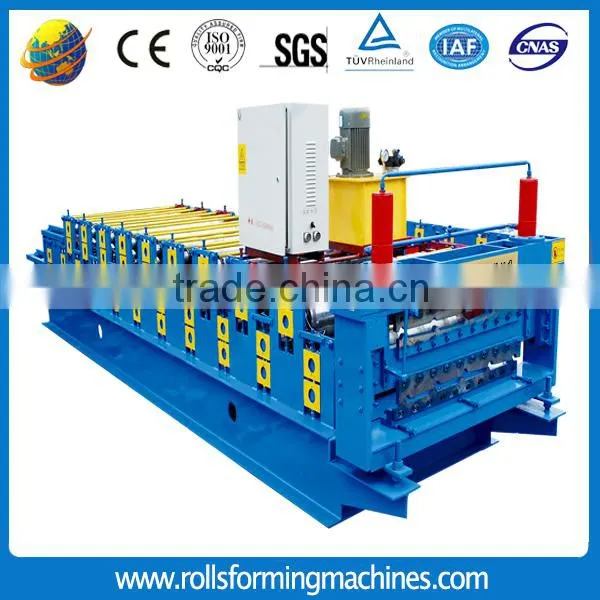

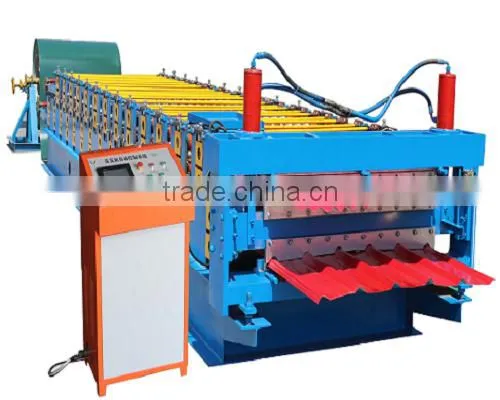

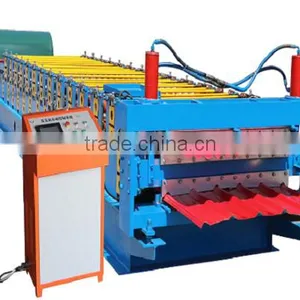

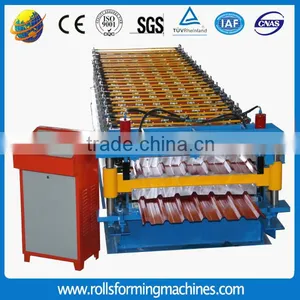

840+850 Double deck double layer roll forming machine
The profiles for your reference:
Technical specification
1. Type and specification: 840-850
2. Technique parameters of the processing line
Technical specification
1. Type and specification: 840-850
Main parameters of roll forming machine | ||
1 |
Suitable to process |
Color steel plate, galvanized sheet,aluminum coils and etc. |
2 |
Width of the feeding material |
1000mm |
3 |
Roller station |
Up layer:9 rows Down layer:11 rows |
4 |
Thickness of feeding material |
0.3-0.8mm |
5 |
Productivity |
Up layer:8-12m/min |
6 |
Rollers' material |
45# carbon steel |
7 |
Diameter of shaft |
80mm |
8 |
Weight |
About 3.8T |
9 |
Size |
6.8*1.35*1.55mm |
10 |
Voltage |
380V 50Hz 3phases |
11 |
Wall thickness of main forming machine |
16mm steel plate |
12 |
Main forming machine body |
300 mm H steel |
3. Processing technique and deployment
Processes: Manual de-coiler—Roll forming machine—PLC system—Hydraulic system-press forming--Cutter
Sales terms
Terms of Payment: 30% of the total contract value paid by T/T as down payment, the
rest 70% of the total contract value to be paid by T/T after inspection by buyer in
seller’s factory while before delivery.
Delivery: 50 days after receipt of advance payment
Service: we sent technician to your country to fix the machine.
The buyer should bear all the cost including: visa , Roundtrip ticket and suitable accommodation, also buyer should pay the salary 80USD/day.
Warranty: 12 months limited warranty
During warranty: parts are free but buyer pay for the shipping fee

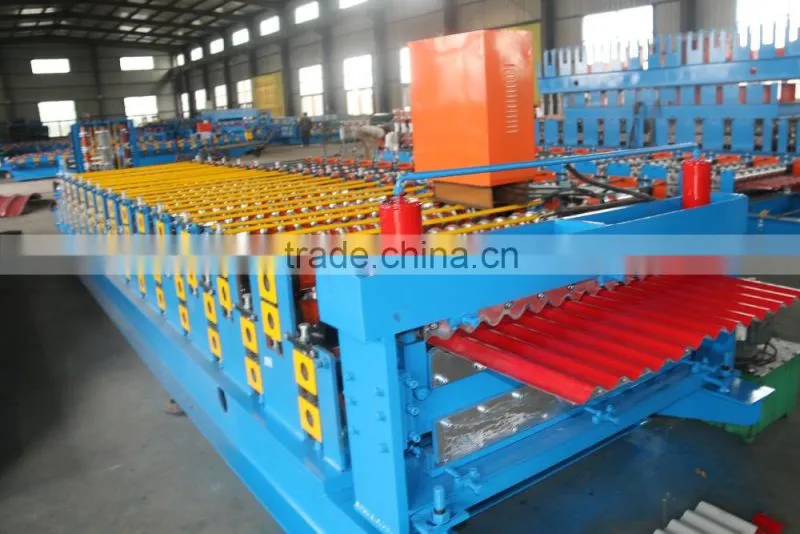

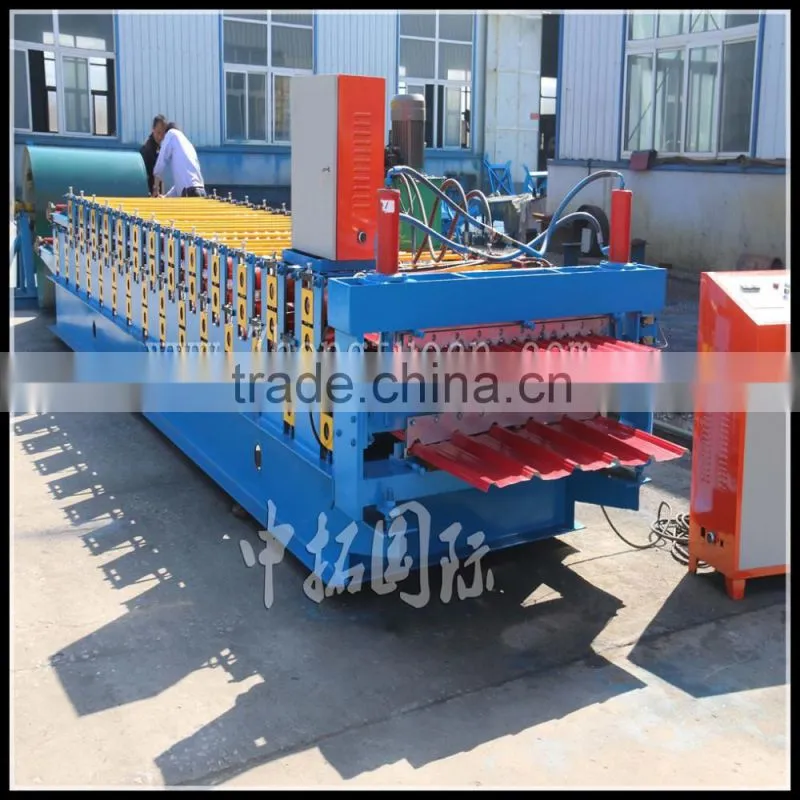

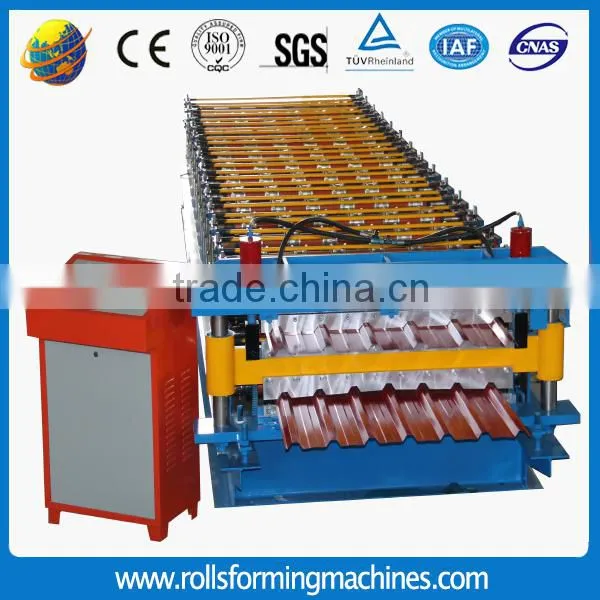

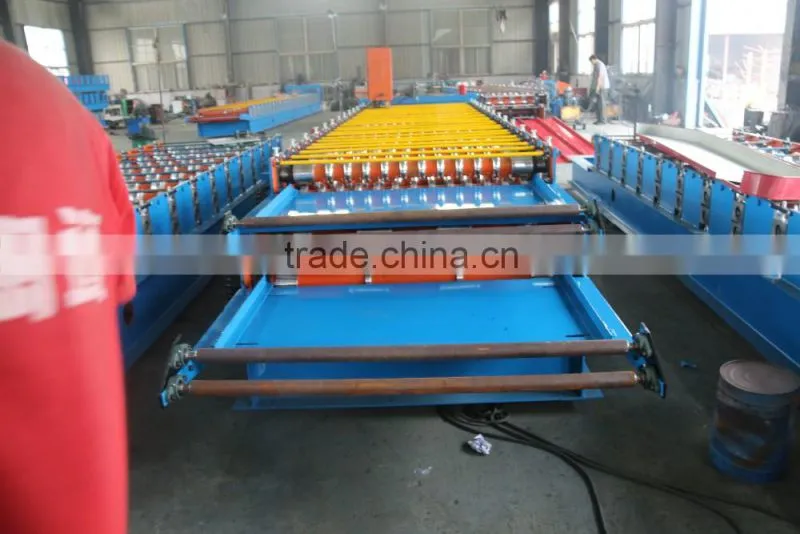

840+850 Double deck double layer roll forming machine for your reference
Cangzhou zhongtuo cold roll forming machine company is prefessional making different kinds of the roll forming machine.
we have more than 20 years experience in making the roll forming machine.And our machine is customized made according to customer's sheet profile drawing. We have a strong enginner team to design the machines for you! And we also own a strong and mature after sales service team to offer you any service to help you with your sheet production by our roofing machines.

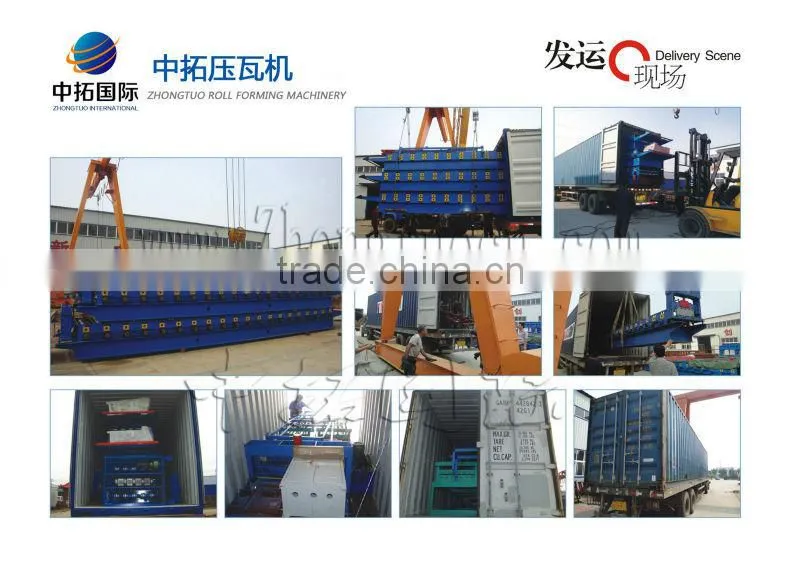

The tile roofing roll forming machine is packaged by the plastic film to keep the mahines from being affacted from damp during the flight on the ship. and the machines is loaded into the container when is finished in the factory to profect the machines from being damager during loading to the ship. So we can guarantee the machine is perfect conditions during the delivery.
The pictures below is for your refercence:
