Steel Hole Punching Machine / Flywheel Press Machine
Material thickness : 0.3-1.5 mm
Material width : Max 1250 mm
Holes density : 10 % - 25 %
Material : Stainless steel plate, Galvanized plate, Aluminium plate

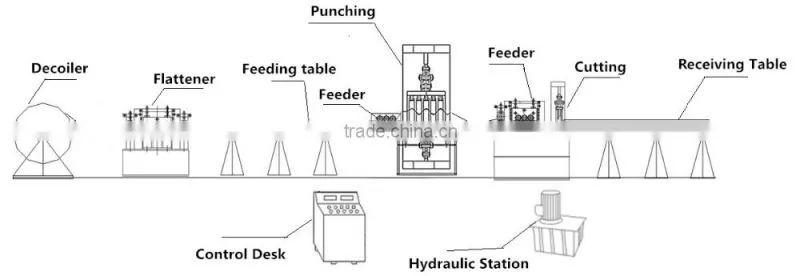

Work flow:
|
1. Decoiler
|
It is used to support the steel coil and uncoil it in a turntable way. Passive uncoil pulled by roll forming system. Decoiler type: Manual Loading capacity: 3T-5T Uncoiling width: Max 1250mm Inner diameter: 450-550mm |
|

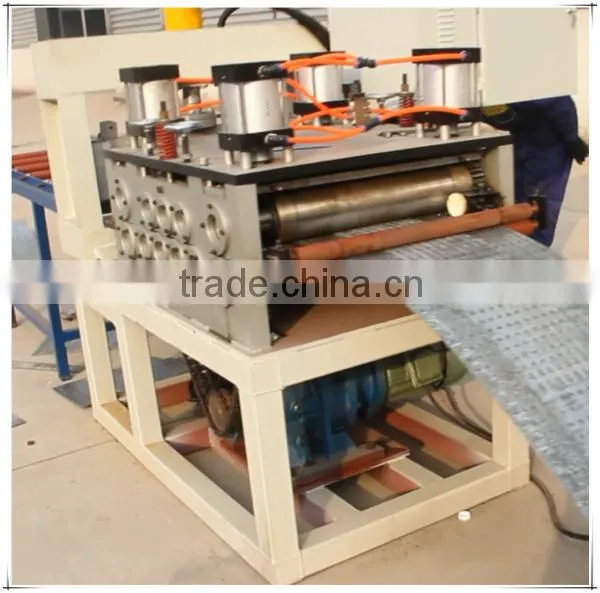

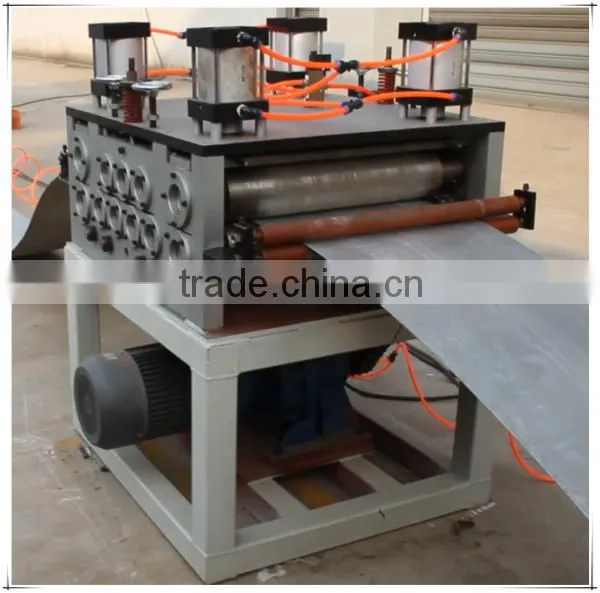

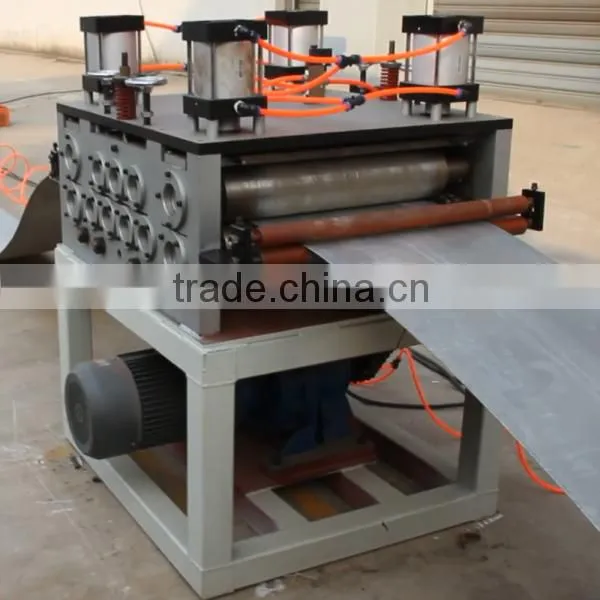

2. Flattener |
The coil from Decoiler is a little bit curves, the leveling system is to help make the coil straight, neat and clear. We will take 11 rollers, upper 5 rollers and down 6 rollers to level the coil. Leveling Rollers: 11 Rollers Diameter: 80 mm Leveling thickness: 0.3-1.5 mm Max leveling speed: 12 m/minute Drive type: Gear Motor power: 3 kw
|
|

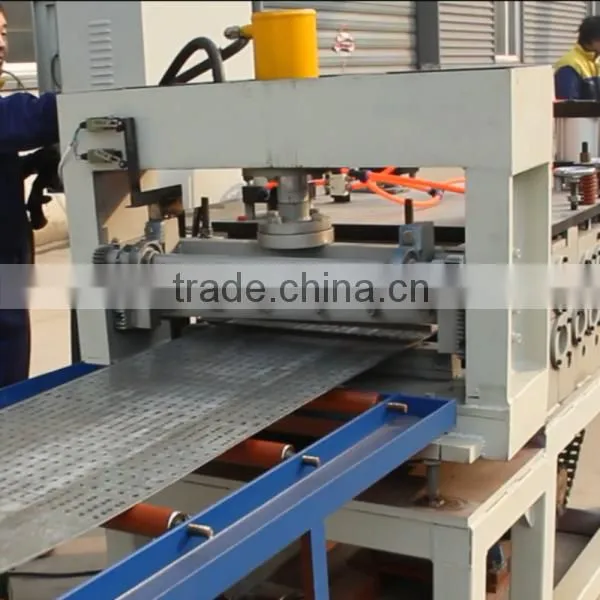

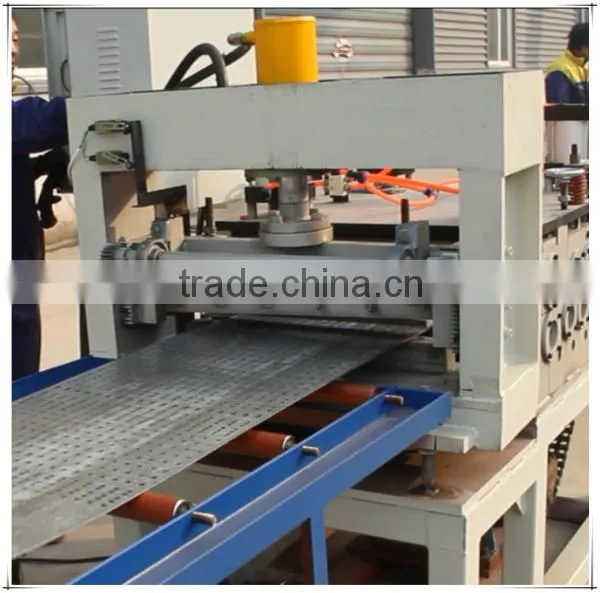

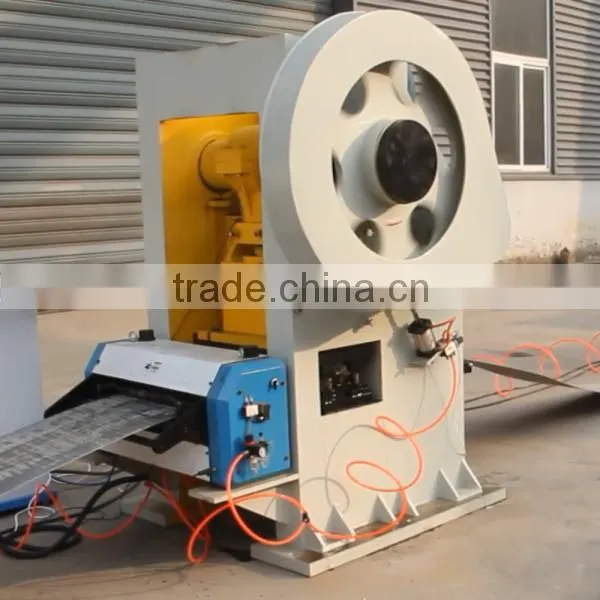

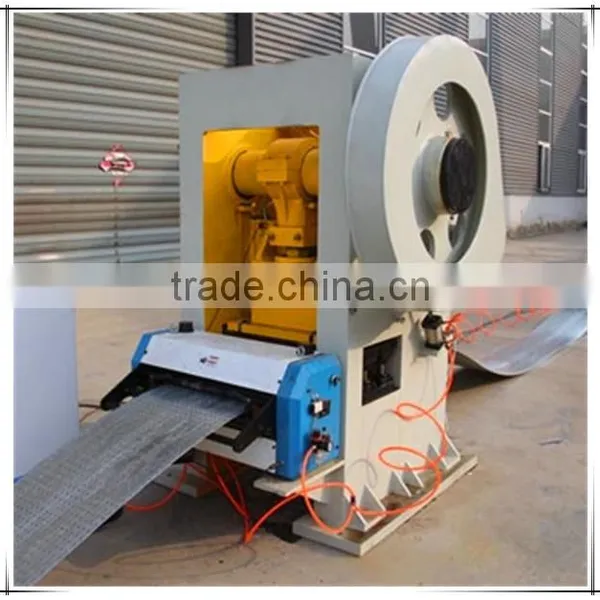

3. Punching Machine
|
Steel Hole Punching Machine / Flywheel Press Machine:

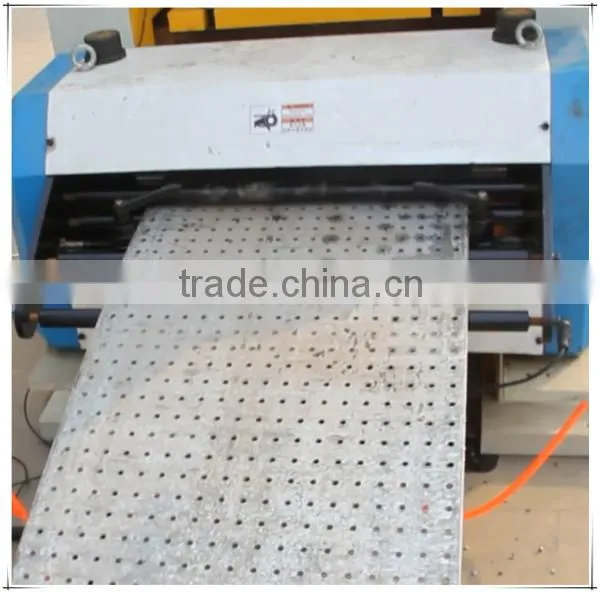

1. Press tonnage : 60T-200 T 2. Layout Form: Standing type 3. Size : 2.5*1.6*1.8 m (H*W*L) 4. Model No : J 21 (GANTRY TYPE) 5. Punching machine weight : 10 T 6. Power type: Electric power 7. Voltage: 380 V 50 Hz 3 Phrase 8. Feeding power: 1.5 kw 9. Main motor power: 18.5 kw 10. Slider trip: 30 mm 11. Slide Strokes: 55-60 times/minute 12. Punching speed: 1.5-2.5 meters /minute 13. Feeding type: Automatic servo feeding (Automatic stop when punching)
|
|

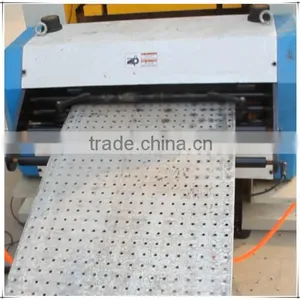

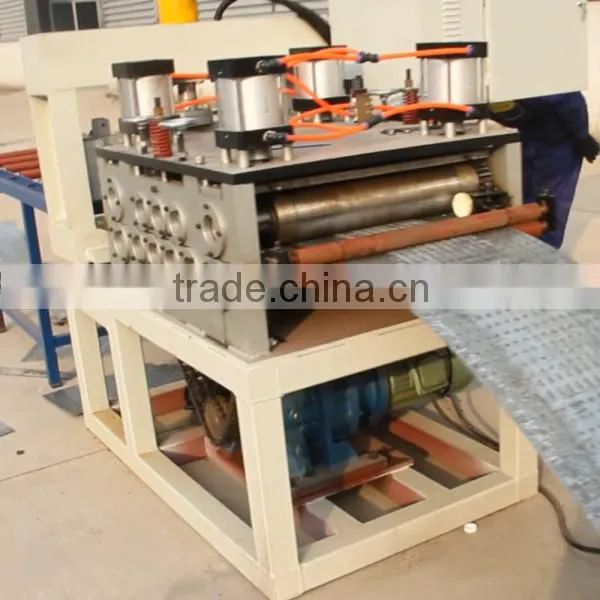

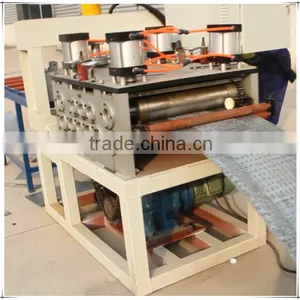

4. Cutting Feeder |
The machine automatically stops when cutting. After the cutting, the machine will automatically start. Feeding Rollers: 7 rollers Diameter: 80 mm Feeding thickness: 0.3-1.5 mm Max feeding speed: 12 m/minute Drive type: Gear Motor power: 4 kw
|
|
5. Hydraulic Cutting |
Automatic cutting controlled by PLC. It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products. The main machine automatically stops and then cutting. After the cutting, the main machine will automatically start. Material of blades: Cr 12 quenched HRC 58-60. Power supply : Hydraulic power Components: The system includes a set of hydraulic tank, a set of hydraulic oil pump, four hydraulic pipes and two sets of electromagnetism valves.
|
|

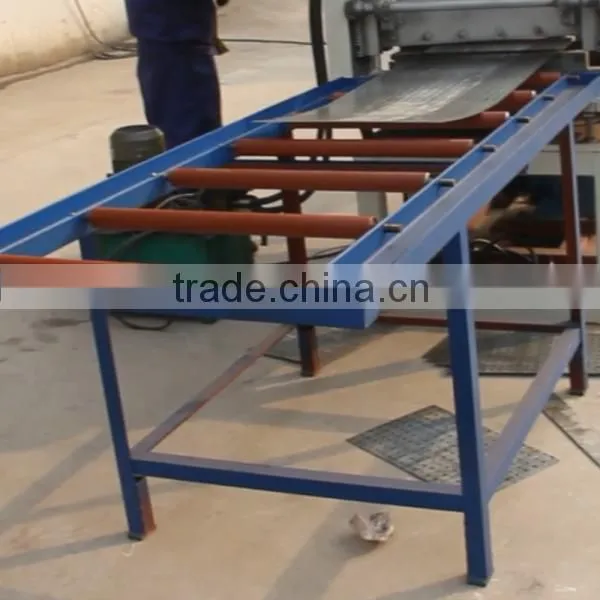

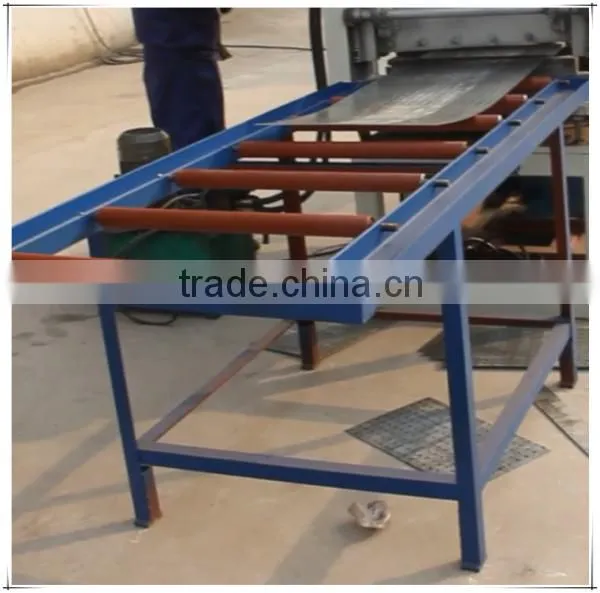

6. Receiving Table |
Table for reception of the cut profiles with roller transporter allowing to unload the cut profile freely. Frame: Welded by square tube Size: 2.0 m*1.0 m*0.9 m (L*W*H) Supporter roller: ASTM 1045 with chrome Diameter of rollers: 55 mm Quantity: 3 Sets
|
Warranty |
1. One year warranty, whole life technical support. 2. Installation & adjustment : We can take a video for the customer and the customer can also come to our factory, we can train customer how to install and adjust the machine. 3. Oversea service: the buyer should charge of visa, return ticket, food and accommodation overseas and USD 50/person/day salary.
|
Cangzhou Zhongtuo cold roll forming machinery as a manufacturer since 1996,we are specialized in manufacturing Steel Hole Punching Machine / Flywheel Press Machine , color steel forming machine, light keel machine, C&Z purline machine, Glazed tile forming machine, welded tube mill, stone coated roof production line, steel structural floor panel roll forming machine and so on. We also have the derivatives and raw material. We real provide you one station, non-stop service. Now our machine have been exported to 30 countries, such as Canada, South Korea, Russia, Holland, Sri Lanka, Malaysia, India, Brazil, etc. Our company insists on the service aim: Quality First, Credit First. We believe that we can make the future cooperation and achieve win-win.
