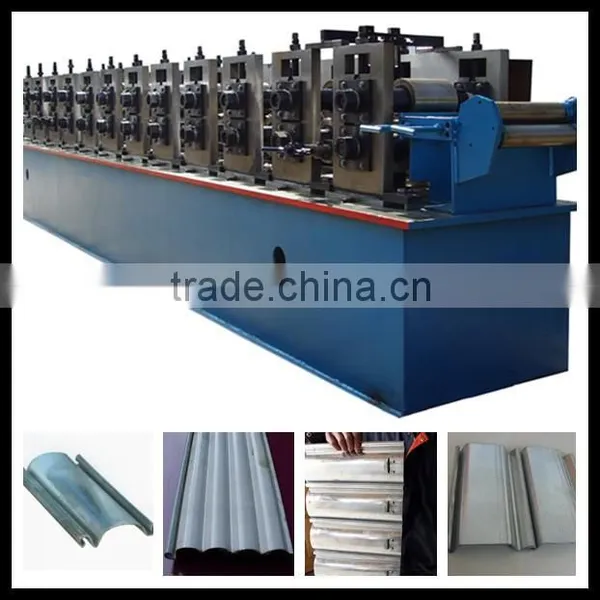

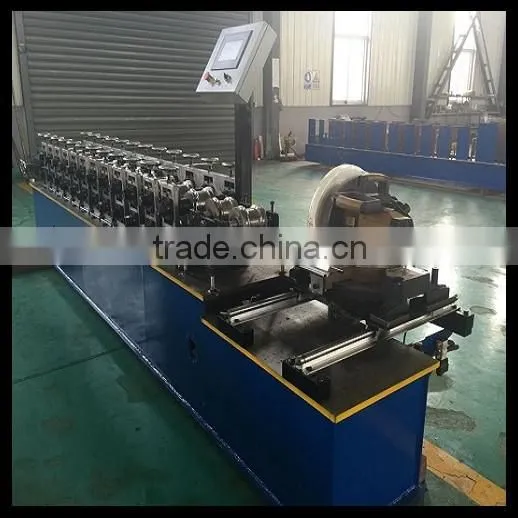

Shutter door roller shutter garage
door roll forming machine
Shutter door roller shutter garage door roll forming machine can produce shutter door Smooth.
This machine can production all kinds production,such as rolling fire door, rolling steel door,rolling garage door and so on.Shutter door roller shutter garage door roll forming machine have can produce two types, shutter slats and Australia shutter door.About the shutter door slats,it can be produce with double and poured into PU.It has a good function to stop the warm.
Composition of Shutter door roller shutter garage door roll forming machine :
Shutter door roller shutter garage door roll forming machine consists of uncoiler, Perforation,feeding and
straightening,main roll forming part,punching parting,cutting device and runout table.

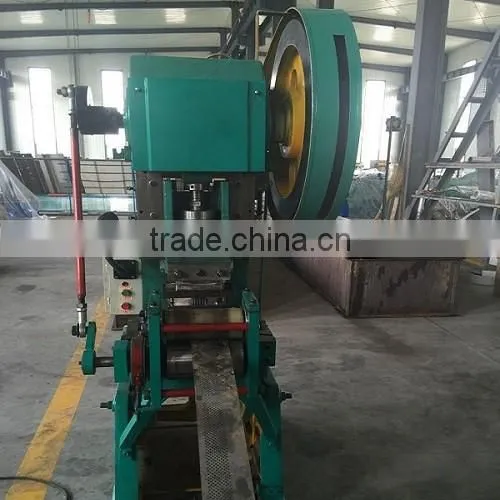

Perforation machine can make the holes concentrated, it is different from the punching part.
No. |
Name |
Unit |
Qty |
1 |
Manual decoiler |
set |
1 |
2 |
Main forming machine |
set |
1 |
3 |
PLC control system |
set |
1 |
4 |
Hydraulic pump station |
set |
1 |
5 |
Post cut |
set |
1 |
6 |
Electric motor |
set |
1 |
7 |
Output table |
set |
1 |
8 |
Perforation machine |
set |
1 |
9 |
punching part | set | 1 |
Process Flow of roller shutter garage door roll forming machine :
Uncoiling→ (Perforation machine )→Feeding material into machine→Roll forming→Measuring length→ (punching )→Auto cutting→Products receiving
Quickly detailed of roller shutter garage door roll forming machine
|
Item |
Parameter |
Remark |
|
Raw material |
Type |
colored steel plate, galvanized plate, or aluminium plate |
|
Thickness |
0.5---1.5 mm |
As customer’s need |
|
Material hardness: |
550 mpa---350 mpa |
|
|
Material width: |
117mm-310mm |
According to customer’s profile |
|
|
uncoile |
Max width |
1250mm |
According to customer’s profile |
Inner diameter |
450-650mm |
According to customer’s profile |
|
Max Loading capacity |
5 T |
|
|
|
Perforation machine |
Power |
4kw |
According to the thickness |
The distribution,area and size of the holes |
As customer’s need |
The basic information for quote the Perforation machine |
|
Thickness |
0.5---1.5 mm |
As customer’s need |
|
|
Main roll machine |
Working efficiency |
6-10m/min |
|
Forming by rolling |
Roll 12 rows |
Final rollers depend on the design |
|
Roller material |
Gcr12MoV quenched |
|
|
Shaft material |
45#steel processing |
|
|
diameter of shaft |
50-80mm |
Final rollers depend on the design |
|
Main part power |
5.5kw |
Depend on the thickness of material and size of machine |
|
Hydraulic motor power |
3kw |
Depend on the thickness |
|
Scissor material |
Gcr12MoV quenched |
|
|
voltage |
380V, 50HZ,3 phase |
As customer’s need |
|
transmission |
Gear box |
Chain and gear box depend on thickness and customer’s need |

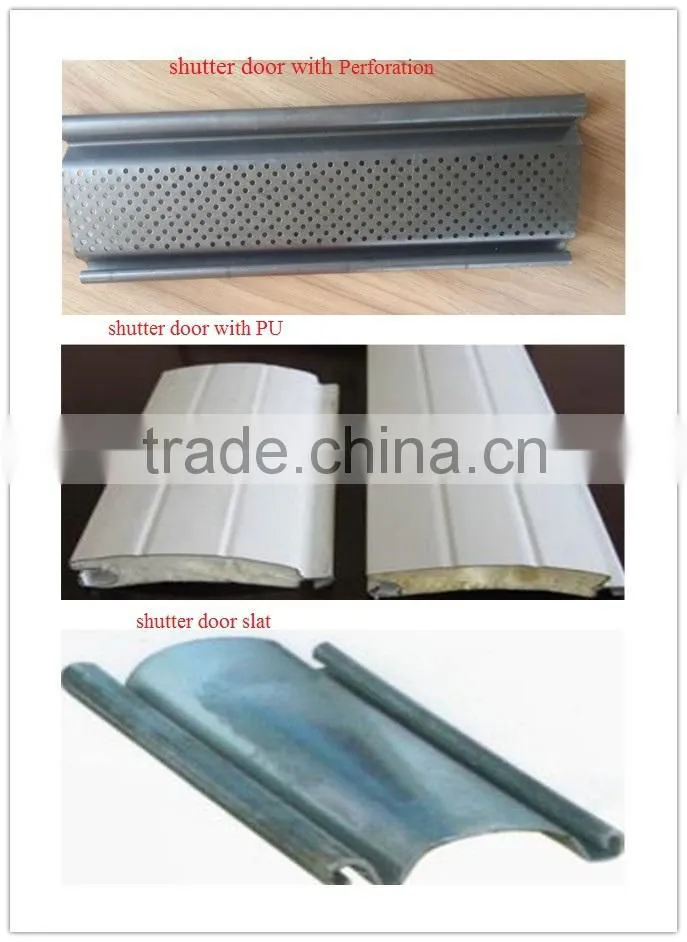

sample of shutter:

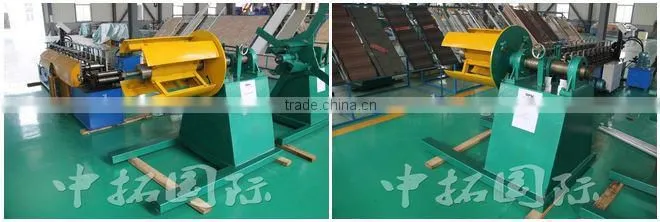

Un-coiler System of roller shutter garage door roll forming machine
Usage: It is used to support the steel coil and uncoil it in a turntable way.
Passive uncoil pulled by roll forming system
Coil feeding part of garage door roll forming machine
Usage: Put the raw material(steel plate) through the beach to manufacture and process,it can guarantee that the products are neat, parallel and everything is uniformity.Please refer to the equipment regulation to knowthe function of locate angle iron.

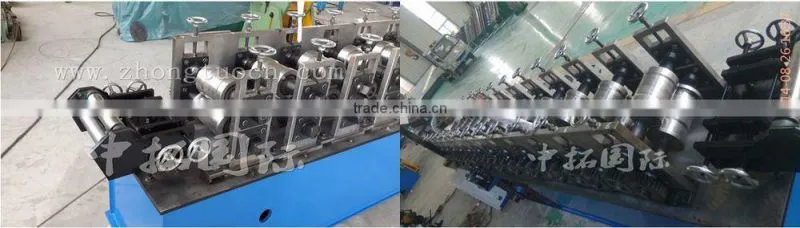

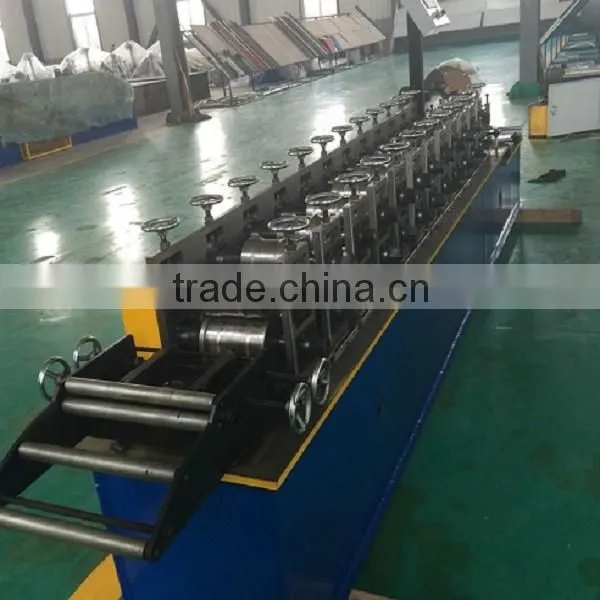

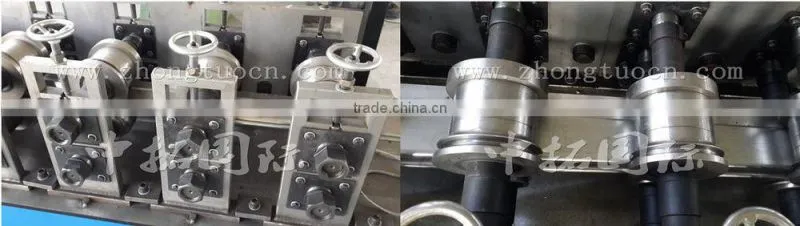

Forming device of garage door roll forming machine
Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked
when it is working
Feature : Ensure stability , precision and lifetime.

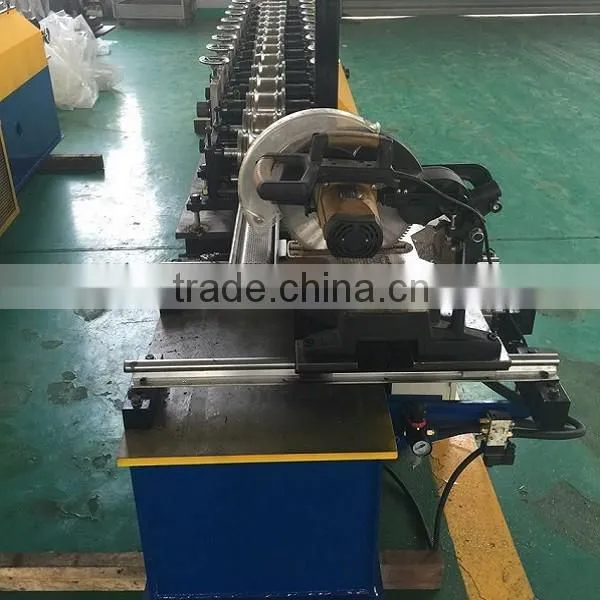

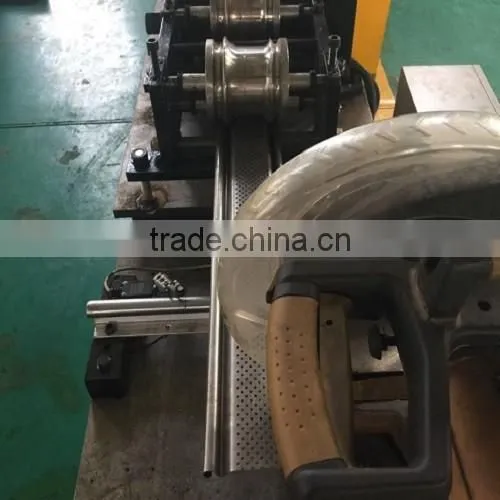

Cutting device of garage door roll forming machine
Advanced hydraulic drive, automatic punching and cutting after forming, no distorting or wasting, high level safety
factor.

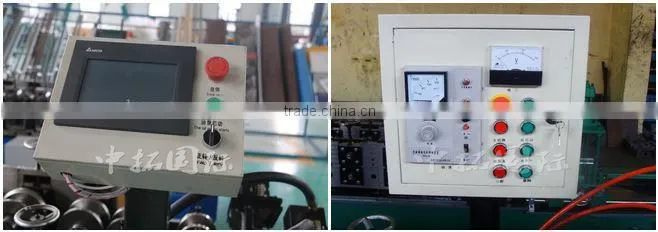

Controlling device of Shutter door roller machine

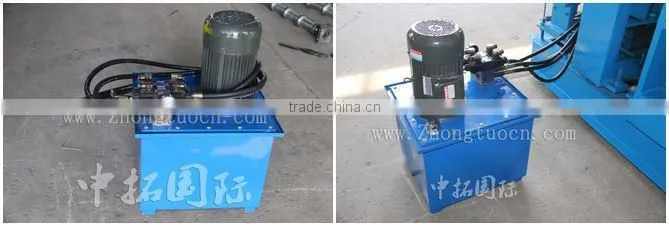

Hydraulic of Shutter door roller machine
Spare parts ( for free)
1. Easy damaged parts: conk 2 pcs, fuse-link 4 pcs;
2. Rubber mat 1 pcs;
3. Bolt spanner 1 pcs
1. Installation and training of Shutter door roller machine :
a.If buyers visit our factory and check the machine, we will teach you how to install and use the roll forming machine for sale , and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
2. After Service of roller shutter garage door roll forming machine
a.One year guarantee for whole roll forming machine for sale.
b.24 hours technical support by email or calling
c.If there is any problem found of rolling machine , we will repair roll forming machine for sale for free in one year.
Packaging Detail of roller shutter garage door roll forming machine
Cangzhou ZHONGTUO International Trade Co., Ltd is a professional manufacturer and exporterwhich has its own factory and also cooperate with several production factories and associated nterprises, concerning with the design, development and production of cold roll forming machines,material of building. It is located in northwest of CangZhou, as a long history of cold roll formingmachine production base. All products comply with international quality standards and are greatlyappreciated in variety of different markets throughout the world, such as Asia, Africa, Europe,South America, and Australia and so on.
1.You are trade company or factory?
- We are trade company but we also have own factories. Building trade company is just for
exporting various types of cold roll forming machines.
2. Why your price is higher than others?
- As we persist on that each factory should put quality at the first place. We spend time
and money on developing how to make machines much more automatic, accurate and high quality. We can make sure that our machine could use more than 20 years without any problem. We can provide 2 years free quality assurance.
3. How to visit your company?
-a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),
then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5
hours), then we can pick up you.
4.How to get a quotation?
a.Give me the profile drawing and thickness,this is the important.
b.Other spicific requirements is welcome,such as the speed,power and voltage you want.
We can supply other machines for you.Or check here go to our website
Click the picture which you want and you will see the detail informations
