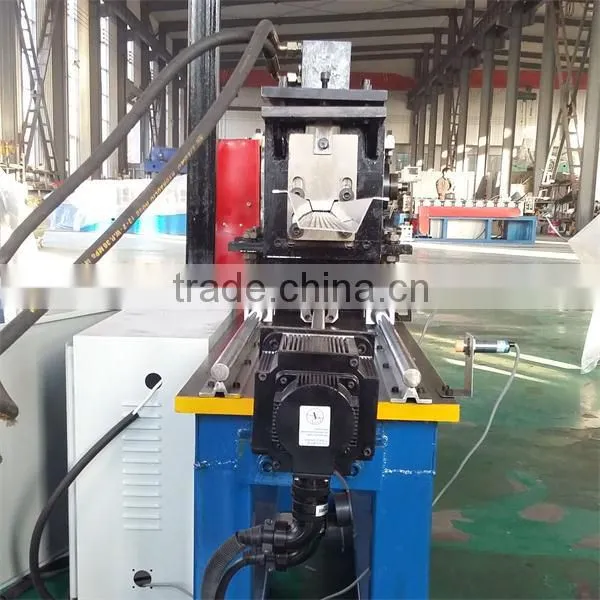

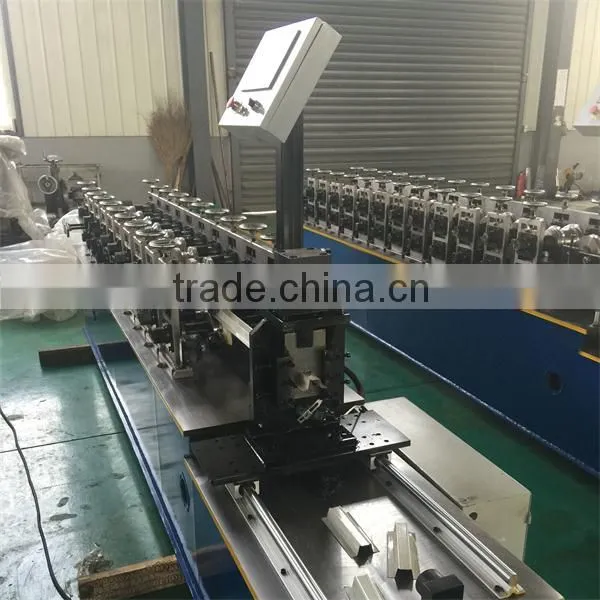

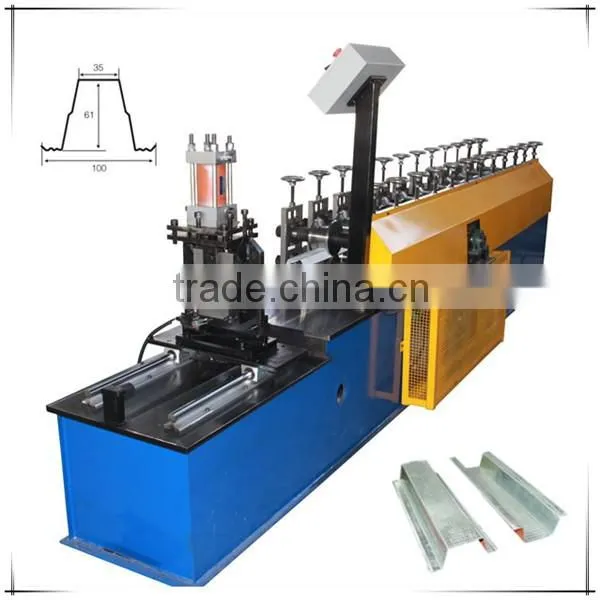

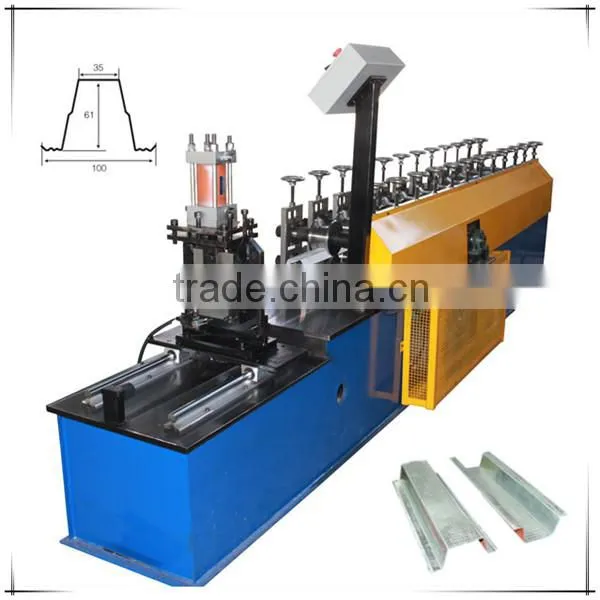

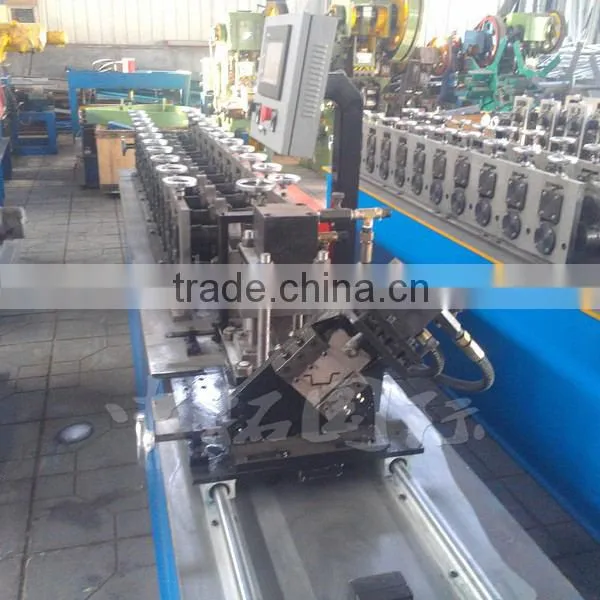

Ceiling Omega Forming Machine
Support you money !! Support you service !! Support you technology !!
PLC control system !! Hydraulic cutting system !! Mult-language conversion system !!
Ceiling Omega Forming Machine Decoiler System:
Usage: Passive uncoil pulled by roll forming system, support the steel coil and uncoil it in a turntable way.
No : |
Decoiler System Main Parameter : |
|
1 |
Loading capacity |
1.5T |
2 |
Uncoiling width |
300mm |
3 |
Inner diameter |
450-550mm |
Ceiling Omega Forming Machine Roll Forming System:
Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, gear transmission, roller surfaces polishing, hard plating , heat treatment and galvanizational treatment.
No : |
Roll Forming System Main Parameter : |
|
1 |
Length of the main part |
about 3200*800*1400 |
2 |
Weight of main part |
3 tons |
3 |
Voltage |
380V/50HZ3Phase (as customer`s request) |
4 |
Roller fixer |
guide column |
5 |
Frame |
steel plate welded/ Memorial arch frame type |
6 |
Frame thickness |
25mm |
7 |
Drive mode |
gear |
8 |
Material of rollers |
GCr12MoV |
9 |
Material of shafts |
45# steel with tempering |
10 |
Diameter of shafts |
φ40mm |
11 |
Number of rollers |
12 rollers |
12 |
Main power |
3kw |
Ceiling Omega Forming Machine Automatic Cutting System:
Feature: Automatic cutting controlled by PLC. Ensure stability, precision and cutting speed. It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.It contains one set of cutting tools, one hydraulic tank and one cutter machine.
No : |
Cutting System Main Parameter : |
|
1 |
Material of blades |
Gcr12MoV quenched |
2 |
Power supply |
hydraulic power |
3 |
Frame |
Pillar style with rack & pinion system |
4 |
Stroke switch |
non-contact photoelectric switch |
5 |
Hydraulic motor Power |
3kw |
6 |
Hydraulic oil: |
46# |
Ceiling Omega Forming Machine Electric Control System:
1. Adopted PLC , transducer, touch panel from Delta Taiwan to ensure high speed with stability, precision and lifetime.
2. Equipped with movable switch , air break, radiator, transformer & electric leakage protector for operation convenience and safety.
Ceiling Omega Forming Machine Our Service:
1. Installation and training of machine manufacturer:
a. If buyers visit our factory and check the machine, we will teach you how to install and use the roll forming machine for sale , and also train your workers/technician face to face.
b. Without visiting, we will send you user manual and video to teach you to install and operate.
c. If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
2. After Service of roll forming machine for sale:
a. One year guarantee for whole roll forming machine for sale.
b. 24 hours technical support by email or calling:
c. If there is any problem found of steel roof sheet roll forming machinery, we will repair roll forming machine for sale for free in one year.
Ceiling Omega Forming Machine Company Information:
Cangzhou Zhongtuo Cold Roll Forming Machinery Co., Ltd
is a professional manufacturer located in northwest of CangZhou, as a long history of cold roll formingmachine production base. All products comply with international quality standards and are greatly appreciated in variety of different markets throughout the world, such as Asia, Africa, Europe,South America, and Australia and so on.
Ceiling Omega Forming Machine FAQ:
1. Does one machine can only produce one style panel profile?
Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.
2. Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.
3. How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
4. What can you do if the machine broken?
Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new pars replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.
5. Can you be responsible for transport?
Yes, please tell me the destination port or address.we have rich experience in transport.
6. You are trade company or factory?
We are trade company but we also have own factories. Building trade company is just for exporting various types of cold roll forming machines.
7. Why your price is higher than others?
As we persist on that each factory should put quality at the first place. We spend time and money on developing how to make machines much more automatic, accurate and high quality. We can make sure that our machine could use more than 20 years without any problem. We can provide 2 years free qualityassurance.
8. How long the machine could be made?
Normally speaking, welded pipe making machine could be made without 45 working days. If you need machines in a hurry, we can make it for you less than a month.
