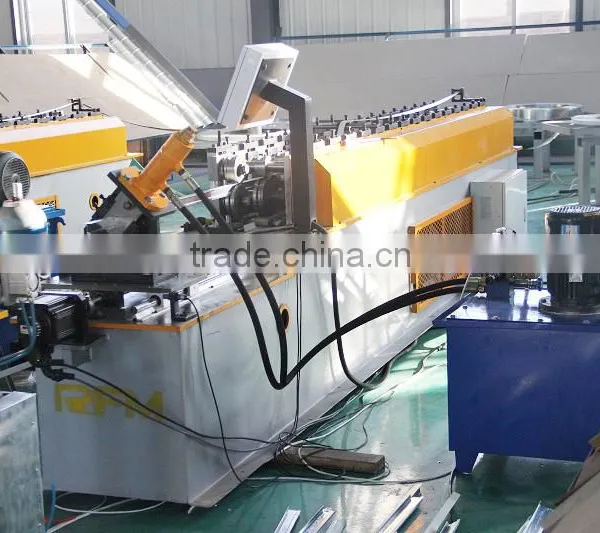

Ceiling Channel Roll Forming Machine
Brief Introduction
We are involved in manufacturing and Exporter accurately Ceiling Channel Roll Forming Machine. These products are mainly used for structure purposes in diverse industries. The entire range is fabricated using high quality raw materials at our modern and well-equipped manufacturing facility. We have a ability to produce bulk needs of ceiling section of customer within the specific time frame.
Main elements of Ceiling Channel Roll Forming Machine
1.Decoiler
2. roll forming machine
3.punching maching(as customer's need)
4.Cutting machine (normal cutting and flying track cutting saw)(as customer`s need choose )
5.PLC control
6. Counter 1 set
7.hydraulic station
8.receiving table
Process flow
Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting→Products receiving

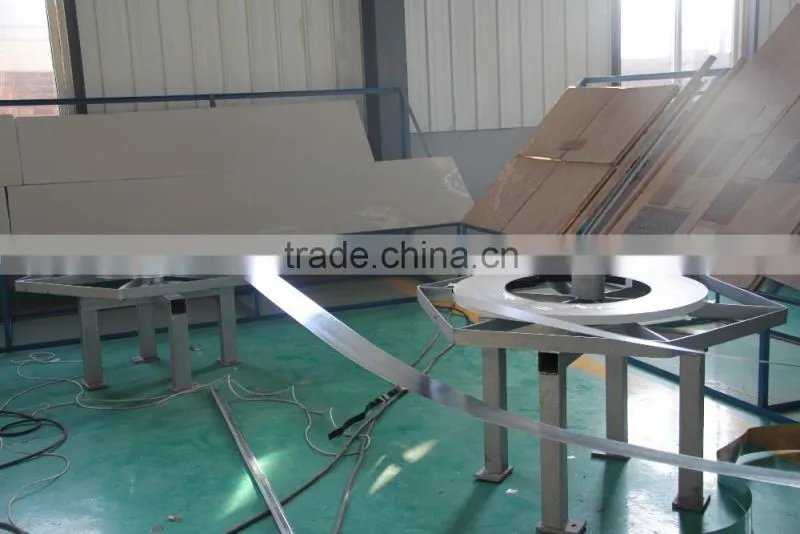

Decoiler
- Usage: It is used to support the steel coil and uncoil it in a turntable way.
- Passive uncoil pulled by roll forming system
- Loading capacity: 1.5T
- Uncoiling width: 300mm
- Inner diameter: 450-550mm

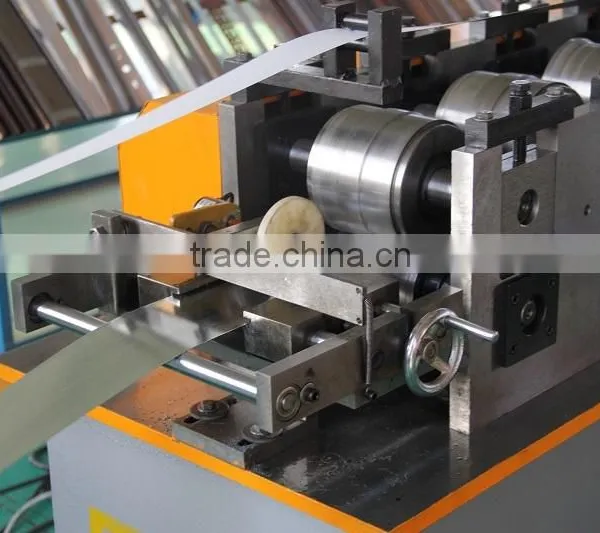

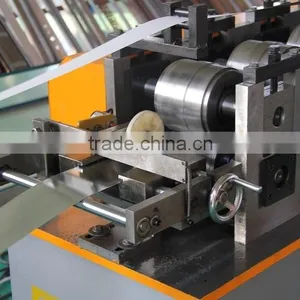

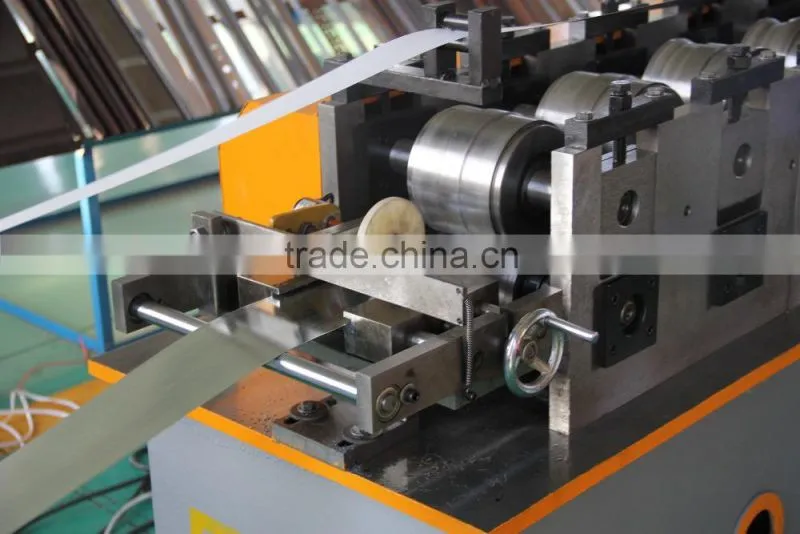

Entry leveling
This part will level coil to make sure it is neat clean and straight.

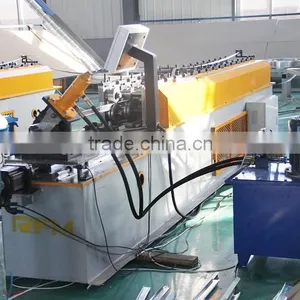

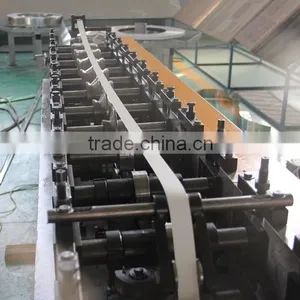

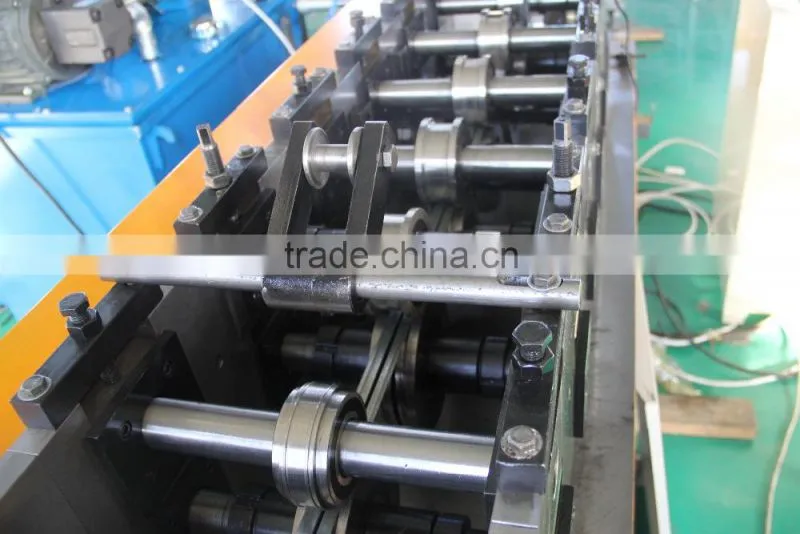

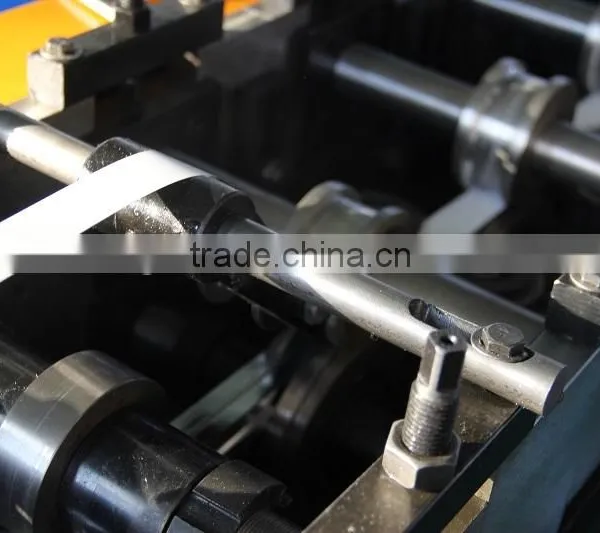

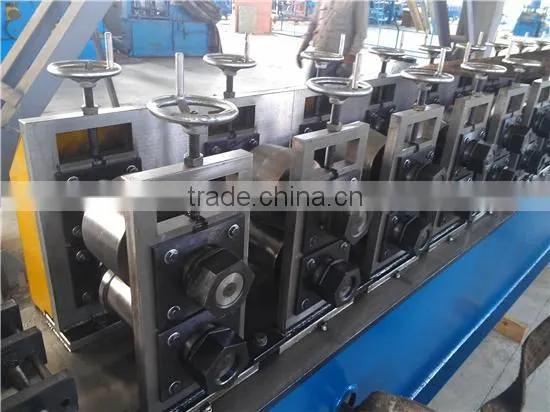

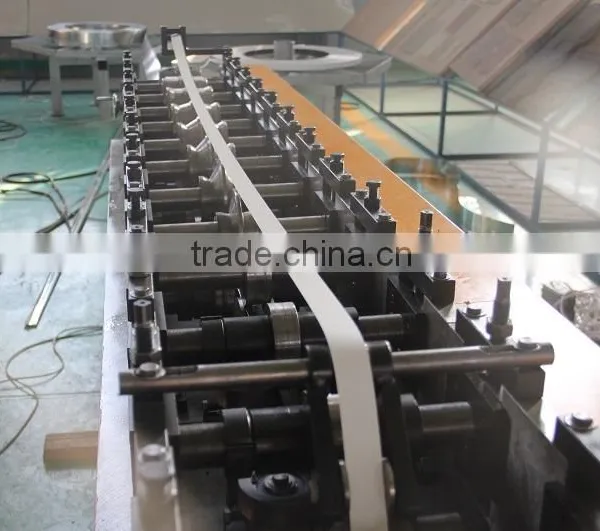

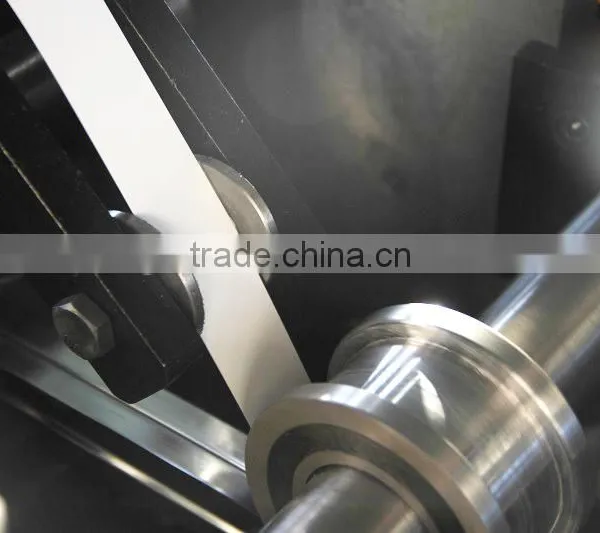

Roll forming machine
- Size: 2900*800*1400
- Weight : 3 tons
- Voltage:380V/50HZ3Phase(as customer`s request)
- Roller fixer : Guide column
-
Frame : middle plate welded
Memorial arch frame type - Frame thickness:25mm
- Drive mode: gear
- Material of rollers: GCr12MoV
- Material of shafts: 45# steel with tempering
- Diameter of shafts: φ40mm
- Number of rollers : 8 rollers
- Main power: 3kw
- Cycloidal planetary gear speed reducer

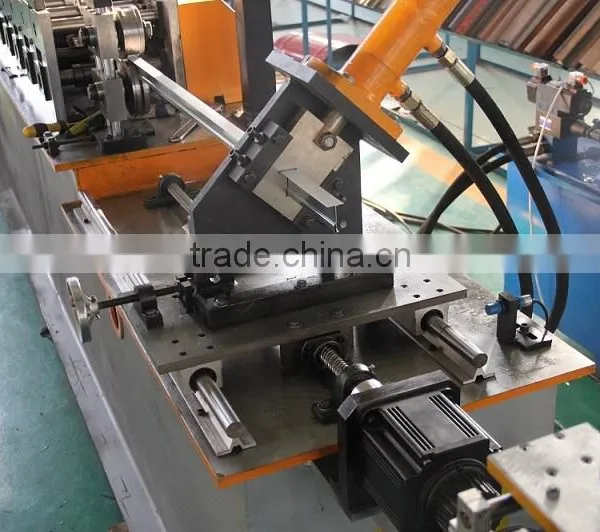

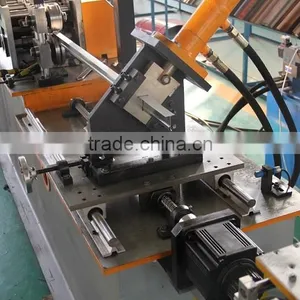

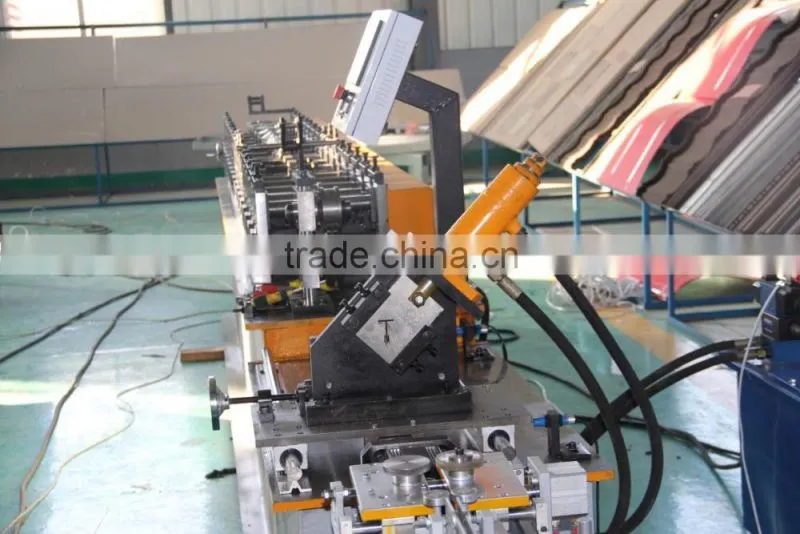

Shearing system
- Material of blades: Gcr12MoV quenched
- Power supply : hydraulic power
- Frame : Pillar style with rack & pinion system
- Stroke switch : non-contact photoelectric switch
- Components: It contains one set of cutting tools, one hydraulic tank and one cutter machine.
PLC station
Adopted PLC, transducer, touch panel from Delta Taiwan to ensure high speed with stability, precision and lifetime.
Other electric element are Delta
Equipped with movable switch, air break, radiator, transformer & electric leakage protector for operation convenience and safety.
Warranty:
1. One year, and we will provide the technical support for the whole life.
2. Training: the buyer should charge of visa, return ticket, food and accommodation overseas and USD50/person/day for salary.
3. Need one technicians
4. Training time: one week (contains the time of installation and adjustment)
Cangzhou ZHONGTUO International Trade Co., Ltd is a professional manufacturer and exporter which has its own factory and also cooperate with several production factories and concerning with the design, development and production of cold roll forming machines,material of building. It is located in northwest of CangZhou, as a long history of cold rollforming machine production base. All products comply with international quality standards and are greatly appreciated in variety of different markets throughout the world, such as Asia, Africa, Europe,South America, and Australia and so on.
