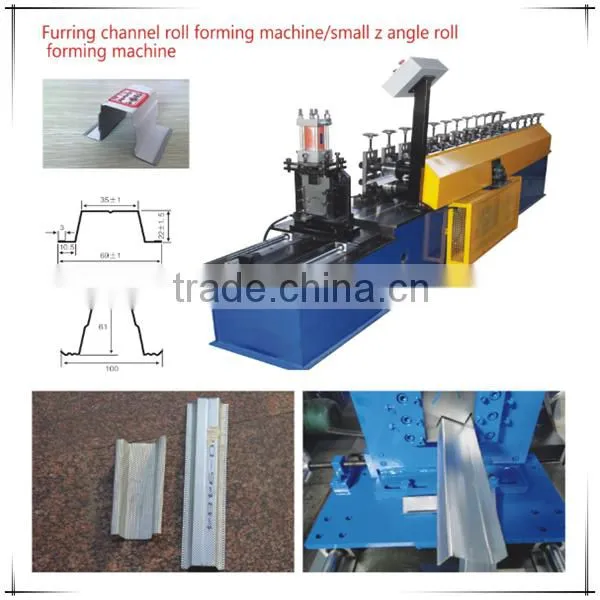

Omega furring roll forming machine
Omega roll forming machine | |||
|

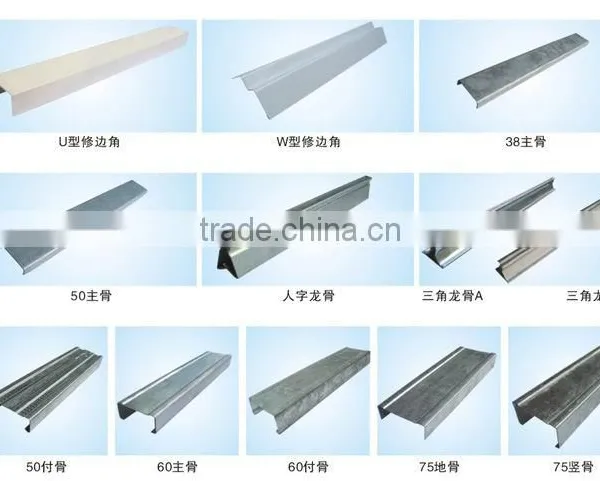

Customer drawing profile: as customers' requests | |||
S/N |
Name |
Parameter |
Pictures |
1 |

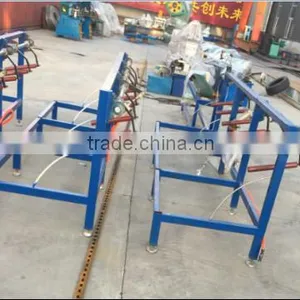

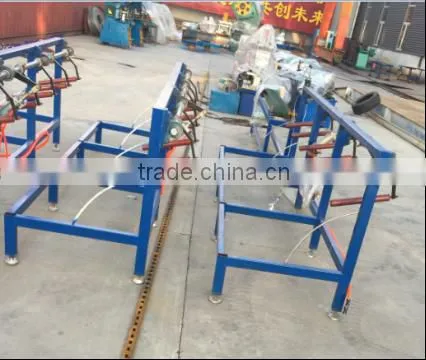

Decoiler |
Usage: It is used to support the steel coil and uncoil it in a turntable way. Passive uncoil pulled by roll forming system Loading capacity: 1.5T Uncoiling width: 300mm Inner diameter: 450-550mm |
|
2 |
Feeding and leveling |
This part will level coil to make sure it is neat clean and straight. Meanwhile the roller will punch dots at both side of the C channel. |
|
3 |

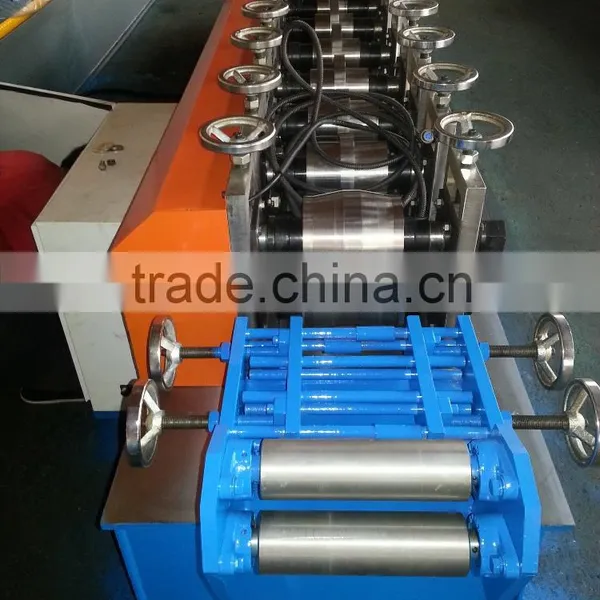

Roll forming machine
|
Size: 3800*800*1400 Weight t: 2.6 tons Voltage:380V/50HZ3Phase(as customer’s request) Roller fixer : Guide column Frame : middle plate welded Memorial arch frame type Frame thickness:25mm Drive mode: gear Material of rollers: GCr12MoV Material of shafts: 45# steel with tempering Diameter of shafts: φ40mm Number of rollers : 10rollers Main power: 4kw Cycloidal planetary gear speed reducer) |
|
5 |

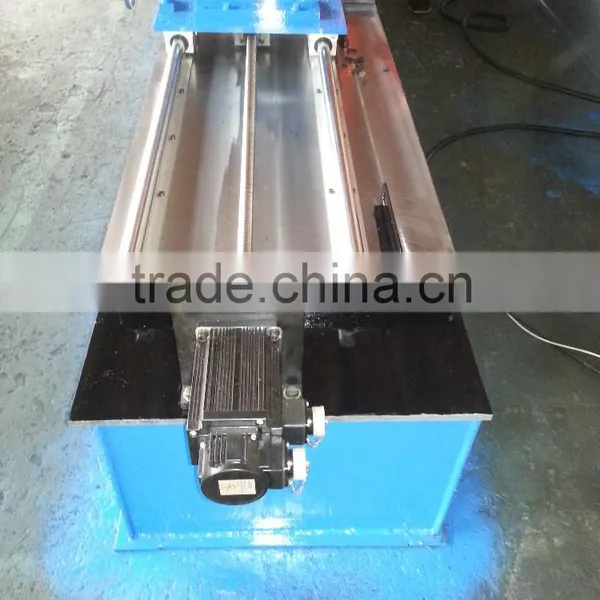

Shearing machine |
Together with punching words, cutting will be done together. Material of blades: Gcr12 quenched Power supply : hydraulic power Frame : Pillar style with rack & pinion system Stroke switch : non-contact photoelectric switch |
|
6 |
Hydraulic Station 3 sets |
Hydraulic motor Power: 3kw Hydraulic oil: 46# Components: The system includes a set of hydraulic tank, a set of hydraulic oil pump, and two hydraulic pipes. And three sets of electromagnetism valves. |
|
7 |
Electric Control System
|
Feature: 1. Adopted PLC, transducer, touch panel from Delta Taiwan to ensure high speed with stability, precision and lifetime. 2.Other electric element are Delta 3. Equipped with movable switch, air break, radiator, transformer & electric leakage protector for operation convenience and safety. |
|
8 |

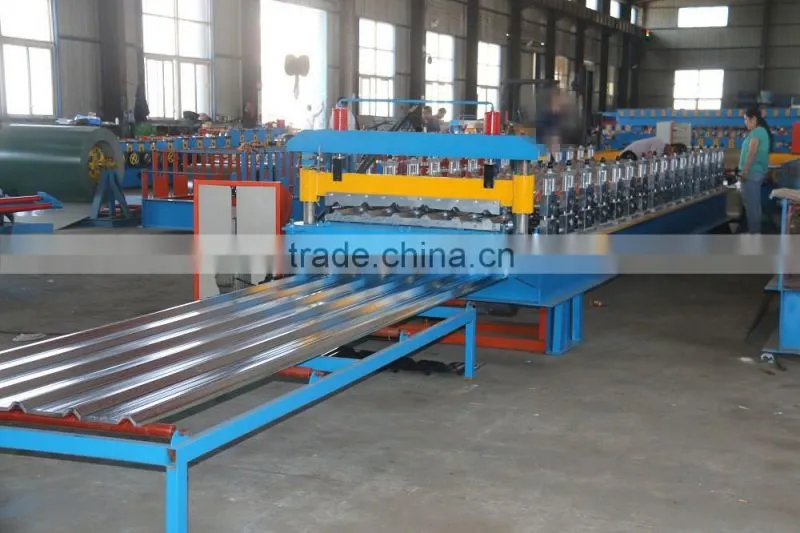

Runout table |
It adopts welded steel and supported roller to transmit the products. |
|
9 |
Price: USD13500/setFOB XINGANGCHINA Payment: 30% T/T in advance and balance 70% after inspection confirmation before shipment. |
||
10 |
1. One year, and we will provide the technical support for the whole life. 2. Training: the buyer should charge of visa, return ticket, food and accommodation overseas and USD50/person/day for salary. 3. Need one technicians. 4. Training time: one week (contains the time of installation and adjustment) |
||

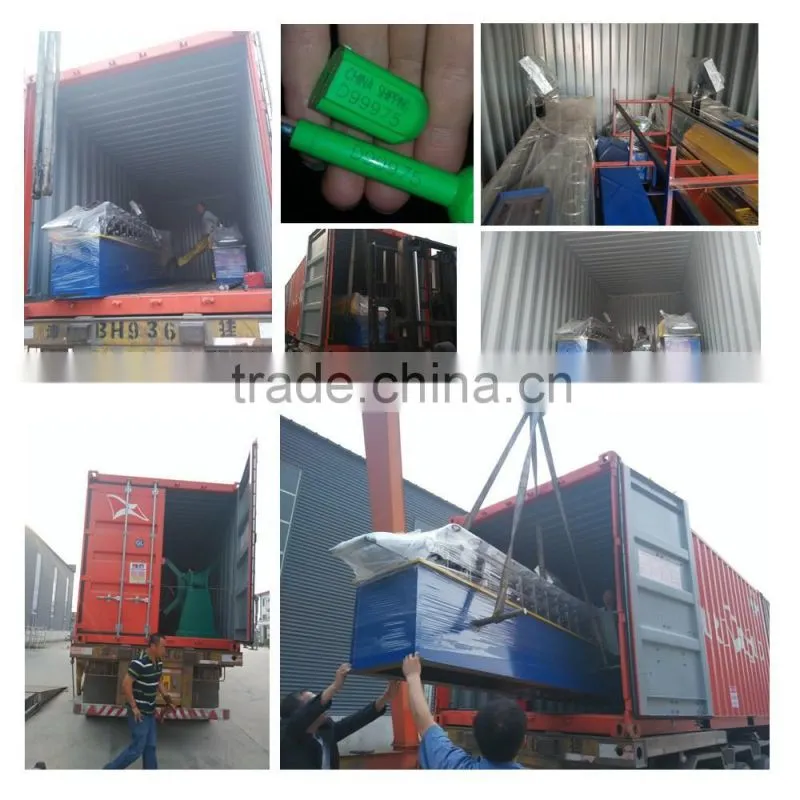

Packing
1. one 40ft container for loading one set machine with manual decoiler;
2. the whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3. Spare parts and some small parts packed in plastic tooling box;
4. All Components Fixed by steel wire with Container.
Cangzhou ZHONGTUO cold roll forming machinery Co., Ltd is a professional manufacturer and exporterwhich has its own factory and also cooperate with several production factories and associated enterprises, concerning with the design, development and production of cold roll forming machines,material of building. It is located in northwest of CangZhou, as a long history of cold roll formingmachine production base. All products comply with international quality standards and are greatly appreciated in variety of different markets throughout the world, such as Asia, Africa, Europe,South America, and Australia and so on.
Q: Are you manufacturer?
A: Yes, we are manufacturer.
Q: What kind of payment term you can do?
A: We are flexible about payment terms, please contact us for details.
Q: What info you need before you make the proposal for a roll forming machine?
A: The profile drawings, material informations, your special requirements.
Q: What I should do if I just start to know roll forming machinery?
A: Contact us immediately, we provide free consultant pre-sales service.
Q: How to visit our company:
A: 1.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
2.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
3. Fly to Guangzhou aiport: By air From Guangzhou to Beijing airtpot; By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
Other roll forming machine which you can choose:
1. Trapezoidal tile roll forming machine
2. Corrugated sheet roll forming machine

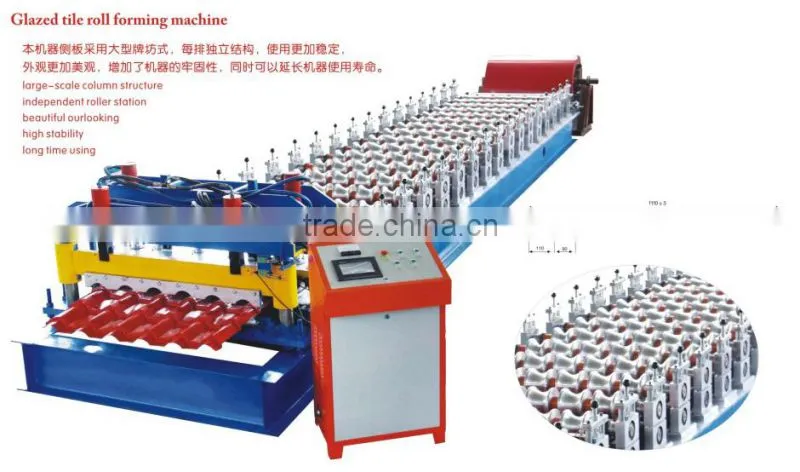

3. Glazed tile roll forming machine

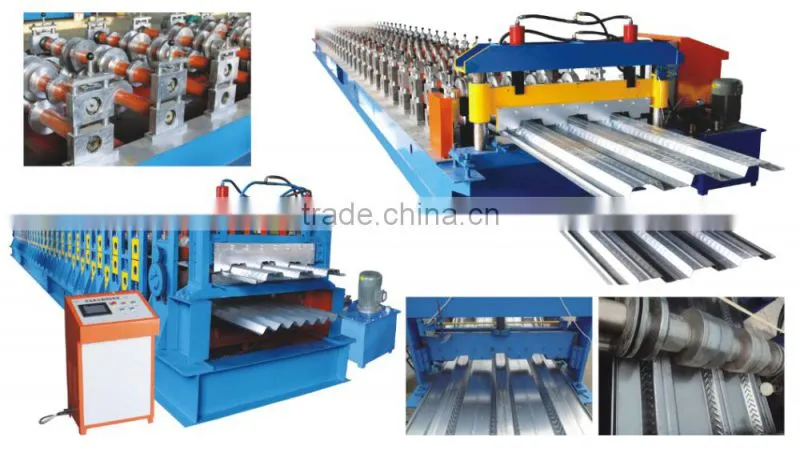

4. floor decker roll forming machine
