Combined UC light gauge or stud roll forming machine
S/N |
Name |
Parameter |
Pictures |
1 |
Decoiler |
Usage: It is used to support the steel coil and uncoil it in a turntable way. Passive uncoil pulled by roll forming system Loading capacity: 2.5T * 2 Uncoiling width: 300mm Inner diameter: 450-550mm |
|
2 |
Feeding and leveling |
This part will level coil to make sure it is neat clean and straight. Meanwhile the roller will punch dots at both side of the C channel. |
|
3 |

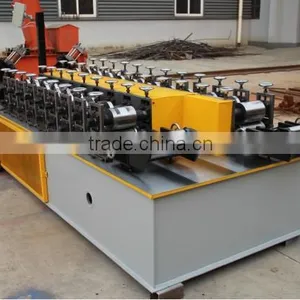

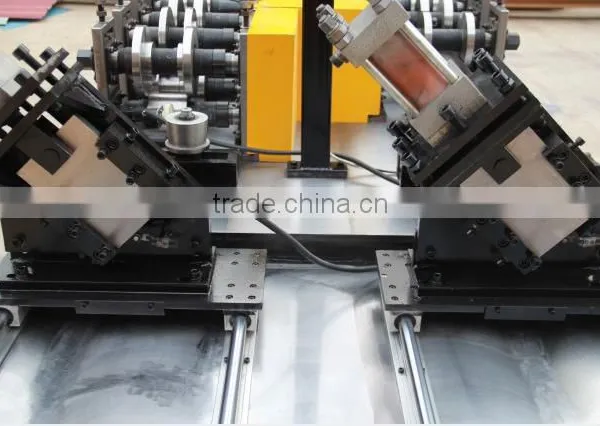

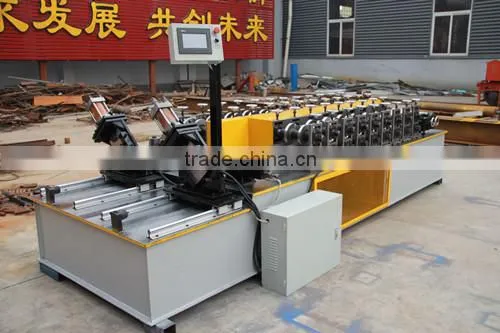

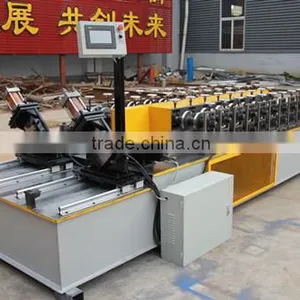

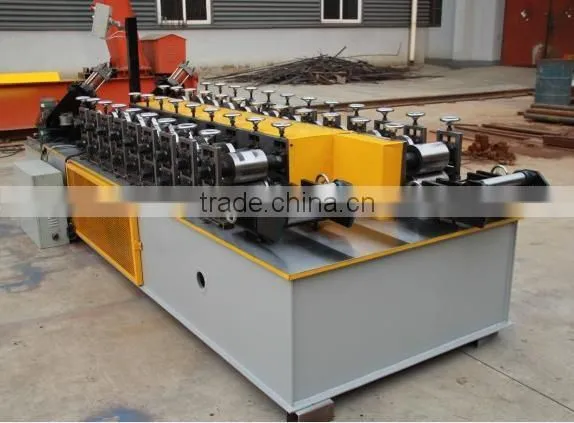

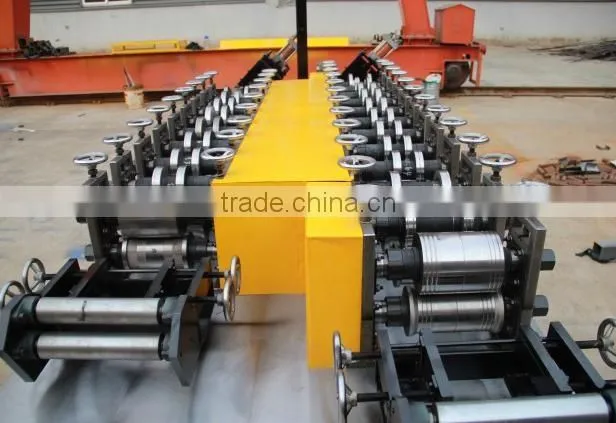

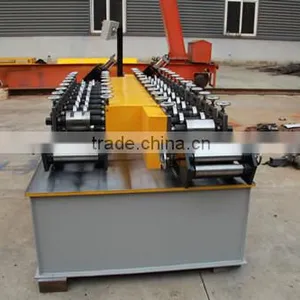

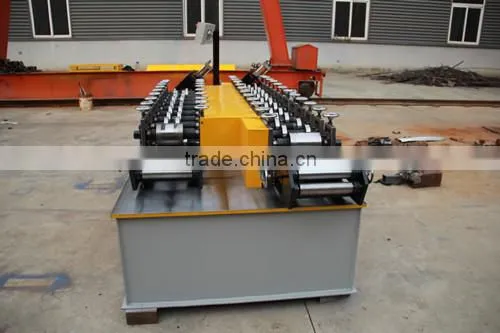

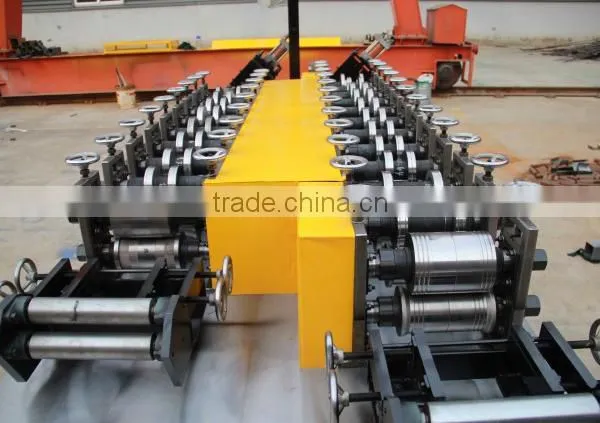

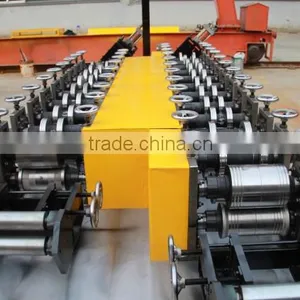

Roll forming machine
|
Size:5800*1800*1500 Weight:4.8tons Voltage:380V/50HZ3Phase(as customer’s request) Roller fixer : Guide column Frame : middle plate welded Memorial arch frame type Frame thickness:25mm Drive mode: gear Material of rollers: GCr12MoV Material of shafts: 45# steel with tempering Diameter of shafts: φ50mm Number of rollers : 11rollers Main power: 7.5kw Cycloidal planetary gear speed reducer) |
|
5 |

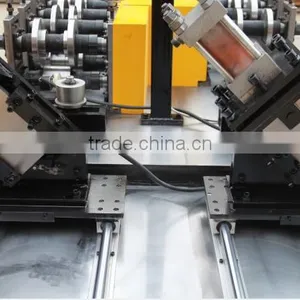

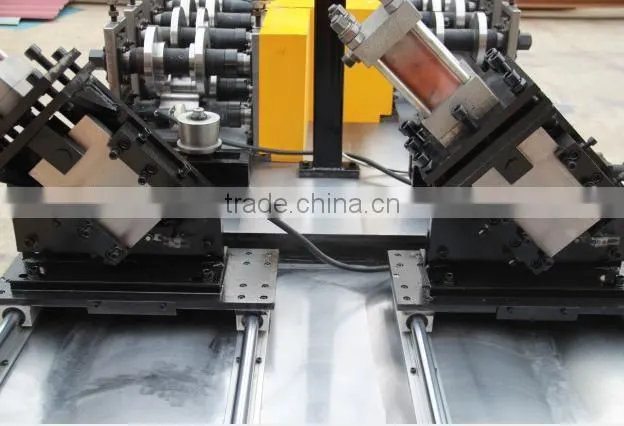

Shearing machine |
Together with punching words, cutting will be done together. Material of blades: Gcr12 quenched Power supply : hydraulic power Frame : Pillar style with rack & pinion system Stroke switch : non-contact photoelectric switch |
|
6 |
Hydraulic Station
|
Hydraulic motor Power:4kw Hydraulic oil: 46# Components: The system includes a set of hydraulic tank, a set of hydraulic oil pump, and two hydraulic pipes. And three sets of electromagnetism valves. |
|
7 |
Electric Control System
|
Feature: 1. Adopted PLC, transducer, touch panel from Delta Taiwan to ensure high speed with stability, precision and lifetime. 2.Other electric element are Delta 3. Equipped with movable switch, air break, radiator, transformer & electric leakage protector for operation convenience and safety. |
|
8 |

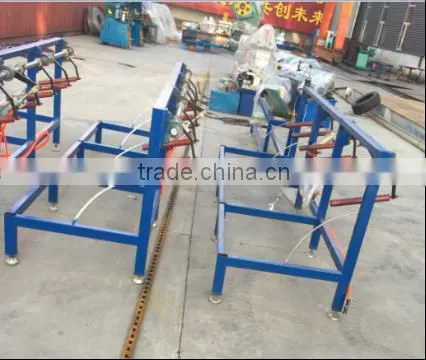

Automatic 4m length receiving table |
It adopts welded steel and supported roller to transmit the products |
|
If want more details, feel free to contact me by the following contact information:
Packaging
1. one 20ft container for loading one set machine with manual decoiler;
2. the whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3. Spare parts and some small parts packed in plastic tooling box;
4. All Components Fixed by steel wire with Container.
Spare parts ( for free)
1. Easy damaged parts: conk 2 pcs, fuse-link 4 pcs;
2. Rubber mat 1 pcs;
3. Bolt spanner 1 pcs
1. Installation and training:
a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
2. After Service
a.One year guarantee for whole machine.
b.24 hours technical support by email or calling
c.If there is any problem found of the machine, we will repair it for free in one year.
Cangzhou ZHONGTUO cold roll forming machinery Co., Ltd is a professional manufacturer and exporterwhich has its own factory and also cooperate with several production factories and associated nterprises, concerning with
the design, development and production of cold roll forming machines,material of building. It is located in
northwest of CangZhou, as a long history of cold roll formingmachine production base. All products comply
with international quality standards and are greatlyappreciated in variety of different markets throughout the
world, such as Asia, Africa, Europe,South America, and Australia and so on.
1. Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.We need
your machines running in order to keep your business running.
2. How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick
up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then
we can pick up you.
3. What can you do if the machine broken?
Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts repla
ce the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can throug
h negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipme
nt.
4. Can you be responsible for transport?
Yes,please tell me the destination port or address.we have rich experience in transport.
5. How long the machine could be made?
Normally speaking, welded pipe making machine could be made without 45 working days. If you need machines in a hurry, we can make it for you less than a month.
