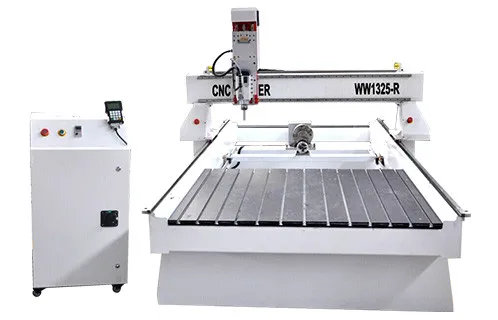

2016 New Type WW325R CNC Router Machine With 4Th Axis Rotary Table

2016 New Type WW325R CNC Router Machine With 4Th Axis Rotary Table thumbnail-1
2016 New Type WW325R CNC Router Machine With 4Th Axis Rotary Table thumbnail-2
2016 New Type WW325R CNC Router Machine With 4Th Axis Rotary Table thumbnail-3
2016 New Type WW325R CNC Router Machine With 4Th Axis Rotary Table thumbnail-4
2016 New Type WW325R CNC Router Machine With 4Th Axis Rotary Table thumbnail-5
2016 New Type WW325R CNC Router Machine With 4Th Axis Rotary Table thumbnail-6
2016 New Type WW325R CNC Router Machine With 4Th Axis Rotary Table photo-1
2016 New Type WW325R CNC Router Machine With 4Th Axis Rotary Table photo-2
2016 New Type WW325R CNC Router Machine With 4Th Axis Rotary Table photo-3
2016 New Type WW325R CNC Router Machine With 4Th Axis Rotary Table photo-4
2016 New Type WW325R CNC Router Machine With 4Th Axis Rotary Table photo-5
2016 New Type WW325R CNC Router Machine With 4Th Axis Rotary Table photo-6
US$ 8,400 - 21,800 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China
Contact Supplier Request Quote Chat Now
WinWin Machinery Co., Ltd.(Jinan)
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
CNC or Not CNC
Place of Origin Shandong, China
Brand Name WinWin
Model Number WW1325R
Voltage AC220v/380V, 50/60Hz
Power(W) 4.5KW
Dimension(L*W*H) 1300*2500*400mm
Weight 1250KG
Certification CE, UL, ISO
Warranty 1Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

2016 New Type WW325R CNC Router Machine with 4Th Axis Rotary Table

Overview

This machine is especially designed for engraving Rotary Grande with the panel length 1500mm T-slot table, and 1000 mm long rotary table. The machine works with 400mm Z (height) of job size, and 500 mm for the rotary, and rotary diameter can be 1000 mm, 1000 mm long cylinder.
We use stepper motor 3.0kW HSD spindle, Delta inverter and dust collector machine that is qualified for a job and the size of the timber, and large mass production.
With hard steel structure, the machine is suitable for the job of hardwood, such as cutting and engraving rosewood for furniture, interior decoration, and qualified for the mass production of furniture in the shape retention vacuum and dust collector.

Advantages

1) The machine’s body is strong, high-precision, reliable and durable.
2) Imported high-precision ball screw, which moving smoothly, to ensure the machine’s high precision.
3). Well-known brands of HSD Air-cooled brushless spindle, strong cutting ability, low noise, to ensure the machine working for long time.
4) High-performance driven motor to ensure the machine’s high speed and accuracy.
5) Perfect design, top quality accessories, to minimize the machine’s failure rate.
6) Breakpoint specific memory to keep the carving status when power off, processing time forecast and other functions in case of the accidental power outages.

Applications

3D Carving, Acrylic Fabrication, Aluminum Fabrication, Architectural Millwork, Cabinetry, Exhibits and Fixtures, Signmaking, Arts and Crafts, Furniture, Boat Building, Musical Instruments and More.

Rotary Option

Materials Cut

Acrylic, ACM, Copper, Brass, Aluminum, PVC, MDF, Melamine plastic, Foam, Melamine, Phenoic, Plywood, HDPE, Solid Surface, Solid Wood, etc.

Specifications for WW1325R CNC Router Machine with 4Th Axis Rotary Table
NO.
Description
Parameter
01
X,Y,Z Working Area
1300x1500x400mm&1000*1000*500mm
02
Table Size
1360×2940mm
03
X,Y,Z Traveling Positioning Accuracy
±0.03/300mm
04
X,Y,Z Repositioning Accuracy
±0.03mm
05
Table Surface
T-slot (Option: Vacuum and T-slot Combined )
06
Frame
Welded Structure
07
X, Y Structure
Rack and Pinion Drive, Hiwin Rail Linear Bearings
08
Z Structure
Hiwin Rail Linear Bearings and Ball Screw
09
Max. Power Consumption
(Without Spindle) 4.5Kw
10
Max. Rapid Travel Rate
33000mm/min
11
Max. Working Speed
25000mm/min
12
Spindle Power
3.0/4.5/6/7KW
13
Spindle Speed
0-18000RPM
14
Drive Motors
Stepper System
15
Working Voltage
AC380V/50/60Hz,3PH (Option: 220V)
16
Command Language
G Code
17
Operating System
DSP System (Options: Ncstudio/Mach3 PC Software)
18
Computer Interface
USB
19
Flash Memory
128M(U Disk)
20
Collet
ER25
21
X,Y Resolution
<0.01mm
22
Software Compatibility
Type3/UcancameV9 Software (Option: Artcam software)
23
Running Environment Temperature
0 - 45 Centigrade
24
Relative Humidity
30% - 75%
25
Packing Size
3350X2100X2150mm
26
N.W.
1300KG
27
G.W.
1450KG
28
Optional Parts
Air Cooling Spindle or Water Cooling Spindle
Syntec Control System
Dust Collector/ Dust Hoods for three Axis
Vacuum Pump
Rotary System
Mist-cooling System
850W Yaskawa/800W Panasonic Servo Motors
Detailed Images

Spindle

Brand: HSD
Original: Italy
Italian Air-cooling spindle, or top quality water-cooling
spindle.

Gantry

Original: China
Gantry thickness 8~10 mm, with the aging threatment.

Electrical Parts

Brand: Omron, Schneider, Delta.
Original: Germany, China
All electrical components, cabinet, assembling and wiring meet the standard of CE and ANSI.

Driving System

Brand: YASKAWA etc.
Original: Japan, China
Whatever stepper or servo driving system we use, all of
them are top quality with CE & CCC.

Transmation System

Brand: HIWIN, THK, TBI
Original: Taiwan, Japan
Ball screw made in Germany, rack&pinion with bigger

size, Taiwan Hiwin & Japan THK adopted.

Wire

Original: China
High flexible shielding cable, working between -75℃ to
115℃. 95% shielding scope.

Certifications
Video

4Axis 1335R-500 Rotary Part Working


CNC Router to Engrave on Foam


Basic Accessories
Packing & Delivery
Packaging
Size
335(L) * 210 (W) * 215 (D)
Weight
1.45 T



Packaging Details
The normal package is plywood box(Size: L*W*H). Delivered with in 2 weeks after the payment.
