High Quality EPS1325R-600 Rotary CNC Engraving Machine for 3D Art

High Quality EPS1325R-600 Rotary CNC Engraving Machine for 3D Art thumbnail-1
High Quality EPS1325R-600 Rotary CNC Engraving Machine for 3D Art thumbnail-2
High Quality EPS1325R-600 Rotary CNC Engraving Machine for 3D Art thumbnail-3
High Quality EPS1325R-600 Rotary CNC Engraving Machine for 3D Art thumbnail-4
High Quality EPS1325R-600 Rotary CNC Engraving Machine for 3D Art thumbnail-5
High Quality EPS1325R-600 Rotary CNC Engraving Machine for 3D Art thumbnail-6
High Quality EPS1325R-600 Rotary CNC Engraving Machine for 3D Art photo-1
High Quality EPS1325R-600 Rotary CNC Engraving Machine for 3D Art photo-2
High Quality EPS1325R-600 Rotary CNC Engraving Machine for 3D Art photo-3
High Quality EPS1325R-600 Rotary CNC Engraving Machine for 3D Art photo-4
High Quality EPS1325R-600 Rotary CNC Engraving Machine for 3D Art photo-5
High Quality EPS1325R-600 Rotary CNC Engraving Machine for 3D Art photo-6
US$ 11,400 - 31,800 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China
Contact Supplier Request Quote Chat Now
WinWin Machinery Co., Ltd.(Jinan)
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
CNC or Not CNC
Place of Origin Shandong, China
Brand Name WinWin
Model Number EPS1325R-600
Voltage AC220v/380V, 50/60Hz
Power(W) 4.2KW
Dimension(L*W*H) 3990*2250*2190mm(Packing size)
Weight 3200kg
Certification CE, UL, ISO
Warranty 1Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

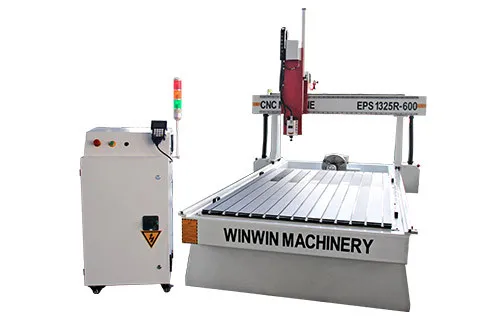

High Quality EPS1325R-600 Rotary CNC Engraving Machine for 3D Art

Overview

This CNC Engraving Machine for 3D Art is especially designed for engraving on both panle and cylinder. The machine works with 600mm Z (height) of job size, and 1200 mm diameter for the rotary,with 1200mm*2500mm removable T-slot table.
We use stepper motor 3.0kW HSD spindle, Delta inverter and dust collector machine that is qualified for a job and the size of the timber, and large mass production.
With hard steel structure, the machine is suitable for the job of hardwood, such as cutting and engraving rosewood for furniture, interior decoration, and qualified for the mass production of furniture in the shape retention vacuum and dust collector.

Advantages

1) The machine’s body is strong, high-precision, reliable and durable.
2) Imported high-precision ball screw, which moving smoothly, to ensure the machine’s high precision.
3). Well-known brands of HSD Air-cooled brushless spindle, strong cutting ability, low noise, to ensure the machine working for long time.
4) High-performance driven motor to ensure the machine’s high speed and accuracy.
5) Perfect design, top quality accessories, to minimize the machine’s failure rate.
6) Breakpoint specific memory to keep the carving status when power off, processing time forecast and other functions in case of the accidental power outages.

Applications

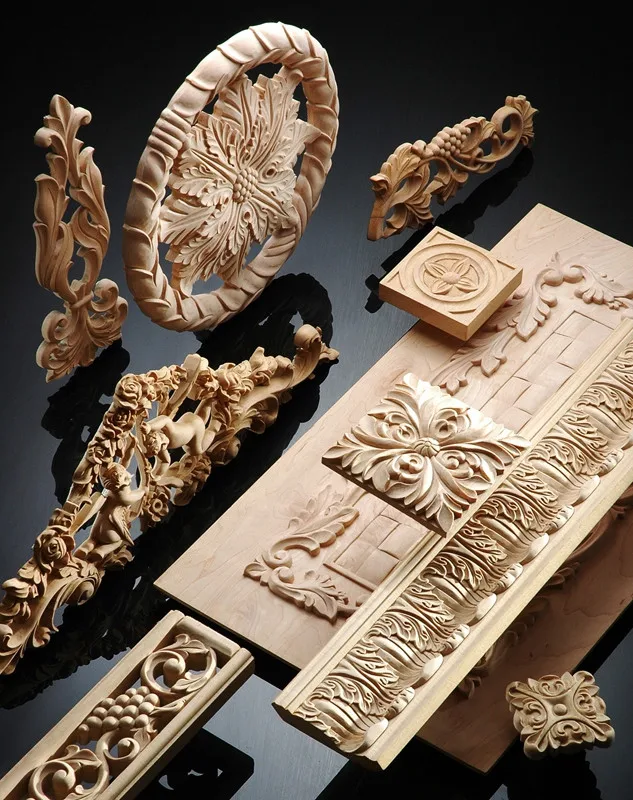

3D Carving, Acrylic Fabrication, Aluminum Fabrication, Architectural Millwork, Cabinetry, Exhibits and Fixtures, Signmaking, Arts and Crafts, Furniture, Boat Building, Musical Instruments and More.

Materials Cut

Acrylic, ACM, Copper, Brass, Aluminum, PVC, MDF, Melamine plastic, Foam, Melamine, Phenoic, Plywood, HDPE, Solid Surface, Solid Wood, etc.

Specifications for EPS1325R-600 CNC Engraving Machine for 3D Art
NO.
Description
Parameter
01
X,Y,Z Working Area
1300x2500x600mm&1200*2500*600mm
02
Table Size
1360×2540mm
03
X,Y,Z Traveling Positioning Accuracy
±0.03/300mm
04
X,Y,Z Repositioning Accuracy
±0.03mm
05
Table Surface
T-slot removable type
06
Frame
Welded Structure
07
X, Y Structure
Rack and Pinion Drive, Hiwin Rail Linear Bearings
08
Z Structure
Hiwin Rail Linear Bearings and Ball Screw
09
Max. Power Consumption
(Without Spindle) 4.5Kw
10
Max. Rapid Travel Rate
33000mm/min
11
Max. Working Speed
25000mm/min
12
Spindle Power
3.0/4.5/6/7KW
13
Spindle Speed
0-18000RPM
14
Drive Motors
Stepper System
15
Working Voltage
AC380V/50/60Hz,3PH (Option: 220V)
16
Command Language
G Code
17
Operating System
DSP System (Options: Ncstudio/Mach3 PC Software)
18
Computer Interface
USB
19
Flash Memory
128M(U Disk)
20
Collet
ER25
21
X,Y Resolution
<0.01mm
22
Software Compatibility
Type3/UcancameV9 Software (Option: Artcam software)
23
Running Environment Temperature
0 - 45 Centigrade
24
Relative Humidity
30% - 75%
25
Packing Size
3390X2250X2190mm
26
N.W.
2850KG
27
G.W.
3200KG
28
Optional Parts
Air Cooling Spindle or Water Cooling Spindle
Syntec Control System
Dust Collector/ Dust Hoods for three Axis
Vacuum Pump
3D Scanner
Mist-cooling System
850W Yaskawa/800W Panasonic Servo Motors
No.
Option Part
1
Vaccum Pump
2
Mist-cooling System
3
Dust Collector
4
Rotary
5
ATC Magazine
Certifications
Detailed Images

Spindle

Brand: HSD
Original: Italy
Italian Air-cooling spindle, or top quality water-cooling
spindle.

Gantry

Original: China
Gantry thickness 8~10 mm, with the aging threatment.

Electrical Parts

Brand: Omron, Schneider, Delta.
Original: Germany, China
All electrical components, cabinet, assembling and wiring meet the standard of CE and ANSI.

Driving System

Brand: YASKAWA etc.
Original: Japan, China
Whatever stepper or servo driving system we use, all of
them are top quality with CE & CCC.

Transmation System

Brand: HIWIN, THK, TBI
Original: Taiwan, Japan
Ball screw made in Germany, rack&pinion with bigger

size, Taiwan Hiwin & Japan THK adopted.

Wire

Original: China
High flexible shielding cable, working between -75℃ to
115℃. 95% shielding scope.

Video

CNC Router to Engrave on Foam


4Axis 1335R-500 Rotary Part Working


Basic Accessories
Packing & Delivery
Packaging
Size
399 (L) * 225 (W) * 219 (D)
Weight
3.20 T



Packaging Details
The normal package is plywood box(Size: L*W*H). Delivered with in 2 weeks after the payment.

Guarantee & After Sales Service

1.)The machine is guaranteed for 12 months.
2.)Technical support by phone, e-mail or MSN around the clock.
3.)Friendly English version manual and operation video CD disk.
