Made in China CNC 0609 Router

Made in China CNC 0609 Router thumbnail-1
Made in China CNC 0609 Router thumbnail-2
Made in China CNC 0609 Router thumbnail-3
Made in China CNC 0609 Router thumbnail-4
Made in China CNC 0609 Router thumbnail-5
Made in China CNC 0609 Router thumbnail-6
Made in China CNC 0609 Router photo-1
Made in China CNC 0609 Router photo-2
Made in China CNC 0609 Router photo-3
Made in China CNC 0609 Router photo-4
Made in China CNC 0609 Router photo-5
Made in China CNC 0609 Router photo-6
US$ 3,100 - 8,800 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China
Contact Supplier Request Quote Chat Now
WinWin Machinery Co., Ltd.(Jinan)
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
CNC or Not CNC
Place of Origin Shandong, China
Brand Name WinWin
Model Number WW6090A
Voltage AC220v, 50/60Hz
Power(W) 2.2KW
Dimension(L*W*H) 1150*900*800mm
Weight 250KG
Certification CE, UL, ISO
Warranty 1Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

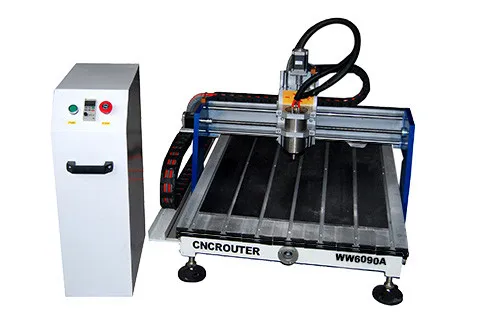

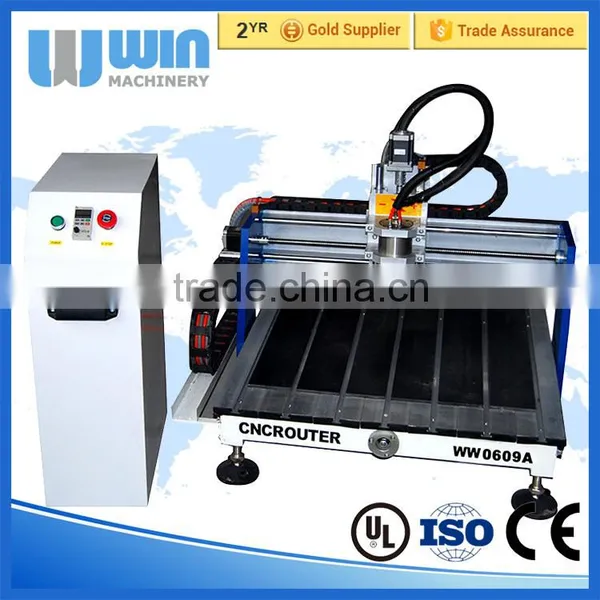

Made in China CNC 0609 Router

Overview

The desktop CNC 0609 Router is an affordable CNC work platform. Ideal for any size shop requiring a compact machine to run small routing jobs or to be used as an educational tool. The desktop Routers features ball screw drives on all three axes and is controlled using a DSP easy-to-use hand-held micro stepper controller. The controller can run G-Code or dxf file formats.

Specifications for WW6090A Mini CNC 0609 Router
NO.
Description
Parameter
01
X,Y,Z Working Area
600x900x90 mm
02
Table Size
710x1140 mm
03
Table Surface
T-slot table
04
X,Y,Z Traveling Positioning Accuracy
±0.01/300mm
05
X,Y,Z Repositioning Accuracy:
±0.01mm
06
Frame
Cast Iron
07
X, Z Structure
Round rails and TBI ball Screw
08
Y Structure
Ball Screw, Hiwin Rail Linear Bearings, Table moving
09
Max. Power Consumption
(Without Spindle) 0.8Kw
10
Max. Rapid Travel Rate
8000mm/min
11
Max. Working Speed
5000mm/min
12
Spindle Power
1.5kw water cooling spindle
13
Spindle Speed
0-24000RPM
14
Drive Motors
Stepper System
15
Working Voltage
AC220V/50/60Hz,1 Ph
16
Command Language
G Code
17
Operating System
DSP System (Options: Ncstudio/Mach3 PC Software)
18
Computer Interface
USB
19
Flash Memory
128M(U Disk)
20
Collet
ER16
21
X,Y Resolution
<0.01mm
22
Software Compatibility
Type3/UcancameV9 Software (Option: Artcam software)
23
Running Environment Temperature
0 - 45 Centigrade
24
Relative Humidity
30% - 75%
25
Packing Size
1300X1100X1000mm
26
N.W.
200KG
27
G.W.
250KG
28
Guarantee
One year from the date of commission

Material Cut

Acrylic, ACM, Copper, Brass, Aluminum, PVC, MDF, Melamine plastic, Foam, Melamine, Phenoic, Plywood, HDPE, Solid Surface, Solid Wood, etc.
Detailed Images

Spindle

Brand: HSD
Original: Italy
Italian Air-cooling spindle, or top quality water-cooling
spindle.

Gantry

Original: China
Gantry thickness 8~10 mm, with the aging threatment.

Electrical Parts

Brand: Omron, Schneider, Delta.
Original: Germany, China
All electrical components, cabinet, assembling and wiring meet the standard of CE and ANSI.

Driving System

Brand: YASKAWA etc.
Original: Japan, China
Whatever stepper or servo driving system we use, all of
them are top quality with CE & CCC.

Transmation System

Brand: HIWIN, THK, TBI
Original: Taiwan, Japan
Ball screw made in Germany, rack&pinion with bigger

size, Taiwan Hiwin & Japan THK adopted.

Wire

Original: China
High flexible shielding cable, working between -75℃ to
115℃. 95% shielding scope.

Certifications
Basic Accessories
Video

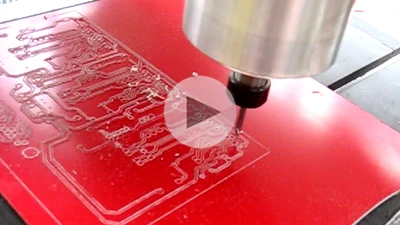

Mini CNC Router to Engrave PCB


CNC Router to Engrave MDF


Packing & Delivery
Packaging
Size
130(L) * 110 (W) * 100 (D)
Weight
250 KG



Packaging Details
The normal package is plywood box(Size: L*W*H). Delivered with in 2 weeks after the payment.

Guarantee & After Sales Service

1.)The 0609 router machine is guaranteed for 12 months.
2.)Technical support by phone, e-mail or MSN around the clock.
3.)Friendly English version manual and operation video CD disk.
