forland refrigerated truck body panels for refrigerated truck body machines

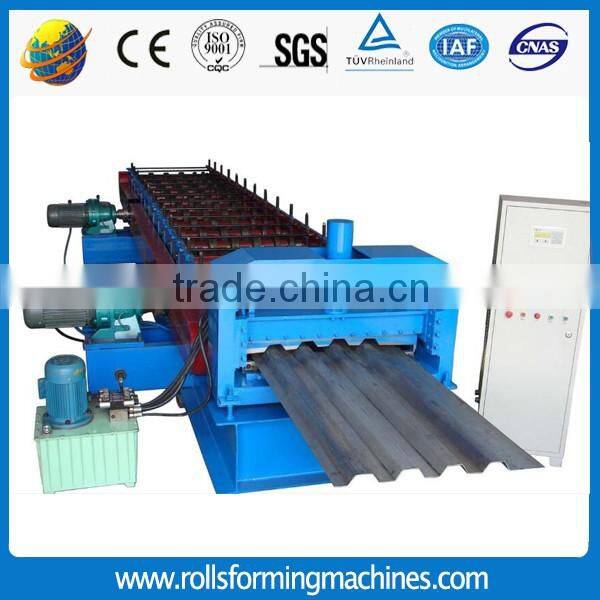

Technical parameters of roll forming machine:
1. Technique parameters of the processing line
Main parameters of ZT-900 roll forming machine | ||
1 |
Suitable to process |
Color steel plate, galvanized sheet, aluminum coils and etc. |
2 |
Width of the feeding material |
1000mm |
3 |

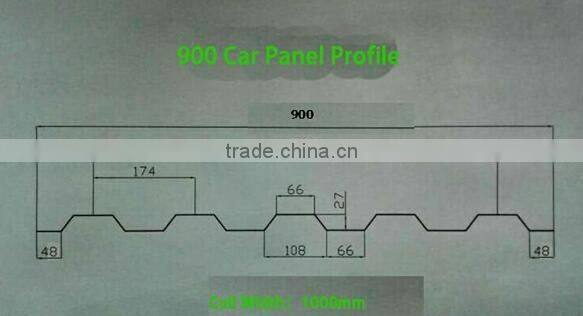

Sheet width |
900mm |
3 |
Roller station |
14 rows |
4 |
Thickness of feeding material |
1.0-2.0mm |
5 |
Productivity |
8-12m/min |
6 |
Rollers' material |
45# steel |
7 |
Diameter of shaft |
90mm |
8 |
Weight |
About 8 T |
9 |
Length |
10 Meters |
10 |
Voltage |
380V 50HZ 3 phases |
11 |
Wall thickness of main forming machine |
14mm steel plate |
12 |
Main forming machine body |
400 mm H steel |
13 |
Motor power |
15 kw |
2. Processing technique and deployment
Processes: Manual decoiler — Roll forming machine — PLC system — Hydraulic system -Post cut - Run out Table
Equipment and Qty. | |
Decoiler |
1 set |
Main roll forming machine |
1 set |
PLC control station |
1 set |
Hydraulic station |
1 set |
Post cut |
1 set |
Electric motor |
1 set |
Output table |
1 set |
FAQ
1 How can we install the spiral welded pipe roll forming machine?
a When finished the spiral welded pipe roll forming machine, you can with your techinian or one of your worker to our factory inspect the machine. While we run the spiral welded pipe bending machine , we can teach your techinian how install the machine and run the machine.
b If you do not plan to come the inspect the machine running, we can send you the machine running vedios and machine manual which telling how to install the machines.
c We also have a strong machine installing team which ever go to custoer's country install many machines.
If you demand our technian to work with you, our techinian can go to your place teach our worker's .
But, our techinian's accomodations should be arranged by your sides and pay 50 USD/day .
