Iron Sheet Bending Machine
US$ 3,000 - 4,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
Zhongtuo
Model Number:
ZT-890
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Xingang
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Horizontal Curving MachineUS$ 3,000 - 4,000MOQ: 1 Set -
Auto Curved Roofing Sheet Roll Forming Machine forUS$ 3,000 - 4,000MOQ: 1 Set
-
Auto Curved and Crimping MachineUS$ 3,000 - 4,000MOQ: 1 Set
-
Auto Curving and Crimping MachineUS$ 3,000 - 4,000MOQ: 1 Set
-
Arching Roof Roll Forming MachineUS$ 3,000 - 4,000MOQ: 1 Set
Place of Origin
Hebei, China
Brand Name
Zhongtuo
Model Number
ZT-890
After-sales Service Provided
Engineers available to service machinery overseas

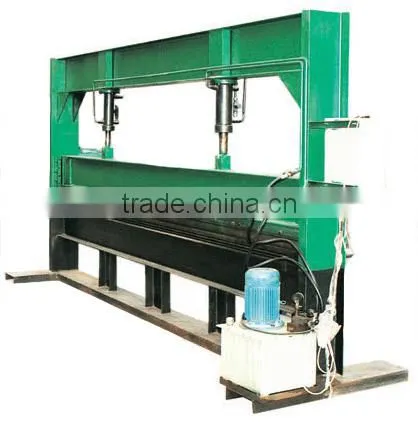

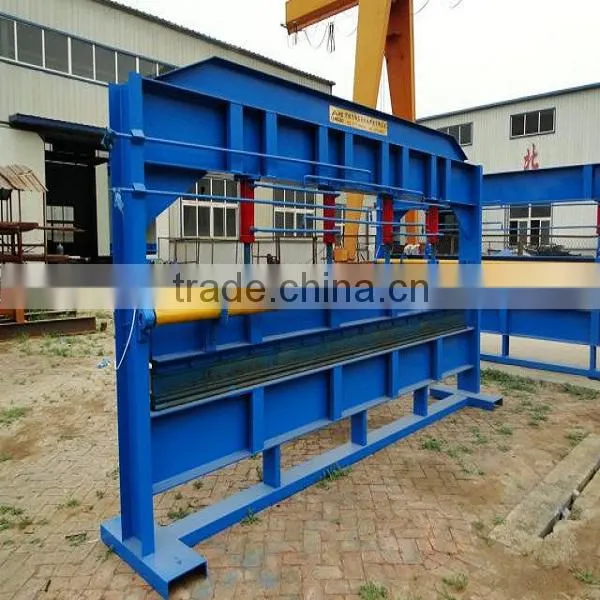

Iron sheet bending machine
AUTO bending roll forming machihe
Technical specifications:
1.Main motor power |
5.5kw |
| 2.speed | 0—6m/min |
| 3.Material thickness | 0.4-0.7mm |
| 4.Mold material | Gr12 steel with quenched treated 58-62°C |

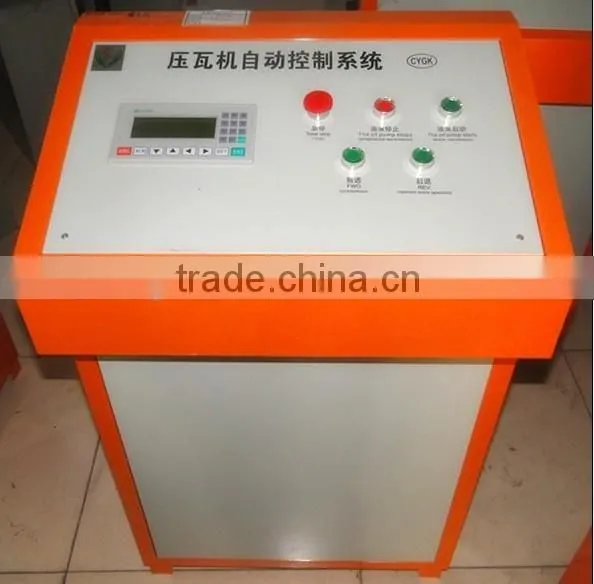

| 5.Control system |
1)Screen: 5.7 inch Taida screen from Taiwan
2)PLC: Taida DVP14ES from Taiwan
3)Coder: ENC-1-1-1T-24 from South Korea |
| 6. Hydraulic system |
1) Advanced hydraulic system from Taiwan 2) Power: 5.5kw
|
| 7.size | 3000 mm×1900 mm×2100 mm |
| 8.the max arc | 180degree |
| 9.the min arc | 110degree |
| 10.weight | 4.5T |
| 11,Voltage | 415v,50Hz,3 phase or customized |
Warranty:
A. One year, and we will provide the technical support for the whole life.
B. Training: the buyer should charge of visa, return ticket, food and accommodation overseas
and USD50/person/day for salary.
C. Need one technicians
D. Training time: one week (contains the time of installation and adjustment).
