Specifications
1.Easy to install and operate2.High efficiency,low power consumption

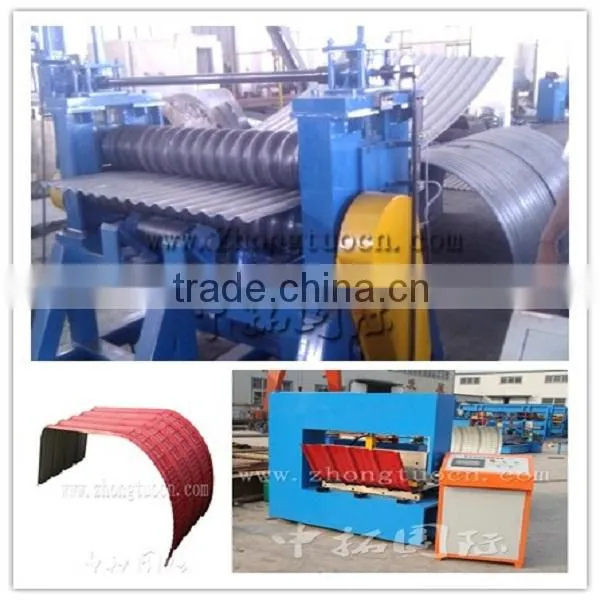

roof tile bending machine
Technical specifications:
1.Main motor power |
5.5kw |
| 2.speed | 5—15m/min |
| 3.Material thickness | 0.4-0.7mm |
| 4.Mold material | Gr12 steel with quenched treated 58-62°C |
| 5.Control system |
1)Screen: 5.7 inch Taida screen from Taiwan
2)PLC: Taida DVP14ES from Taiwan
3)Coder: ENC-1-1-1T-24 from South Korea
|
| 6. Hydraulic system |
1) Advanced hydraulic system from Taiwan 2) Power: 5.5kw
|
| 7.size | 3000 mm×1900 mm×2100 mm |
| 8.the max arc | 180degree |
| 9.the min arc | 110degree |
| 10.weight | 4.5T |
| 11,Voltage | 415v,50Hz,3 phase or customized |
Other version of figure:( we can according to your drawings provided by customers)
Warranty:
A. One year, and we will provide the technical support for the whole life.
B. Training: the buyer should charge of visa, return ticket, food and accommodation
overseas and USD50/person/day for salary.
C. Need one technicians
D. Training time: one week (contains the time of installation and adjustment).

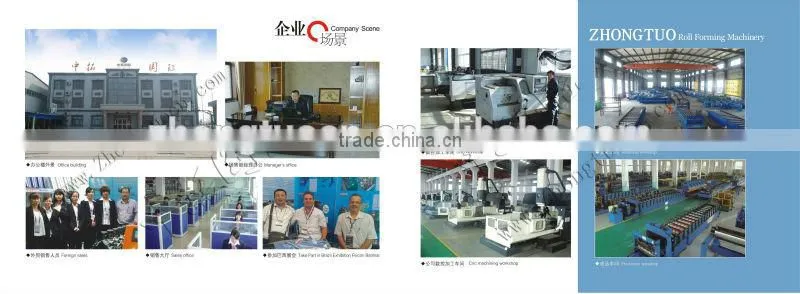

Our factory:

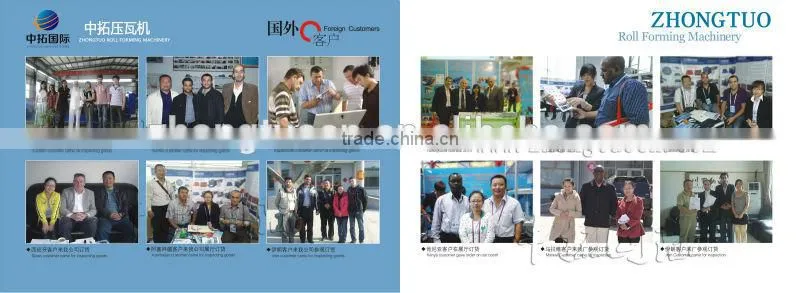

Our exhibition and customers:

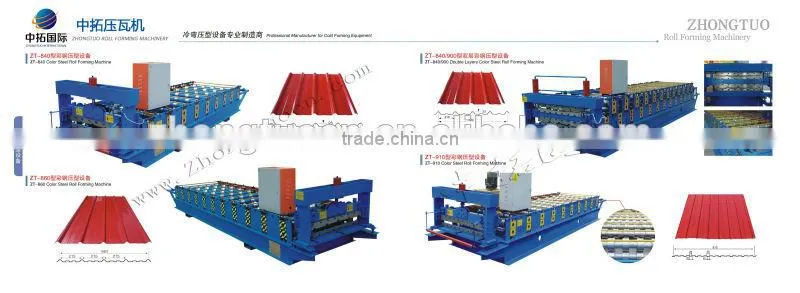

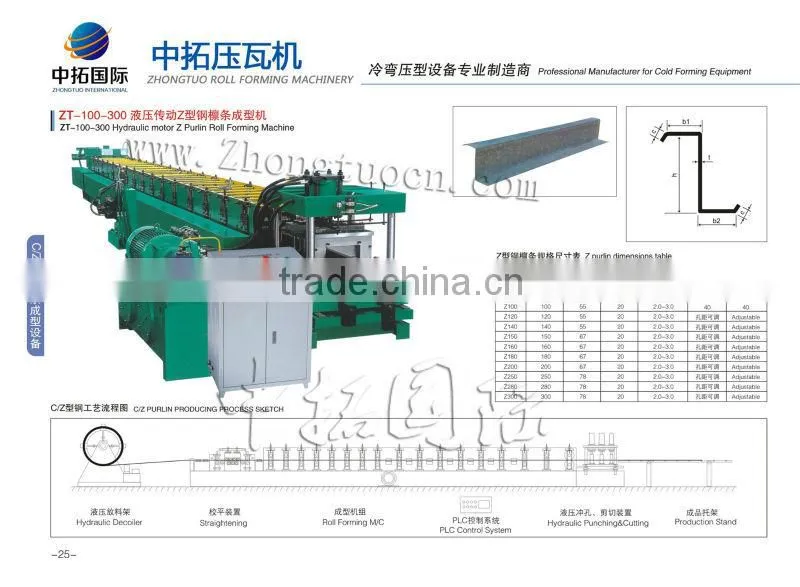

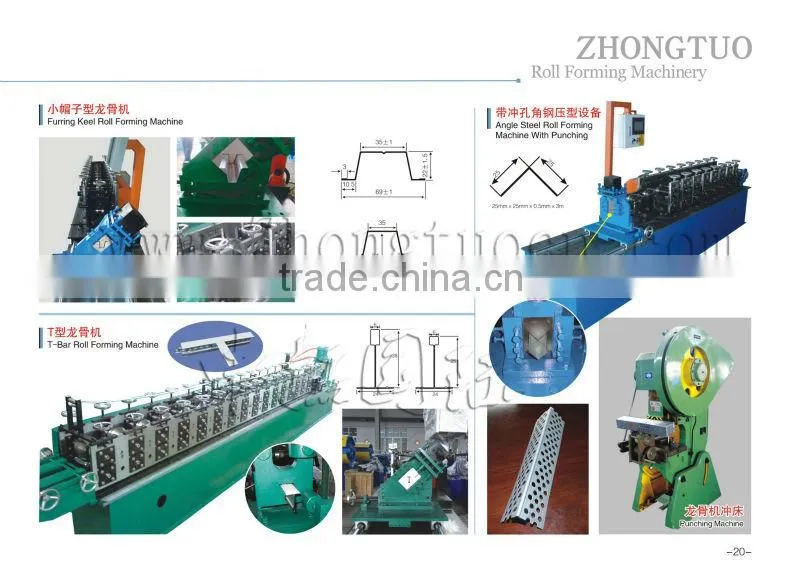

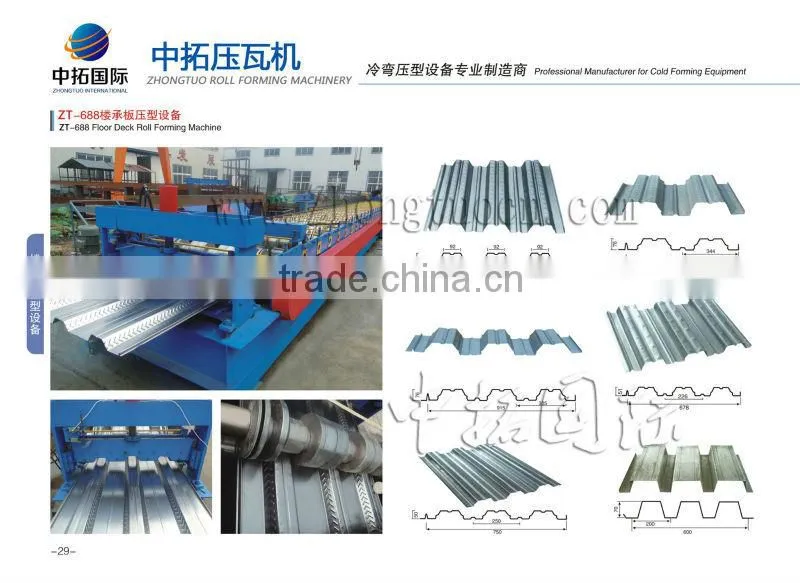

we provide other roll forming machines:
