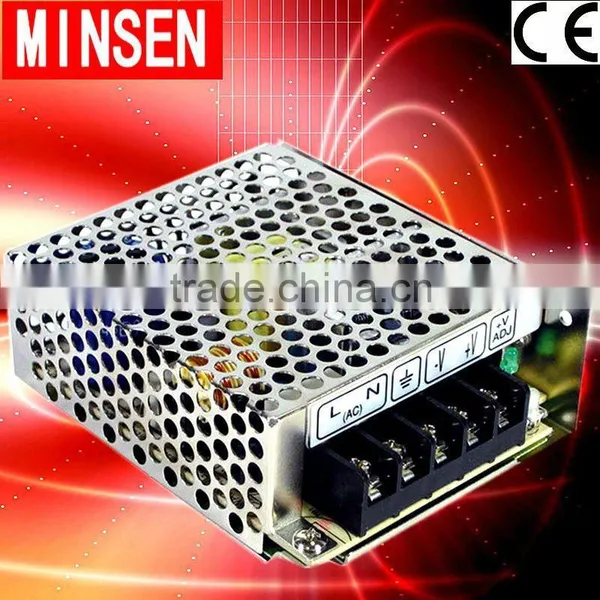

minsen 35w 12v switch power supply

Model
 Specification

S-35-5

S-35-12

S-35-15

S-35-24

 DC output voltage

5V

12V

15V

24V

Output voltage error

±2%

±1%

±1%

±1%

Rated output current

7A

3A

2.4A

1.5A

 Output current rage

0-7A

0-3A

0-2.4A

0-1.5A

Wave and noise(Note 3

75mVp-p

100mVp-p

100mVp-p

100mVp-p

Inlet stability(Note 4

±0.5%

±0.5%

±0.5%

±0.5%

Load stablity (Note 5

±1%

±0.5%

±0.5%

±0.5%

DC output power

35W

36W

36W

36W

Efficiency

70%

76%

78%

78%

Adjustable range for DC voltage

+10,-5%

+10%

+10%

+10%

AC input voltage range

85-132VAC/170-264VACSelected by switch47-63Hz240-370VDC

Input current

0.5A/115V 0.25A/230A

AC Inrush current

Cold-start current15A/115V 30A/230V

Leakage current

<0.5mA/240VAC

Overload protection

105%-150%Type:Fold back:current limiting reset:auto recovery

Over-voltage protection

High-temperature protection

Temperature coefficient

±0.03%/0-50

Setup rise hold up time

200ms,100ms,30ms

Vibration

10-500HZ,2G 10min,/1cycle,Period for60min,Each axes

Withstand voltage

Input and output internal1.5KVAC,Input and enclosure1.5KVAC,Output and enclosure0.5KVAC

Isolation resistance

Input and output internal:Input and enclosure,Output and enclosure500VDC/100MΩ

Working temperature and humidity

-10~+60Refer to output derating curve,20%~90%RH

Store temperature and humidity

-20~+85.10%~95%RH

Overall dimension

129×98×38mm

Weight

0.4Kgs

Safety standards

Meet UL 1012 requirement(Not apply for the mark)

EMC standards

Meet FCC part15J Conduction classB

Note
1.The testing condition for the paramenter above is :230VAC input,rated load,2570% RH.Humidity.
2.Error.include the setting error,line stability and load stability.(Note:5).
3.Wave test:adopting "A12"double wire for 20MHz,and 0.1UF&47UF capacitor short-circuit for interrupting.
4.Inlet voltage stability test:when is over load,the lowest voltage of inlet is up to the highest voltage.
