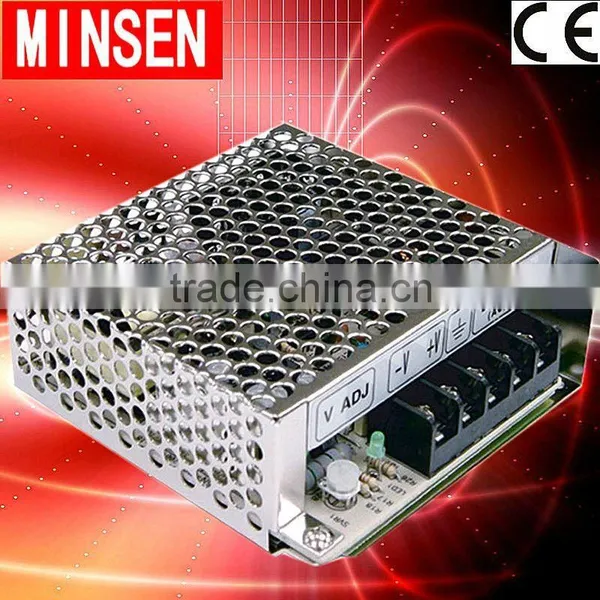

Help CenterS-15-5 15W 5V 3A Switching Power Supply
Related Products
-
T-60B Dve Switching Power SupplyUS$ 1.99 - 10.99MOQ: 100 Pieces -
Electric Bike Controller 48v 350wUS$ 3 - 12MOQ: 5 Pieces
-
Electric Bike 36v ControllerUS$ 3 - 12MOQ: 5 Pieces
-
Electric Bike Motor Controller 250W 350W 450E 500W 600W 800W 1000W 3000WUS$ 3 - 12MOQ: 5 Pieces
-
Brushless Electric Bike Controller 250W 350W 450W 500W 600W 800W 1000W 3000WUS$ 3 - 12MOQ: 5 Pieces
Specifications
1.15w 5v switching power supply2.OEM&ODM welcome
3.factory price ,low price
4.CE Rohs certificated
15w switching power supply:
low price and high reliability, high efficiency
and low operation temperature.
we are switching power supply manufacturer ,And we have factory in zhejiang china ,welcome to visit our factory.
MODEL |
S-15-5 |
S-15-12 |
S-15-24 |
|||
|
OUTPUT DC VOLTAGE
|
5V |
12V |
24V |
|
||
RATED CURRENT |
3A |
1.3A |
0.7A |
|||
CURRENT RANGE |
0 ~ 3A |
0 ~ 1.3A |
0 ~ 0.7A |
|||
RATED POWER |
15W |
15.6W |
16.8W |
|||
RIPPLE & NOISE (max.) Note.2 |
50mVp-p |
50mVp-p |
100mVp-p |
|||
VOLTAGE ADJ. RANGE |
4.75 ~ 5.5V |
10.8 ~ 13.2V |
21.6 ~ 26.4V |
|||
VOLTAGE TOLERANCE Note.3 |
±2.0% |
±1.0% |
±1.0% |
|||
LINE REGULATION |
±0.5% |
±0.5% |
±0.5% |
|||
LOAD REGULATION |
±1.0% |
±0.5% |
±0.5% |
|||
SETUP, RISE, HOLD TIME |
200ms, 100ms, 30ms at full load |
|||||
INPUT |
VOLTAGE RANGE |
85 ~ 132VAC / 170 ~ 264VAC selected by switch 240 ~ 370VDC |
||||
FREQUENCY RANGE |
47 ~ 63Hz |
|||||
EFFICIENCY (Typ.) |
65% |
68% |
72% |
|||
AC CURRENT |
0.5A/115VAC 0.25A/230VAC |
|||||
INRUSH CURRENT (max.) |
COLD START 15A/115VAC 30A/230VAC |
|||||
LEAKAGE CURRENT |
<0.5mA/240VAC |
|||||
PROTECTION |
OVERLOAD |
105 ~ 135% rated output power |
||||
Protection type: Constant current limiting, recovers automatically after fault condition is reoved | ||||||
ENVIRONMENT |
WORKING TEMP. |
-10 ~ +60ºC (Refer to output load derating curve) |
||||
WORKING HUMIDITY |
20 ~ 90% RH non-condensing |
|||||
STORAGE TEMP., HUMIDITY |
-20 ~ +85ºC, 10 ~ 95% RH |
|||||
TEMP. COEFFICIENT |
±0.02%/ºC (0 ~ 50ºC) |
|||||
VIBRATION |
10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes |
|||||
SAFETY & EMC |
SAFETY STANDARDS |
Design refer to UL1012 |
||||
WITHSTAND VOLTAGE |
I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC |
|||||
ISOLATION RESISTANCE |
I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC |
|||||
EMI CONDUCTION & RADIATION |
Design refer to FCC Part15 J Conduction Class B |
|||||
OTHERS |
MTBF |
522.1K hrs min. MIL-HDBK-217F (25ºC) |
||||
DIMENSION |
99*97*36mm (L*W*H) |
|||||
PACKING |
0.30Kg; 60pcs/19.84Kg/0.0326CBM |
|||||
NOTE |
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25ºC of ambient temperature. |
|||||
