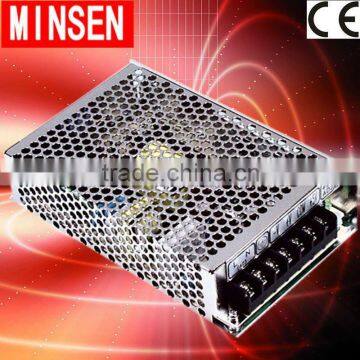

T-60B Dve Switching Power Supply

T-60B Dve Switching Power Supply thumbnail-1
T-60B Dve Switching Power Supply photo-1
US$ 1.99 - 10.99 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Minsen
Model Number:
T-60B
Contact Supplier Request Quote Chat Now
Yueqing Minsen Electric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Minsen
Model Number T-60B
Output Power Other, 60W
Output Type Triple
Input Voltage Other, 110V-220VAC
Output Voltage 5V.12V.-12V
Output Frequency 50HZ
Output Current 5A,2.5A,0.5A

Specifications

1.5/15/-15V DC output
2.CE CCC certification
3.low price
4.AC input power
5.dve switching power supply

T-60B dve switching power supply

we are switching power supply manufacturer .Welcone to visit our factory and cooperation with us





MODEL

T-60A

T-60B

T-60C

CH1

CH2

CH3

CH1

CH2

CH3

CH1

CH2

CH3

OUTPUT

DC VOLTAGE

5V

12V

-5V

5V

12V

-12V

5V

15V

-15V

VOLTAGE TOLERANCE

±2%

±6%

±6%

±2%

±6%

±6%

±2%

±6%

±6%

RATED CURRENT

5A

2.5A

0.5A

5A

2.5A

0.5A

5A

2A

0.5A

CURRENTRANGE

0.5-7A

0.2-3.5A

0-1A

0.5 -7A

0.2-3.5A

0-1A

0.5-7A

0.2-3A

0-1A

RATED POWER

57.5W

61W

62.5W

RIPPLE &NOISE(MAX)

100

mVp-p

100

mVp-p

100

mVp-p

100

mVp-p

100

mVp-p

100

mVp-p

100 mVp-p

100mVp-p

100

mVp-p

DC VOLTAGEFRE QUENCY RANGE

CH1+10,-5%

SETUP,RISE,HOLD TIME

800ms,50ms,10ms/115VAC300ms, 50ms, 80ms/230VAC

INPUT

VOLTAGERANGE

85264 VAC47-63Hz120370VDC

AC CURRENT

2A/115 V1A/ 230 V

EFFICIENCY

69%

72%

72%

INRUSH CURRENT

Cold start 30A/115V60A/230V

LEAKAGE CURRENT

1mA/240VAC

PROTECTION

OVERLOAD PROTECTION

105%150%Fold back current limiting, recovers automatically

OVER-VOLTAGE PROTECTION



HIGH TEMPERATURE PROTECTON

...

ENVIRONMENT

WORKING TEMP.& HUMIDITY

-10+5020%90 %RH

STORAGE TEMP.& HUMIDITY

-20+8510%95 %RH

VIBRATION

10500Hz,2G 10min./1cycle, period for 60min, each along X.Y.Z axes

SAFETY

WITHSTAND VOLTAGE

I/P-O/P3KVACI/P-FG1.5KVACO/P-FG0.5KVAC

ISOLATION RESISTANGE

I/P-O/P, I/P-FG, O/P-FG500VDC/100MΩ

STANDARDS

SAFETY STANDARDS

Design refer to UL1012, EN60950

EMC STANDARDS



OTHERS

WEIGHT

0.55Kg

PACKING

30pcs/17.4Kg/1CUFT

NOTE

1. Tolerance: Includes set up tolerance, line regulation and load regulation.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12 twisted pair-wire teminated with a

0.1μf & 47μf parallel capacitor.

3. All output can achieve the max. current, but full load can not exceed the max. output power

  T-60B dve switching power supplyT-60B dve switching power supplyT-60B dve switching power supplyT-60B dve switching power supply
