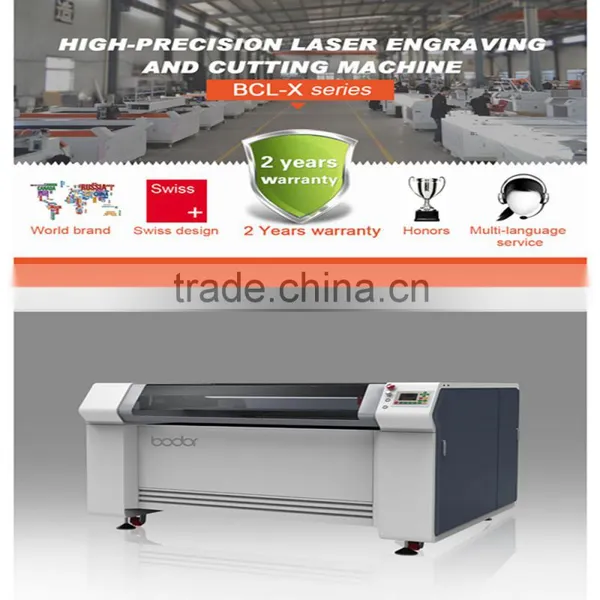

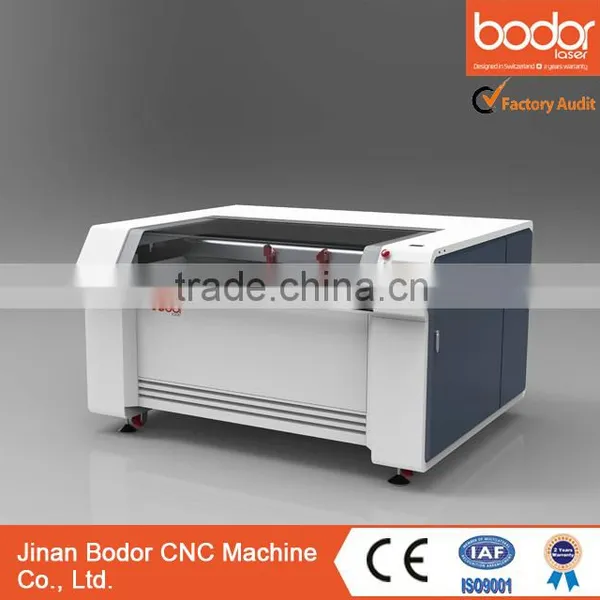

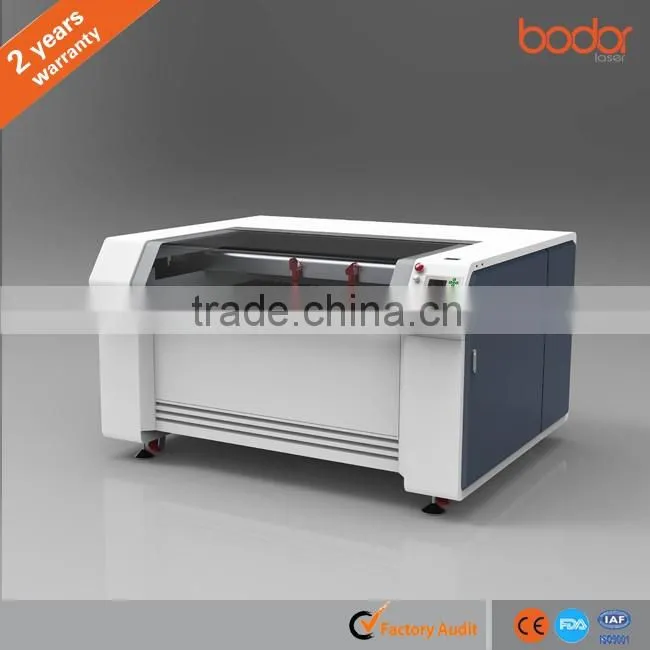

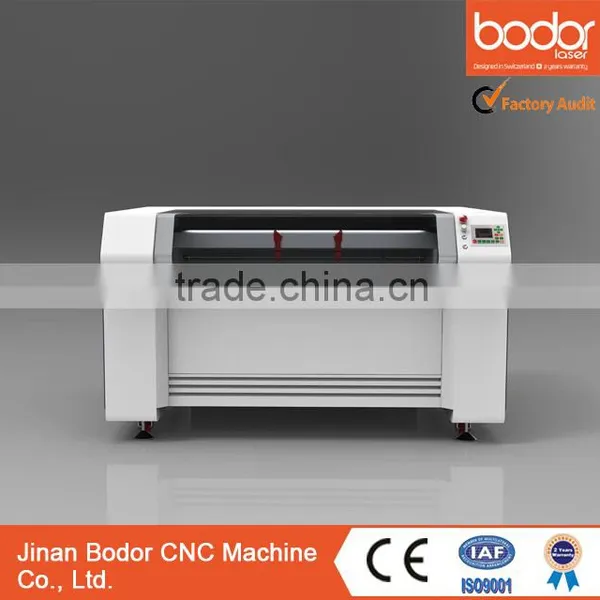

Help CenterBodor Double-head Laser Engraving Cutting Machine BCL-X2H Series With Low Price
Related Products
-
CO2 Type Metal&non Metal Cutting Machine Ball Screw TransmissionUS$ 8,999 - 9,800MOQ: 1 Set -
Bodor New Co2 Laser Cutting Machine With Low Price BCL-BAUS$ 8,500 - 10,000MOQ: 1 Set
-
Bodor Cnc Co2 Laser Engraving Cutting Machine Price BCL-XUS$ 3,200 - 5,200MOQ: 1 Set
-
New Co2 Laser Cutting Machine Price With 3 Year Warranty From BodorUS$ 8,500 - 10,000MOQ: 1 Set
-
New Auto-feeding Laser Cutting Machine Price With 2-year Warranty From BodorUS$ 7,000 - 10,000MOQ: 1 Set
Model |
BCL1309X(H)2H(M) |
BCL1610X(H)2H(M) |
1812X(H)2H(M) |
Working Area |
1300*900mm |
1600*1000mm |
1800*1200mm |
Laser Power |
60w/80w/100w |
||
Laser Type |
CO2 Sealed Laser Tube,10.6μm |
||
Cooling Type |
Water Cooling |
||
Engraving Speed |
0-60000mm/min |
||
Cutting Speed |
0-40000mm/min |
||
Laser Output Control |
0-100% Set by Software |
||
Min.Engraving Size |
Chinese:2.0mm*2.0mm,English Letter:1.0mm*1.0mm |
||
Highest Scanning Precision |
4000DPI |
||
Locating Accuracy |
≤+0.01mm |
||
Controlling Software |
DSP Control System |
||
Graphic Format Supported |
DST PLT BMP DXF DWG AI LAS,etc |
||
Compatible Software |
CORELDRAW,PHOTOSHOP,AUTOCAD,TAJIMA,etc. |
||
Color Separation |
Yes |
||
Drive System |
High-precision 3-phase Stepper Motor |
||
Auxiliary Equipments |
Exhaust Fan and Air Exhaust Pipe |
||
Power Supply |
AC110V/220V+10%,50HZ/60HZ |
||
Working Environment |
Temperature:0-45C,Humidity5-95%(No Condensate Water) |
||
Option |
Up&Downtable,Honeycomb Worktable,Rotary Device,Auto-focus Device |
||
Improved single head laser engraving machine, realize the free switching of single , double
laser head, and double laser head working at the same time, saves time and manpower.
Single and double laser tube, working exchange freely according to customer is working
inquiry. Improve working efficiency.
Each laser head reaches to total working size. Free setting up distance between two laser
head, works frequently.
Features
1. Single and double laser tube, working exchange freely according to customer is working inquiry. Improve working efficiency.
2. Each laser head reaches to total working size. Free setting up distance between two laser head, works frequently.
Gaurantee and after sale service:
Gurantee the whole machine for one year and laser tube for 3 months(The longest warranty time is 10 months.); offer lifelong repair; laser tube’s average life is 6000-10000 working hours(depends on the laser power); Offer 24 - hour technical support.
Jinan Bodor CNC Machine Co.,Ltd was founded in 2002. In 2008 we formally changed name to Bodor with RMB 10 million registered capital.For 12 years,Bodor laser has always been devoted in studying and manufacturing laser cutting,engraving and marking etc.
With all Bodor staff persistence and hard working,Bosor laser has developed to a large-scale international manufacturing company.More accuracy,more automatically and higher quality products with intimate after-sales service enables Bo... View detail
