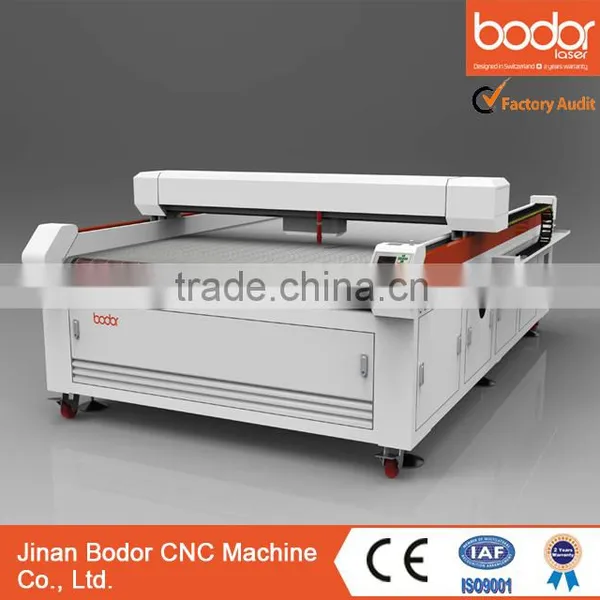

Help CenterBodor New Co2 Laser Cutting Machine With Low Price BCL-BA
Related Products
-
Bodor Cnc Co2 Laser Engraving Cutting Machine Price BCL-XUS$ 3,200 - 5,200MOQ: 1 Set -
New Co2 Laser Cutting Machine Price With 3 Year Warranty From BodorUS$ 8,500 - 10,000MOQ: 1 Set
-
New Auto-feeding Laser Cutting Machine Price With 2-year Warranty From BodorUS$ 7,000 - 10,000MOQ: 1 Set
-
Bodor Mini Laser Engraving Cutting Machine Price With 2 Years WarrantyUS$ 2,200 - 3,000MOQ: 1 Set
-
New Co2 Laser Cutting Machine With 2 Years Warranty BCL-B From BodorUS$ 5,000 - 10,000MOQ: 1 Set
Welcom to Bodor

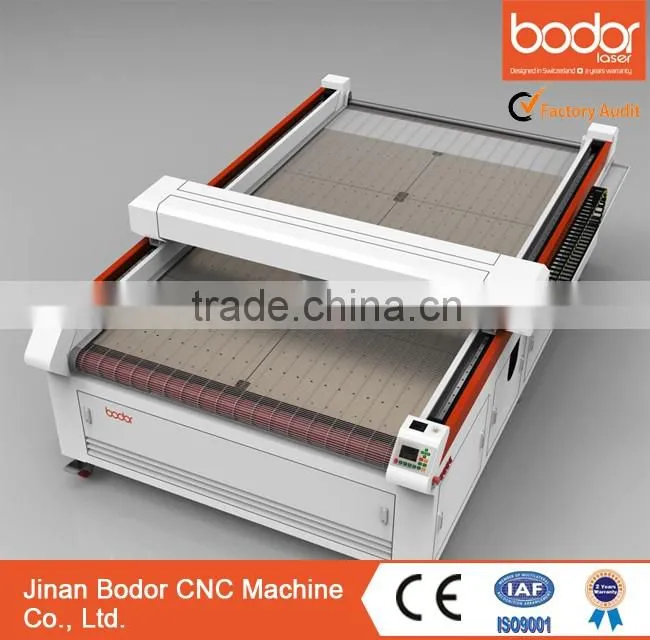

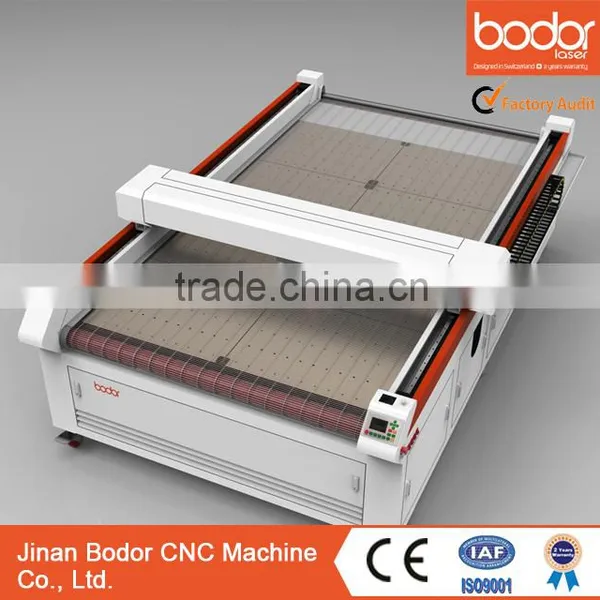

- The automatic feeding system is added to save time and cost, and to improve work efficiency.
- Crawler correction device can prevent crawler belt dislocation when working.
- Cloth auto-collecting device is very convenient for users to collect cloth.
- Multi-layer feeding device is already for users to process multi-layer cloth at the same time.
- To meet the demand of cutting in large width, Bodor laser cutting machine bed adopts the machine tool-level chassis to ensure the stability and accuracy in high speed working.

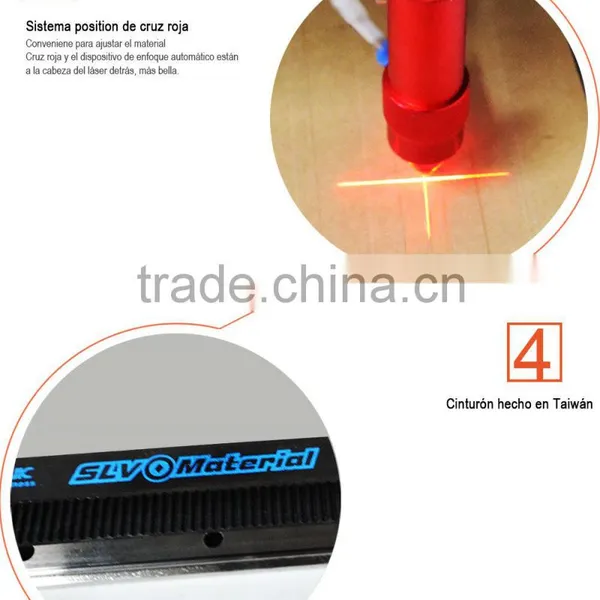

- The moving system adopts Taiwan Hiwin linear guide and precision gear, matched up with the advanced DSP-controlled 3-phase stepper motor to ensure the working accuracy.
- News-style high-efficiency laser tube is adopted. Laser beam is more stable than the traditional type. Usage age is more than 10000 hours.
Technical Parameter
| Model | BCL1625BA | BCL1830BA | Option |
| Working Area | 1600*2500mm | 1800*3000mm | According to Demands |
| Laser Power | 60w/80w / 100w / 130w / 150w | ||
| Laser Type | CO2 Sealed Laser Tube,10.6μm | ||
| Cooling Type | Water Cooling | ||
| Cutting Speed | 0—30000mm/min | ||
| Laser Output Control | 0—100% Software Setting | ||
| Smallest Character Engraving | 2.0*2.0mm1.0*1.0mm / English 1.0mm*1.0mm | ||
| Highest Scanning Precision | 4000DPI | ||
| Locating Precision | ≤+0.01mm | ||
| Controlling Software | DSP Control System | ||
| Graphic Format Supported | DST PLT BMP DXF DWG AI LAS,etc | ||
| Compatible Software | TAJIMA,CORELDRAW,PHOTOSHOP,AUTOCAD,All type of AUTOCAD Sofeware in Cloth | ||
| Color Separation | Yes | ||
| Drive System | High-precision 3-phase Stepper Motor | ||
| Auxiliary Equipments | Exhaust Fan and Air Exhaust Pipe | ||
| Power Supply | AC110V/220V+10%,50HZ/60HZ | ||
- Garments sampling
- Leather industry
- Shoemaking
- Decoration
- Advertisement
- Packing and printing etc.
Applicable Materials:
- Fabrics
- Leather
- Cloth
- Paper
- Ccanvas, etc.
Warranty and after sale service:
- Warranty the whole machine for 2 YEARS and laser tube for 10 months
- Offer lifelong repair
- Laser tube’s average life is 10000 working hours
- Offer 24 - hour technical support.

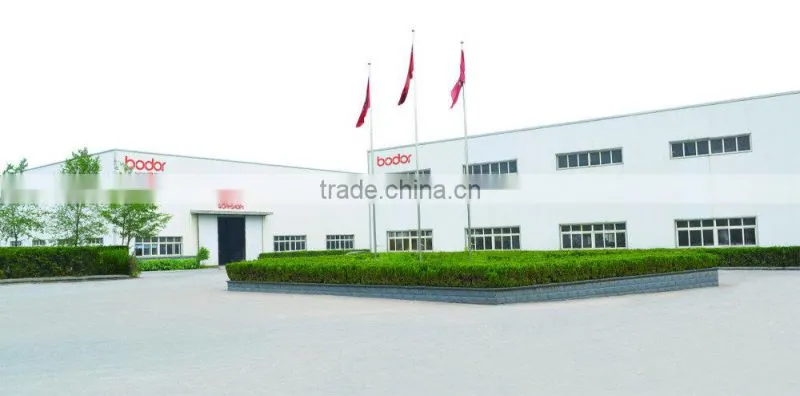

About Bodor
Jinan Bodor CNC Machine Co.,Ltd was founded in 2002.In 2008 we formally changed name to Bodor with RMB 10 million registered capital.For 12 years,Bodor laser has always been devoted in studying and manufacturing laser cutting,engraving and marking etc.
With all Bodor staff persistence and hard working,Bodor laser has developed to a large-scale international manufacturing company.More accuracy,more automatically and higher quality products with intimate after-sales service enables Bodor be the leader of laser industry.Suitable services for customers,2-year warranty products,standard scientific management make bodor earn the best reputation and word-wide trusted customers.
For 12 years,Bodor laser machines cover all Chinese market and also very popular in America,West Europe,South Asian,East Asian etc. More than 80 countries. Bodor lasers will try our best to serve for you suitable laser solutions. Welcome you to join Bodor family,share top laser products and services together with word-wide customers.
For offer the most suitable machine with favorable price, would you like to confirm below questions:
======================================
1) What is your reuqested max working area, X:___mm, Y:___mm?
2) What mainly job you do ? Only engrave, cut or both ?
3) What kind are your materials, metal or non-metal, what are they?
======================================
After your return comments, we will send you more information about the machine along price . Thanks.
