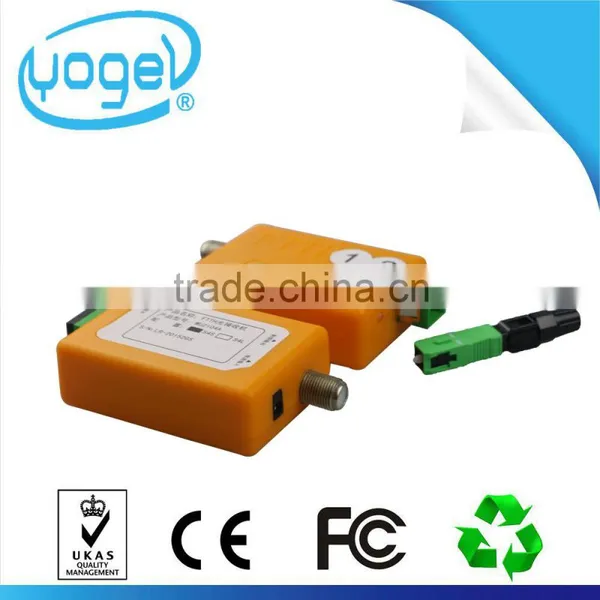

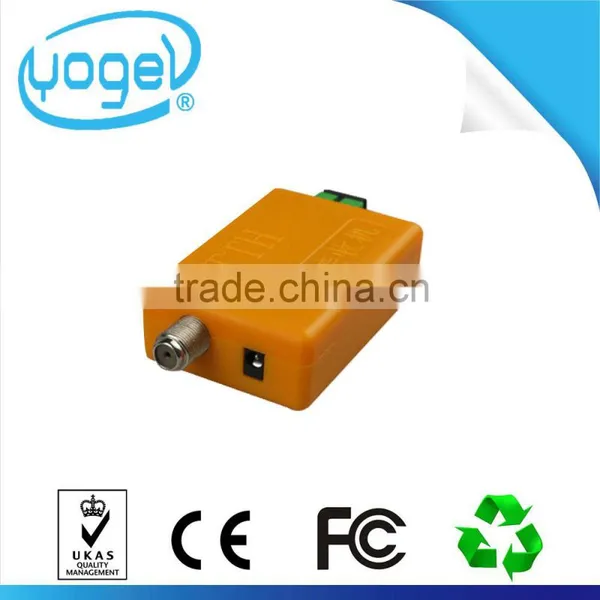

Cable CATV Mini Fiber Optical Receiver PC ABS plastic metal for FTTH with SC/APC Conector
FTTB optical receiver is specially designed for FTTB - Fiber to the building network structure.
Low consumption, high output level, small size, compact and reasonable internal circuit structure and excellent performance make it to be the first choice to build CATV FTTB network.
Main used to fiber to building network to simple the network structure, reduce the cost and optimize the signal quality.
Key Features:
1. Adopt low noise high sensitivity PIN Optical detector.
2.AGC control range0~-7dBm, output level unchanged, CTB and CSO unchanged basically.
3.EQ and ATT both use the professional electric control circuit, makes the control more accurate.
4.Work under the control of single-chip microcomputer. All parameters display digitally and easy for operation.
5. Small size and easy to install.
6. Built-in the national standard class network manager responder, support remote network management.
Specifications:
| product name | Mini Fiber Optical Receiver |
| wavelength | 1200-1600nm |
| conector | SC/APC |
| receive power range | -4~-12dBm |
| frequency range | 47-1000hz |
| input voltage | 220V |
| output voltage | 5V |
| faltness | +/- 1.5dB |
| normalized output lever | >65dBuV |
| power consumption | < 1.5VA |
| MER/W |
frequency -4dBm -8dBm -12dBm -13dBm
|
Packing:
1/carton box,or according to customer request
Shipping:
in7 days for Mini Fiber Optical Receiver
